MCP4822-E/MS Information
MCP4822-E/MS by Microchip Technology Inc is a Digital to Analog Converter.
Digital to Analog Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for MCP4822-E/MS
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
31K2973
|
Newark | Digital To Analog Converter Dac, 12 Bit, Msop-8, Resolution (Bits):12Bit, Sampling Rate:-, Input Channel Type:Serial, Supply Voltage Range:2.7V To 5.5V, Adc/Dac Case Style:Msop, No. Of Pins:8Pins, Data Interface:Spi Rohs Compliant: Yes |Microchip MCP4822-E/MS RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 182 |
|
$2.3300 | Buy Now |
|
DISTI #
98AC1706
|
Newark | Msop Dual 12-Bit Dac With Spi Interace And Internal Vref Rohs Compliant: Yes |Microchip MCP4822-E/MS RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 1 |
|
$3.0000 / $4.0500 | Buy Now |
|
DISTI #
MCP4822-E/MS
|
Avnet Americas | Digital to Analog Converter, 2 Channels, 12 bit, Voltage, Serial Microwire, SPI, 2.7 V to 5.5 V, 8 Pins, MSOP - Rail/Tube (Alt: MCP4822-E/MS) COO: Thailand RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 5 Weeks, 0 Days Container: Tube | 1 |
|
$2.8429 / $2.9952 | Buy Now |
|
DISTI #
31K2973
|
Avnet Americas | Digital to Analog Converter, 2 Channels, 12 bit, Voltage, Serial Microwire, SPI, 2.7 V to 5.5 V, 8 Pins, MSOP - Bulk (Alt: 31K2973) COO: Thailand RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Bulk | 182 Partner Stock |
|
$3.0000 / $3.9700 | Buy Now |
|
DISTI #
MCP4822-E/MS
|
Microchip Technology Inc | Voltage Out 12 bit DAC, DUAL channel with Internal Reference, MSOP, Projected EOL: 2034-06-15 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 5 Weeks, 0 Days Container: Tube | In Stock: 2395 and Alternates Available |
|
$2.8800 / $3.9700 | Buy Now |
|
DISTI #
70046903
|
RS | DUAL 12-BIT DAC WITH SPI INTERACE AND INTERNAL VREF, MSOP-8 Min Qty: 200 Package Multiple: 1 Lead time: 13 Weeks, 0 Days Container: Bulk | 0 |
|
$3.3700 / $3.9700 | RFQ |
|
|
Bristol Electronics | Min Qty: 2 | 8 |
|
$2.7664 / $4.2560 | Buy Now |
|
|
NAC | Dual 12-bit DAC with SPI interace and internal Vref. Package: 8 MSOP 3x3mm TUBE - MIXED SIGNAL PRODUCTS Product Line RoHS: Compliant Min Qty: 100 Package Multiple: 100 Container: Tube | 0 |
|
$3.1200 / $3.7600 | Buy Now |
|
DISTI #
MCP4822-E/MS
|
Avnet Silica | Digital to Analog Converter 2 Channels 12 bit Voltage Serial Microwire SPI 27 V to 55 V 8 Pins MSOP (Alt: MCP4822-E/MS) RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 7 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
MCP4822-E/MS
|
EBV Elektronik | Digital to Analog Converter 2 Channels 12 bit Voltage Serial Microwire SPI 27 V to 55 V 8 Pins MSOP (Alt: MCP4822-E/MS) RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 6 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
US Tariff Estimator: MCP4822-E/MS by Microchip Technology Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MCP4822-E/MS
MCP4822-E/MS CAD Models
-

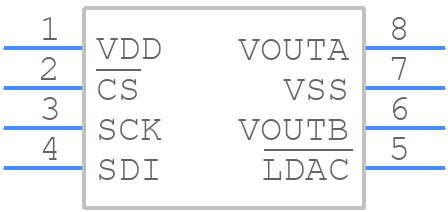

Part Symbol
-
Footprint
-

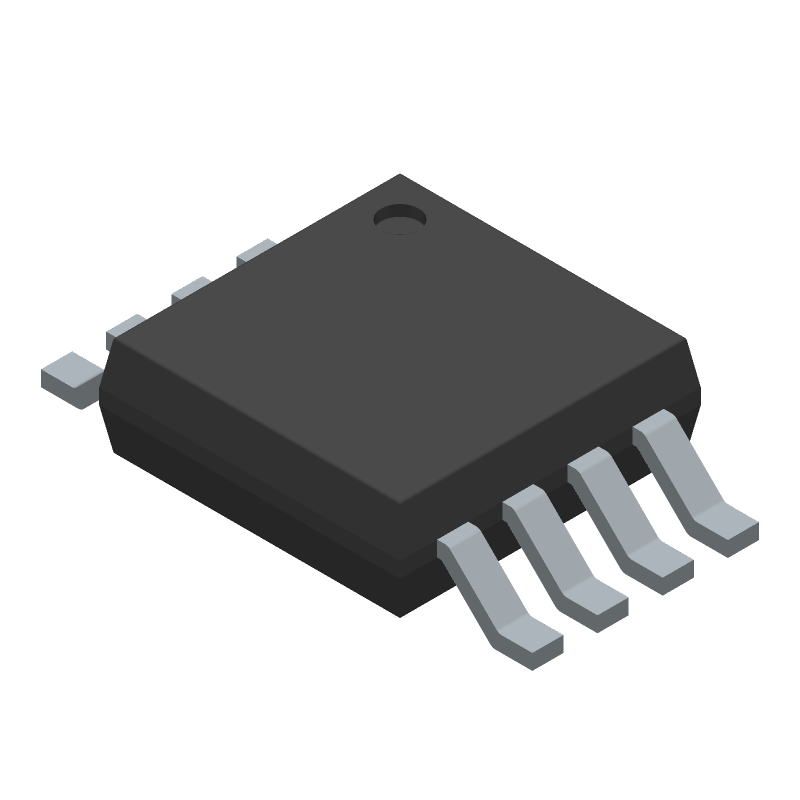

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
MCP4822-E/MS Part Data Attributes
|
|
MCP4822-E/MS
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
MCP4822-E/MS
Microchip Technology Inc
Voltage Out 12 bit DAC, DUAL channel with Internal Reference
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | MSOP | |
| Package Description | Sop, Sop8,.19 | |
| Pin Count | 8 | |
| Manufacturer Package Code | MSOP-8 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 5 Weeks | |
| Analog Output Voltage-Max | 4.176 V | |
| Analog Output Voltage-Min | ||
| Converter Type | D/A Converter | |
| Input Bit Code | BINARY | |
| Input Format | Serial | |
| JESD-30 Code | S-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 3 Mm | |
| Linearity Error-Max (EL) | 0.293% | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 12 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.19 | |
| Package Shape | Square | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Screening Level | Ts 16949 | |
| Seated Height-Max | 1.1 Mm | |
| Settling Time-Nom (tstl) | 4.5 µS | |
| Supply Current-Max | 0.75 Ma | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | Yes | |
| Temperature Grade | Automotive | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Width | 3 Mm |
Alternate Parts for MCP4822-E/MS
This table gives cross-reference parts and alternative options found for MCP4822-E/MS. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MCP4822-E/MS, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MCP4822T-E/MS | Microchip Technology Inc | $2.1299 | Voltage Out 12 bit DAC, DUAL channel with Internal Reference | MCP4822-E/MS vs MCP4822T-E/MS |
| MCP4822-E/SN | Microchip Technology Inc | $3.1771 | Voltage Out 12 bit DAC, DUAL channel with Internal Reference | MCP4822-E/MS vs MCP4822-E/SN |
| MCP4822-E/SNVAO | Microchip Technology Inc | Check for Price | Voltage Out 12 bit DAC, DUAL channel with Internal Reference | MCP4822-E/MS vs MCP4822-E/SNVAO |
MCP4822-E/MS Frequently Asked Questions (FAQ)
-
The maximum output current of the MCP4822-E/MS is 25 mA per channel.
-
To ensure accurate voltage output, make sure to use a stable reference voltage, minimize noise on the power supply lines, and use a low-pass filter to remove high-frequency noise from the output.
-
The settling time of the MCP4822-E/MS is typically around 10 μs, but this can vary depending on the output voltage, load capacitance, and other factors.
-
Yes, the MCP4822-E/MS can be used as either a unipolar or bipolar voltage source, depending on the configuration of the output stage and the reference voltage.
-
To protect the MCP4822-E/MS from overvoltage or undervoltage conditions, use voltage regulators or overvoltage protection circuits to ensure that the supply voltage remains within the recommended operating range.
