MCP6002T-E/SN by: Microchip Technology Inc

Dual 1.8V, 1MHz OP

Part Details for MCP6002T-E/SN by Microchip Technology Inc

Results Overview of MCP6002T-E/SN by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Internet of Things (IoT) Computing and Data Storage Aerospace and Defense Healthcare Telecommunications Automotive

MCP6002T-E/SN Information

MCP6002T-E/SN by Microchip Technology Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.

Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.

Price & Stock for MCP6002T-E/SN

Part # Distributor Description Stock Price Buy
DISTI # 22AC3133
Newark Op-Amp, 1Mhz, 0.6V/Us, Soic-8, No. Of Amplifiers:2 Amplifier, Bandwidth:1Mhz, Slew Rate:0.6V/Μs, Supply Voltage Range:1.8V To 6V, Amplifier Case Style:Soic, No. Of Pins:8Pins, Operating Temperature Min:-40°C, Operating Temperature Rohs Compliant: Yes |Microchip MCP6002T-E/SN RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 16291
  • 1 $0.4400
  • 10 $0.4050
  • 25 $0.3700
  • 50 $0.3500
  • 100 $0.3300
$0.3300 / $0.4400 Buy Now
DISTI # 18AC7461
Newark Op-Amp, 1Mhz, 0.6V/Us, Soic-8, No. Of Amplifiers:2 Amplifier, Bandwidth:1Mhz, Slew Rate:0.6V/Μs, Supply Voltage Range:1.8V To 6V, Amplifier Case Style:Soic, No. Of Pins:8Pins, Operating Temperature Min:-40°C, Operating Temperature Rohs Compliant: Yes |Microchip MCP6002T-E/SN RoHS: Compliant Min Qty: 3300 Package Multiple: 1 Date Code: 1 Container: Reel 0
  • 1 $0.3300
$0.3300 Buy Now
DISTI # MCP6002T-E/SN
Avnet Americas OP Amp Dual GP R-R I/O 6V 8-Pin SOIC N T/R - Tape and Reel (Alt: MCP6002T-E/SN) COO: Thailand RoHS: Compliant Min Qty: 3300 Package Multiple: 3300 Lead time: 4 Weeks, 0 Days Container: Reel 0
  • 3,300 $0.3540
  • 6,600 $0.3510
  • 13,200 $0.3480
  • 26,400 $0.3449
  • 52,800 $0.3420
$0.3420 / $0.3540 Buy Now
DISTI # MCP6002T-E/SN
Microchip Technology Inc Dual 1.8V, 1MHz OP, SOIC, Projected EOL: 2035-11-06 COO: Taiwan, Thailand ECCN: EAR99 RoHS: Compliant Lead time: 2 Weeks, 0 Days Container: Reel In Stock: 25736 and Alternates Available
  • 1 $0.4400
  • 25 $0.3700
  • 100 $0.3300
$0.3300 / $0.4400 Buy Now
DISTI # 70451863
RS DUAL 1.8V, 1MHZ OP, E TEMP8 SOIC 3.90MM(.150IN) T/R Min Qty: 3300 Package Multiple: 1 Lead time: 38 Weeks, 0 Days Container: Bulk 0
  • 3,300 $0.4270
  • 6,600 $0.4060
  • 9,900 $0.3840
  • 13,200 $0.3630
$0.3630 / $0.4270 RFQ
Bristol Electronics   27378
RFQ
DISTI # MCP6002T-E/SN
TME IC: operational amplifier, 1MHz, Ch: 2, SO8, 1.8÷6VDC, reel,tape Min Qty: 1 0
  • 1 $0.7400
  • 25 $0.5000
  • 100 $0.4500
  • 500 $0.3900
  • 3,300 $0.3400
  • 6,600 $0.3260
$0.3260 / $0.7400 RFQ
DISTI # MCP6002T-E/SN
IBS Electronics MCP6002 SERIES 1.8 TO 6 V 1 MHZ SMT RAIL TO RAIL DUAL OP AMP - SOIC-8 Min Qty: 3300 Package Multiple: 1 6600
  • 3,300 $0.4508
  • 6,600 $0.4486
  • 9,900 $0.4463
  • 13,200 $0.4441
  • 16,500 $0.4418
$0.4418 / $0.4508 Buy Now
NAC Dual 1.8V, 1MHz OP, E temp. Package: 8 SOIC 3.90mm(.150in) T/R - LINEAR PRODUCTS Product Line RoHS: Compliant Min Qty: 3300 Package Multiple: 3300 0
  • 1 $0.4600
  • 100 $0.4200
  • 500 $0.3800
  • 1,000 $0.3700
$0.3700 / $0.4600 Buy Now
DISTI # MCP6002T-E/SN
Avnet Silica OP Amp Dual GP RR IO 6V 8Pin SOIC N TR (Alt: MCP6002T-E/SN) RoHS: Compliant Min Qty: 3300 Package Multiple: 3300 Lead time: 6 Weeks, 0 Days Silica - 0
Buy Now
Chip Stock ICOPAMPGP2CIRCUIT8SOICGeneralPurposeAmplifier2CircuitRail-to-Rail8-SOIC 227500
RFQ
DISTI # MCP6002T-E/SN
EBV Elektronik OP Amp Dual GP RR IO 6V 8Pin SOIC N TR (Alt: MCP6002T-E/SN) RoHS: Compliant Min Qty: 3300 Package Multiple: 3300 Lead time: 5 Weeks, 0 Days EBV - 0
Buy Now
Win Source Electronics IC OPAMP GP 1MHZ RRO 8SOIC 215000
  • 175 $0.3315
  • 375 $0.3102
  • 580 $0.2995
  • 835 $0.2781
  • 1,080 $0.2674
  • 1,355 $0.2566
$0.2566 / $0.3315 Buy Now

US Tariff Estimator: MCP6002T-E/SN by Microchip Technology Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

MCP6002T-E/SN
Microchip Technology Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for MCP6002T-E/SN

MCP6002T-E/SN CAD Models

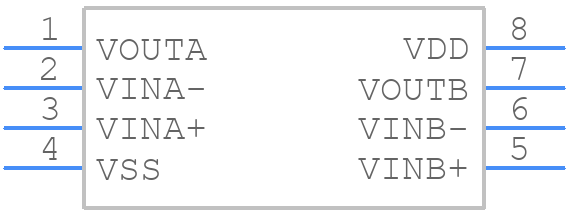

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MCP6002T-E/SN Part Data Attributes

Parametric Data
MCP6002T-E/SN Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
MCP6002T-E/SN Microchip Technology Inc Dual 1.8V, 1MHz OP
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Part Package Code SOIC
Package Description 3.90 Mm, Plastic, Soic-8
Pin Count 8
Manufacturer Package Code SOIC-8
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8542.33.00.01
Factory Lead Time 2 Weeks
Amplifier Type Operational Amplifier
Architecture Voltage-Feedback
Common-mode Reject Ratio-Min 60 Db
Common-mode Reject Ratio-Nom 76 Db
Frequency Compensation Yes
Input Offset Voltage-Max 4500 µV
JESD-30 Code R-PDSO-G8
JESD-609 Code e3
Length 4.9 Mm
Low-Bias No
Low-Offset No
Micropower Yes
Moisture Sensitivity Level 1
Number of Functions 2
Number of Terminals 8
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Package Body Material Plastic/Epoxy
Package Code SOP
Package Equivalence Code SOP8,.25
Package Shape Rectangular
Package Style Small Outline
Packing Method Tape And Reel
Peak Reflow Temperature (Cel) 260
Power No
Programmable Power No
Qualification Status Not Qualified
Seated Height-Max 1.75 Mm
Slew Rate-Nom 0.6 V/Us
Supply Current-Max 0.34 Ma
Supply Voltage Limit-Max 7 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount Yes
Technology Cmos
Temperature Grade Automotive
Terminal Finish Matte Tin (Sn)
Terminal Form Gull Wing
Terminal Pitch 1.27 Mm
Terminal Position Dual
Unity Gain BW-Nom 1000
Voltage Gain-Min 25118.86
Wideband No
Width 3.9 Mm

Alternate Parts for MCP6002T-E/SN

This table gives cross-reference parts and alternative options found for MCP6002T-E/SN. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MCP6002T-E/SN, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MCP6002-I/MS Microchip Technology Inc $0.3078 Dual 1.8V, 1MHz OP, I temp MCP6002T-E/SN vs MCP6002-I/MS
MCP6002T-I/MS Microchip Technology Inc $0.3389 Dual 1.8V, 1MHz OP, I temp MCP6002T-E/SN vs MCP6002T-I/MS
MCP6002T-E/MS Microchip Technology Inc $0.3472 Dual 1.8V, 1MHz OP MCP6002T-E/SN vs MCP6002T-E/MS
MCP6002-I/P Microchip Technology Inc $0.3616 Dual 1.8V, 1MHz OP, I temp MCP6002T-E/SN vs MCP6002-I/P
MCP6002T-E/MC Microchip Technology Inc $0.3883 Dual 1.8V, 1MHz OP, E temp MCP6002T-E/SN vs MCP6002T-E/MC
MCP6002-I/SNVAO Microchip Technology Inc Check for Price Dual 1.8V, 1MHz OP, I temp MCP6002T-E/SN vs MCP6002-I/SNVAO
MCP6002T-I/SNVAO Microchip Technology Inc Check for Price Dual 1.8V, 1MHz OP, I temp MCP6002T-E/SN vs MCP6002T-I/SNVAO
MCP6002-E/MSVAO Microchip Technology Inc Check for Price Dual 1.8V, 1 MHz op MCP6002T-E/SN vs MCP6002-E/MSVAO
MCP6002T-E/SNVAO Microchip Technology Inc Check for Price Dual 1.8V, 1MHz OP MCP6002T-E/SN vs MCP6002T-E/SNVAO
MCP6002T-I/MSVAO Microchip Technology Inc Check for Price APG STANDARD MCP6002T-E/SN vs MCP6002T-I/MSVAO
equivalents icon

MCP6002T-E/SN Related Parts

MCP6002T-E/SN Frequently Asked Questions (FAQ)

  • The maximum power dissipation of the MCP6002T-E/SN is 670 mW, which is calculated based on the package thermal resistance and the maximum junction temperature.

  • To ensure stability in a unity-gain buffer configuration, add a capacitor (typically 10-100 pF) between the output and the inverting input to compensate for the op-amp's internal capacitance and prevent oscillations.

  • To minimize noise and EMI, use a star-ground configuration, keep the input and output traces short and away from each other, and use a ground plane to shield the op-amp and its connections.

  • The MCP6002T-E/SN is rated for operation up to 125°C, but its performance may degrade at high temperatures. Ensure that the device is properly heat-sinked and follow the recommended thermal management guidelines.

  • Use proper ESD handling procedures, such as wearing an anti-static wrist strap, using an anti-static mat, and storing the devices in anti-static packaging to prevent damage from electrostatic discharge.
