Part Details for MCP73833-NVI/MF by Microchip Technology Inc
Results Overview of MCP73833-NVI/MF by Microchip Technology Inc
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
MCP73833-NVI/MF Information
MCP73833-NVI/MF by Microchip Technology Inc is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MCP73833-NVI/MF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
88K5669
|
Newark | Ic, battery Management, llcc,10Pin, plastic Rohs Compliant: Yes |Microchip MCP73833-NVI/MF RoHS: Compliant Min Qty: 480 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.9330 | Buy Now |
|
DISTI #
MCP73833-NVI/MF
|
Avnet Americas | Linear Charge Management Controller Li-Ion/Li-Pol 1mA 4.2V/4.35V/4.4V/4.5V 10-Pin DFN EP Tube - Rail/Tube (Alt: MCP73833-NVI/MF) COO: China RoHS: Compliant Min Qty: 360 Package Multiple: 120 Lead time: 7 Weeks, 0 Days Container: Tube | 0 |
|
$0.9375 / $1.0714 | Buy Now |
|
DISTI #
MCP73833-NVI/MF
|
Microchip Technology Inc | 1A Advanced Single Cell, Fully Integrated Li-Ion/Polymer Charge Management Contr, DFN, Projected EOL: 2035-09-05 COO: Malaysia, Thailand ECCN: EAR99 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Tube | In Stock: 8500 and Alternates Available |
|
$0.8300 / $1.1400 | Buy Now |
|
DISTI #
70453309
|
RS | 1A LI-ION/LI-POLY CHARGE MGMT CONTROLLER, PG OUTPUT10 DFN 3X3X0.9MM TUBE Min Qty: 1 Package Multiple: 1 Lead time: 3 Weeks, 0 Days Container: Bulk | 3 |
|
$0.4700 | Buy Now |
|
DISTI #
MCP73833-NVI/MF
|
TME | IC: PMIC, battery charging controller, Iout: 1A, 4.35V, DFN10, tube Min Qty: 1 | 0 |
|
$0.8500 / $1.3400 | RFQ |
|
|
NAC | 1A Li-Ion/Li-Poly Charge mgmt controller, PG output. Package: 10 DFN 3x3x0.9mm TUBE - POWER ANALOG Product Line RoHS: Compliant Min Qty: 360 Package Multiple: 120 Container: Tube | 0 |
|
$0.9400 / $1.1500 | Buy Now |
|
DISTI #
MCP73833-NVI/MF
|
Avnet Silica | Linear Charge Management Controller LiIonLiPol 1mA 42V435V44V45V 10Pin DFN EP Tube (Alt: MCP73833-NVI/MF) RoHS: Compliant Min Qty: 360 Package Multiple: 120 Lead time: 6 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
MCP73833-NVI/MF
|
EBV Elektronik | Linear Charge Management Controller LiIonLiPol 1mA 42V435V44V45V 10Pin DFN EP Tube (Alt: MCP73833-NVI/MF) RoHS: Compliant Min Qty: 360 Package Multiple: 120 Lead time: 5 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
LCSC | 3.75V6V Lithium Battery 1 1A DFN-10(3x3) Battery Chargers ICs RoHS | 20 |
|
$1.7757 / $1.8766 | Buy Now |
US Tariff Estimator: MCP73833-NVI/MF by Microchip Technology Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MCP73833-NVI/MF
MCP73833-NVI/MF CAD Models
-

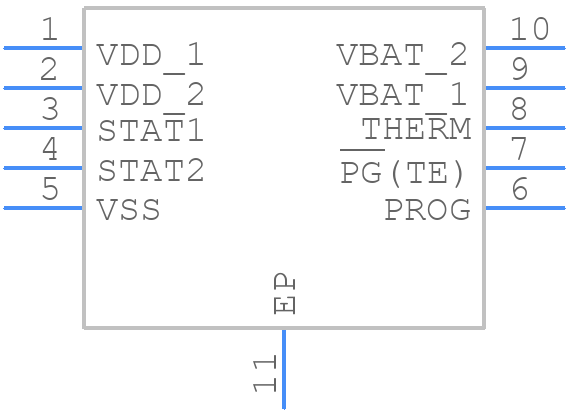

Part Symbol
-
Footprint
-

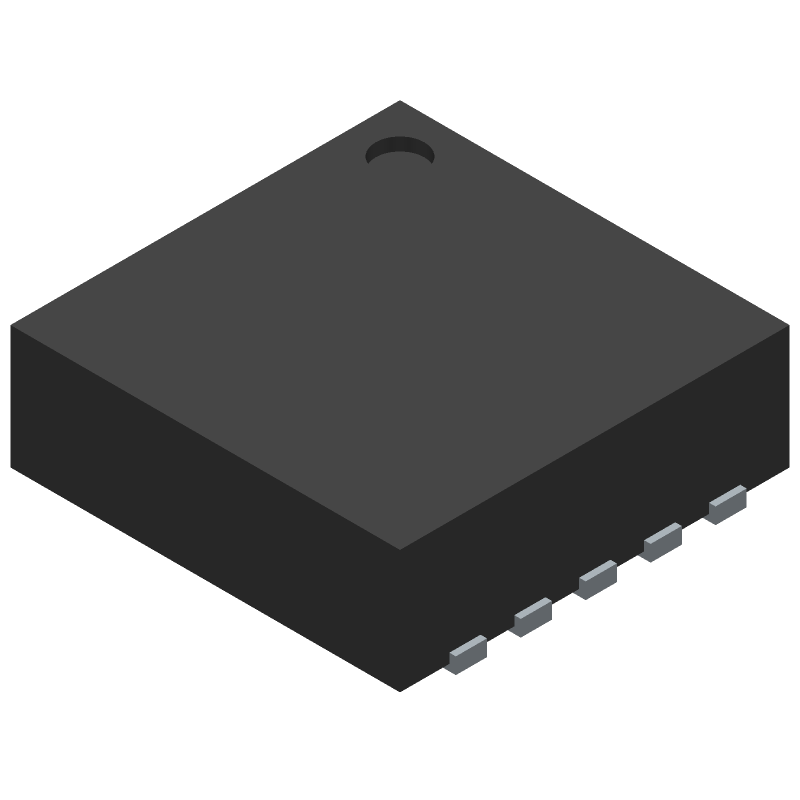

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
MCP73833-NVI/MF Part Data Attributes
|
|
MCP73833-NVI/MF
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
MCP73833-NVI/MF
Microchip Technology Inc
1A Advanced Single Cell, Fully Integrated Li-Ion/Polymer Charge Management Contr
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | DFN | |
| Package Description | Hvson, Solcc10,.12,20 | |
| Pin Count | 10 | |
| Manufacturer Package Code | DFN-10 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 6 Weeks | |
| Adjustable Threshold | Yes | |
| Analog IC - Other Type | Linear Battery Charger | |
| JESD-30 Code | S-PDSO-N10 | |
| JESD-609 Code | e3 | |
| Length | 3 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 10 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | HVSON | |
| Package Equivalence Code | SOLCC10,.12,20 | |
| Package Shape | Square | |
| Package Style | Small Outline, Heat Sink/Slug, Very Thin Profile | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Screening Level | Ts 16949 | |
| Seated Height-Max | 1 Mm | |
| Supply Current-Max (Isup) | 3 Ma | |
| Supply Voltage-Max (Vsup) | 6 V | |
| Supply Voltage-Min (Vsup) | 3.75 V | |
| Supply Voltage-Nom (Vsup) | 5.2 V | |
| Surface Mount | Yes | |
| Temperature Grade | Industrial | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | No Lead | |
| Terminal Pitch | 0.5 Mm | |
| Terminal Position | Dual | |
| Width | 3 Mm |
Alternate Parts for MCP73833-NVI/MF
This table gives cross-reference parts and alternative options found for MCP73833-NVI/MF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MCP73833-NVI/MF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MCP73834-CNI/MF | Microchip Technology Inc | $0.9545 | Single Cell Li-Ion/Li-Polymer Charge Mgmt. Controller | MCP73833-NVI/MF vs MCP73834-CNI/MF |
| MCP73834-FCI/UN | Microchip Technology Inc | $0.9652 | 1A ADVANCED SINGLE CELL, FULLY INTEGRATED LI-ION/POLYMER CHARGE MANAGEMENT CONTR | MCP73833-NVI/MF vs MCP73834-FCI/UN |
| MCP73833T-NVI/MF | Microchip Technology Inc | $1.0000 | 1A Advanced Single Cell, Fully Integrated Li-Ion/Polymer Charge Management Contr | MCP73833-NVI/MF vs MCP73833T-NVI/MF |
| MCP73833T-CNI/UN | Microchip Technology Inc | $1.1980 | Single Cell Li-Ion/Li-Polymer Charge Mgmmt. Controller | MCP73833-NVI/MF vs MCP73833T-CNI/UN |
| MCP73833T-BZI/UN | Microchip Technology Inc | $1.1980 | 1A ADVANCED SINGLE CELL, FULLY INTEGRATED LI-ION POLYMER CHANGE MANAGEMENT CONTR | MCP73833-NVI/MF vs MCP73833T-BZI/UN |
| MCP73834T-B6I/UN | Microchip Technology Inc | Check for Price | Single Cell Li-Ion/Li-Polymer Charge Mgmmt. Controller | MCP73833-NVI/MF vs MCP73834T-B6I/UN |
| MCP73834-B6I/MF | Microchip Technology Inc | Check for Price | Single Cell Li-Ion/Li-Polymer Charge Mgmmt. Controller | MCP73833-NVI/MF vs MCP73834-B6I/MF |
| MCP73833-B6I/MF | Microchip Technology Inc | Check for Price | Single Cell Li-Ion/Li-Polymer Charge Mgmt. Controller | MCP73833-NVI/MF vs MCP73833-B6I/MF |
| MCP73833T-B6I/MF | Microchip Technology Inc | Check for Price | Single Cell Li-Ion/Li-Polymer Charge Mgmt. Controller | MCP73833-NVI/MF vs MCP73833T-B6I/MF |
| MCP73833-6SI/UN | Microchip Technology Inc | Check for Price | 1A Advanced Single Cell, Fully Integrated Li-Ion/Polymer Charge Management Contr | MCP73833-NVI/MF vs MCP73833-6SI/UN |
MCP73833-NVI/MF Frequently Asked Questions (FAQ)
-
The maximum charging current that the MCP73833 can handle is 1.5A, but it can be limited to a lower value by using an external resistor.
-
The MCP73833 has a built-in over-charge protection feature that prevents the battery from being overcharged. It does this by monitoring the battery voltage and temperature, and terminating the charge cycle when the battery is fully charged.
-
Yes, the MCP73833 can be used for charging multiple batteries in parallel, but it requires an external circuit to balance the charge between the batteries.
-
The EN (Enable) pin on the MCP73833 is used to enable or disable the charging function. When the EN pin is high, the charging function is enabled, and when it is low, the charging function is disabled.
-
The MCP73833 has a built-in thermistor input that allows it to monitor the battery temperature. It uses this information to adjust the charging current and prevent overheating or overcooling of the battery.
