Part Details for MCP73833T-FCI/MF by Microchip Technology Inc
Results Overview of MCP73833T-FCI/MF by Microchip Technology Inc
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (1 replacement)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
MCP73833T-FCI/MF Information
MCP73833T-FCI/MF by Microchip Technology Inc is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| 8655MH3701BKLF | Amphenol Communications Solutions | DSUB METAL HOOD ECOSERIE-DTZK37-FCI-BULK-100 | |
| 8655MH1502BKLF | Amphenol Communications Solutions | D-SUB METAL HOODS-DTZK15-FCI-M3-BULK/100 | |
| 8655MHRA5001KLF | Amphenol Communications Solutions | D-SUB METAL HOOD-RA EXIT-DVZK50-FCI-K |
Price & Stock for MCP73833T-FCI/MF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
57AC2514
|
Newark | Battery Charger, Li-Ion/Pol, 1A, Dfn-10, Battery Type:Li-Ion, Li-Pol, Input Voltage:6V, Battery Charge Voltage:4.2V, Charge Current Max:1A, Battery Ic Case Style:Dfn, No. Of Pins:10Pins, No. Of Series Cells:1, Operating Temperature Rohs Compliant: Yes |Microchip MCP73833T-FCI/MF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 5071 |
|
$0.8800 / $1.1400 | Buy Now |
|
DISTI #
88K5673
|
Newark | Ic, battery Management, llcc,10Pin, plastic Rohs Compliant: Yes |Microchip MCP73833T-FCI/MF RoHS: Compliant Min Qty: 3300 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.9070 | Buy Now |
|
DISTI #
MCP73833T-FCI/MF
|
Avnet Americas | Battery Charger, 1 Cell of Li-Ion, Li-Pol Battery, 6V Input, 4.2V/1A Charge, DFN-10 - Tape and Reel (Alt: MCP73833T-FCI/MF) COO: Thailand RoHS: Compliant Min Qty: 3300 Package Multiple: 3300 Lead time: 6 Weeks, 0 Days Container: Reel | 0 |
|
$0.9375 / $1.0714 | Buy Now |
|
DISTI #
MCP73833T-FCI/MF
|
Microchip Technology Inc | 1A ADVANCED SINGLE CELL, FULLY INTEGRATED LI-ION/POLYMER CHARGE MANAGEMENT CONTR, DFN, Projected EOL: 2035-09-05 COO: Malaysia, Thailand ECCN: EAR99 RoHS: Compliant Lead time: 4 Weeks, 0 Days Container: Reel | In Stock: 2940 and Alternates Available |
|
$0.8300 / $1.1400 | Buy Now |
|
DISTI #
70452163
|
RS | 1A LI-ION/LI-POLY CHARGE MGMT CONTROLLER, PG OUTPUT10 DFN 3X3X0.9MM T/R Min Qty: 3300 Package Multiple: 1 Lead time: 18 Weeks, 0 Days Container: Bulk | 0 |
|
$1.0900 | RFQ |
|
DISTI #
MCP73833T-FCI/MF
|
IBS Electronics | LINEAR BATTERY CHARGER CONTROLLER LI-ION/LI-POL 1000MA 4.2V 10-PIN DFN EP T/R Min Qty: 250 Package Multiple: 1 | 10592 |
|
$0.9506 / $1.0122 | Buy Now |
|
|
NAC | 1A Li-Ion/Li-Poly Charge mgmt controller, PG output. Package: 10 DFN 3x3x0.9mm T/R - POWER ANALOG Product Line RoHS: Compliant Min Qty: 3300 Package Multiple: 3300 | 0 |
|
$0.9400 / $1.1500 | Buy Now |
|
DISTI #
MCP73833T-FCI/MF
|
Avnet Silica | Battery Charger 1 Cell of LiIon LiPol Battery 6V Input 42V1A Charge DFN10 (Alt: MCP73833T-FCI/MF) RoHS: Compliant Min Qty: 3300 Package Multiple: 3300 Lead time: 8 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
|
Chip Stock | LinearBatteryChargerControllerLi-Ion/Li-Pol1000mA4.2V10-PinDFNEPT/R | 33928 |
|
RFQ | |
|
DISTI #
MCP73833T-FCI/MF
|
EBV Elektronik | Battery Charger 1 Cell of LiIon LiPol Battery 6V Input 42V1A Charge DFN10 (Alt: MCP73833T-FCI/MF) RoHS: Compliant Min Qty: 3300 Package Multiple: 3300 Lead time: 7 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
US Tariff Estimator: MCP73833T-FCI/MF by Microchip Technology Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MCP73833T-FCI/MF
MCP73833T-FCI/MF CAD Models
-

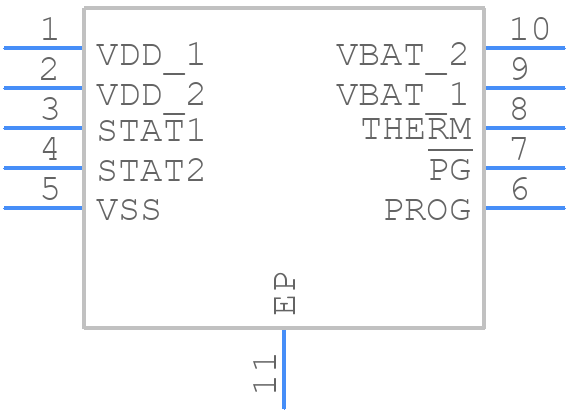

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
MCP73833T-FCI/MF Part Data Attributes
|
|
MCP73833T-FCI/MF
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
MCP73833T-FCI/MF
Microchip Technology Inc
1A ADVANCED SINGLE CELL, FULLY INTEGRATED LI-ION/POLYMER CHARGE MANAGEMENT CONTR
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | DFN | |
| Package Description | Vson, Solcc10,.12,20 | |
| Pin Count | 10 | |
| Manufacturer Package Code | DFN-10 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 4 Weeks | |
| Adjustable Threshold | Yes | |
| Analog IC - Other Type | Linear Battery Charger | |
| JESD-30 Code | S-PDSO-N10 | |
| JESD-609 Code | e3 | |
| Length | 3 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 10 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | VSON | |
| Package Equivalence Code | SOLCC10,.12,20 | |
| Package Shape | Square | |
| Package Style | Small Outline, Heat Sink/Slug, Very Thin Profile | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Screening Level | Ts 16949 | |
| Seated Height-Max | 1 Mm | |
| Supply Current-Max (Isup) | 3 Ma | |
| Supply Voltage-Max (Vsup) | 6 V | |
| Supply Voltage-Min (Vsup) | 3.75 V | |
| Supply Voltage-Nom (Vsup) | 5.2 V | |
| Surface Mount | Yes | |
| Temperature Grade | Industrial | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | No Lead | |
| Terminal Pitch | 0.5 Mm | |
| Terminal Position | Dual | |
| Width | 3 Mm |
Alternate Parts for MCP73833T-FCI/MF
This table gives cross-reference parts and alternative options found for MCP73833T-FCI/MF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MCP73833T-FCI/MF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MCP73833-FCI/MF | Microchip Technology Inc | $0.9749 | 1A ADVANCED SINGLE CELL, FULLY INTEGRATED LI-ION/POLYMER CHARGE MANAGEMENT CONTR | MCP73833T-FCI/MF vs MCP73833-FCI/MF |
MCP73833T-FCI/MF Frequently Asked Questions (FAQ)
-
The maximum charging current that the MCP73833T-FCI/MF can handle is 1.5A, but it can be adjusted using an external resistor.
-
The MCP73833T-FCI/MF has a built-in overcharge protection circuit that prevents the battery from being overcharged. It does this by monitoring the battery voltage and current, and terminating the charge cycle when the battery is fully charged.
-
Yes, the MCP73833T-FCI/MF can be used for charging multiple batteries in parallel, but it's recommended to use a separate charger for each battery to ensure safe and efficient charging.
-
The operating temperature range of the MCP73833T-FCI/MF is -40°C to +85°C.
-
The MCP73833T-FCI/MF has a built-in short-circuit protection circuit that detects and responds to short-circuit conditions by limiting the output current and preventing damage to the device.
