Part Details for MCP73871-2AAI/ML by Microchip Technology Inc
Results Overview of MCP73871-2AAI/ML by Microchip Technology Inc
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (1 replacement)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Internet of Things (IoT)
Smart Cities
MCP73871-2AAI/ML Information
MCP73871-2AAI/ML by Microchip Technology Inc is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MCP73871-2AAI/ML
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
09P4000
|
Newark | Ic, Battery Management Cont., Qfn20, Battery Type:Li-Ion, Li-Pol, Input Voltage:6V, Battery Charge Voltage:4.5V, Charge Current Max:1A, Battery Ic Case Style:Qfn, No. Of Pins:20Pins, No. Of Series Cells:1, Operating Temperature Rohs Compliant: Yes |Microchip MCP73871-2AAI/ML RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 175 |
|
$1.8200 / $2.4100 | Buy Now |
|
DISTI #
MCP73871-2AAI/ML
|
Avnet Americas | Battery Charger Li-Ion/Li-Pol 50mA to 1000mA 4.2V 20-Pin QFN EP Tube - Rail/Tube (Alt: MCP73871-2AAI/ML) COO: Thailand RoHS: Compliant Min Qty: 182 Package Multiple: 91 Lead time: 6 Weeks, 0 Days Container: Tube | 0 |
|
$1.9375 / $2.2143 | Buy Now |
|
DISTI #
MCP73871-2AAI/ML
|
Microchip Technology Inc | Fully-Integrated Single Cell Lithium-Ion/Lithium-Polymer Charge Management Contr, QFN, Projected EOL: 2034-07-17 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 8 Weeks, 0 Days Container: Tube | In Stock: 2933 and Alternates Available |
|
$1.7300 / $2.4100 | Buy Now |
|
DISTI #
70046832
|
RS | MICROCHIP MCP73871-2AAI/ML, BATTERY CHARGE CONTROLLER, 1000MA, 20-PIN QFN Min Qty: 273 Package Multiple: 1 Lead time: 52 Weeks, 0 Days Container: Bulk | 0 |
|
$2.4400 | RFQ |
|
|
Bristol Electronics | Min Qty: 2 | 3 |
|
$2.9120 | Buy Now |
|
|
Rochester Electronics | Adjustable, 1 Channel, +4.2V, PQCC20 RoHS: Compliant Status: Active Min Qty: 1 | 6 |
|
$1.6200 / $2.0300 | Buy Now |
|
DISTI #
MCP73871-2AAI
|
TME | IC: PMIC, battery charging controller, 4.2V, 1 x Li-Ion / Li-Po Min Qty: 1 | 0 |
|
$2.0500 / $2.5600 | RFQ |
|
DISTI #
MCP73871-2AAI/ML
|
IBS Electronics | BATTERY CHARGER LI-ION/LI-POL 50MA TO 1000MA 4.2V 20-PIN QFN EP TUBE Min Qty: 5 Package Multiple: 1 | 0 |
|
$2.6180 / $2.8280 | Buy Now |
|
|
NAC | USB/AC Battery Charger with Power Path Management. Package: 20 QFN 4x4x0.9mm TUBE - POWER ANALOG Product Line RoHS: Compliant Min Qty: 182 Package Multiple: 91 Container: Tube | 0 |
|
$1.9400 / $2.3800 | Buy Now |
|
DISTI #
MCP73871-2AAI/ML
|
Avnet Silica | Battery Charger LiIonLiPol 50mA to 1000mA 42V 20Pin QFN EP Tube (Alt: MCP73871-2AAI/ML) RoHS: Compliant Min Qty: 182 Package Multiple: 91 Lead time: 8 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
US Tariff Estimator: MCP73871-2AAI/ML by Microchip Technology Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MCP73871-2AAI/ML
MCP73871-2AAI/ML CAD Models
-

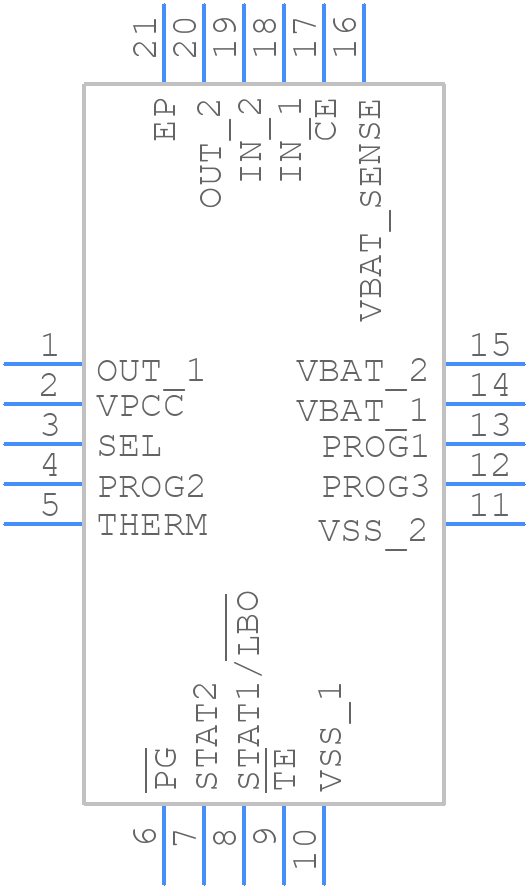

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
MCP73871-2AAI/ML Part Data Attributes
|
|
MCP73871-2AAI/ML
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
MCP73871-2AAI/ML
Microchip Technology Inc
Fully-Integrated Single Cell Lithium-Ion/Lithium-Polymer Charge Management Contr
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | QFN | |
| Package Description | Hvqccn, Lcc20,.16sq,20 | |
| Pin Count | 20 | |
| Manufacturer Package Code | QFN-20 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 8 Weeks | |
| Adjustable Threshold | Yes | |
| Analog IC - Other Type | Linear Battery Charger | |
| JESD-30 Code | S-PQCC-N20 | |
| JESD-609 Code | e3 | |
| Length | 4 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 20 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC20,.16SQ,20 | |
| Package Shape | Square | |
| Package Style | Chip Carrier, Heat Sink/Slug, Very Thin Profile | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1 Mm | |
| Supply Current-Max (Isup) | 3.75 Ma | |
| Supply Voltage-Max (Vsup) | 6 V | |
| Supply Voltage-Min (Vsup) | 4.479 V | |
| Supply Voltage-Nom (Vsup) | 5.2 V | |
| Surface Mount | Yes | |
| Temperature Grade | Industrial | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | No Lead | |
| Terminal Pitch | 0.5 Mm | |
| Terminal Position | Quad | |
| Threshold Voltage-Nom | +4.2v | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Width | 4 Mm |
Alternate Parts for MCP73871-2AAI/ML
This table gives cross-reference parts and alternative options found for MCP73871-2AAI/ML. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MCP73871-2AAI/ML, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MCP73871T-2AAI/ML | Microchip Technology Inc | $2.2850 | Fully-Integrated Single Cell Lithium-Ion/Lithium-Polymer Charge Management Contr | MCP73871-2AAI/ML vs MCP73871T-2AAI/ML |
MCP73871-2AAI/ML Frequently Asked Questions (FAQ)
-
The maximum charging current that the MCP73871-2AAI/ML can handle is 1.5A.
-
The MCP73871-2AAI/ML has a built-in overcharge protection feature that prevents the battery from being overcharged. It does this by monitoring the battery voltage and current, and automatically reducing the charge current when the battery is fully charged.
-
Yes, the MCP73871-2AAI/ML can be used for charging lithium-ion batteries with different capacities. The device has a programmable charge current and voltage, allowing it to be used with batteries of various capacities.
-
The MCP73871-2AAI/ML has a built-in thermal regulation feature that prevents the device from overheating. It does this by monitoring the device temperature and reducing the charge current when the temperature exceeds a certain threshold.
-
Yes, the MCP73871-2AAI/ML is compatible with USB-C power delivery (PD) specifications, allowing it to be used in applications that require fast charging and high-power delivery.
