Part Details for MF-SM050-2 by Bourns Inc
Results Overview of MF-SM050-2 by Bourns Inc
- Distributor Offerings: (19 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Energy and Power Systems
Renewable Energy
MF-SM050-2 Information
MF-SM050-2 by Bourns Inc is a Non-linear Resistor.
Non-linear Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for MF-SM050-2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
38K5127
|
Newark | Fuse, Ptc Reset, 60V, 0.5A, Smd, Thermistor Mounting:Smd, Product Range:Mf-Sm Series, Holding Current:500Ma, Tripping Current:1A, Voltage Rating:60V, Operating Temperature Min:-40°C, Operating Temperature Max:85°C, Automotive Rohs Compliant: Yes |Bourns MF-SM050-2 RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 2430 |
|
$0.4270 / $0.4520 | Buy Now |
|
DISTI #
06X6355
|
Newark | Fuse, Reset Ptc, 60V, 0.5A, Smd, Pptc Case Style:2920 (7351 Metric), Product Range:Mf-Sm Series, Voltage Rating:60Vdc, Holding Current:500Ma, Trip Current:1A, Time To Trip:4S, Current Rating Max:40A, Operating Temperature Min:-40°C Rohs Compliant: Yes |Bourns MF-SM050-2 RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 1 Container: Tape & Reel | 0 |
|
$0.3440 | Buy Now |
|
DISTI #
MF-SM050-2
|
Avnet Americas | Resettable Fuse, PPTC, 2920 (7351 Metric), MF-SM, 60 VDC, 500 mA, 1 A, 4 s - Tape and Reel (Alt: MF-SM050-2) COO: China RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 4 Weeks, 0 Days Container: Tape & Reel | 12000 |
|
$0.1375 / $0.2639 | Buy Now |
|
DISTI #
70154125
|
RS | FUSE, RESETTABLE, 0.5A, DIMS 0.314X0.214X0.129", SMT, 60VDC, DCR 0.35 OHMS, PCB Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks, 0 Days Container: Bulk | 4257 |
|
$0.1600 | Buy Now |
|
|
Bristol Electronics | Min Qty: 5 | 17307 |
|
$0.2852 / $1.0969 | Buy Now |
|
|
Bristol Electronics | Min Qty: 9 | 1830 |
|
$0.1200 / $0.6000 | Buy Now |
|
DISTI #
MF-SM050-2
|
TME | Fuse: PTC polymer, 500mA, Imax: 40A, PCB,SMT, MF-SM, 2920, reel Min Qty: 1 | 4306 |
|
$0.2310 / $0.3300 | Buy Now |
|
|
NexGen Digital | 3091 |
|
RFQ | ||
|
DISTI #
SMC-MF-SM050-2
|
Sensible Micro Corporation | XFUSE RESETTABLE R= .50A 60V SMD RoHS: Compliant Min Qty: 25 Lead time: 0 Weeks, 1 Days Date Code: TBC Container: Tape & Reel | 280 |
|
RFQ | |
|
|
Chip 1 Exchange | INSTOCK | 1881 |
|
RFQ |
US Tariff Estimator: MF-SM050-2 by Bourns Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MF-SM050-2
MF-SM050-2 CAD Models
-
Part Symbol
-

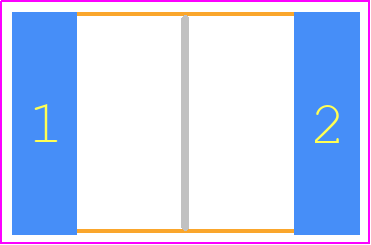

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
MF-SM050-2 Part Data Attributes
|
|
MF-SM050-2
Bourns Inc
Buy Now
Datasheet
|
Compare Parts:
MF-SM050-2
Bourns Inc
PTC Resettable Fuse, Surface Mount, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Chip | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.40.80.70 | |
| Factory Lead Time | 4 Weeks | |
| Additional Feature | Rmin At 23 Deg Cel | |
| JESD-609 Code | e3 | |
| Mounting Feature | Surface Mount | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 3.18 Mm | |
| Package Length | 7.98 Mm | |
| Package Shape | Rectangular Package | |
| Package Style | Smt | |
| Package Width | 5.44 Mm | |
| Packing Method | Tr, 14 Inch | |
| Reference Standard | Aec-Q200; Cul; Tuv; Ul | |
| Resistance | 0.35 Ω | |
| Resistor Type | Ptc Resettable Fuse | |
| Surface Mount | Yes | |
| Terminal Finish | Tin (Sn) | |
| Terminal Placement | Dual Ended | |
| Terminal Shape | Flat | |
| Thermistor Application | Overcurrent Protection | |
| Working Voltage | 60 V |
MF-SM050-2 Frequently Asked Questions (FAQ)
-
Bourns provides a recommended PCB layout and land pattern in their application notes. It's essential to follow these guidelines to ensure optimal performance, low inductance, and minimal signal degradation.
-
The MF-SM050-2 has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and installation. Use an ESD wrist strap or mat, and ensure the workspace is ESD-safe.
-
The MF-SM050-2 is rated for operation from -40°C to 125°C. However, it's essential to consider the specific application and potential thermal gradients that may affect performance and reliability.
-
The MF-SM050-2 is designed to withstand moderate vibration and shock. However, for extreme environments, it's recommended to consult with Bourns' application engineers to determine the suitability of the component and potential modifications to the design.
-
The MF-SM050-2 meets various regulatory standards, including RoHS and REACH. However, it's essential to review the specific requirements of your application and consult with Bourns' support team to ensure compliance.
