Part Details for MIC2026-1YM-TR by Microchip Technology Inc
Results Overview of MIC2026-1YM-TR by Microchip Technology Inc
- Distributor Offerings: (17 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (2 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
MIC2026-1YM-TR Information
MIC2026-1YM-TR by Microchip Technology Inc is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MIC2026-1YM-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
52AH1147
|
Newark | Power Load Switch, 5.5V, Soic-8, Power Load Switch Type:High Side, No. Of Channels:2Channels, Input Voltage:5.5V, Current Limit:900Ma, On State Resistance:0.09Ohm, Ic Case/Package:Soic, No. Of Pins:8Pins, Thermal Protection:Yes Rohs Compliant: Yes |Microchip MIC2026-1YM-TR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 2026 |
|
$1.0800 / $1.3500 | Buy Now |
|
DISTI #
70Y9487
|
Newark | Dual Usb High-Side Power Switch 8 Soic 3.90Mm(.150In) T/R Rohs Compliant: Yes |Microchip MIC2026-1YM-TR RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$1.0500 | Buy Now |
|
DISTI #
MIC2026-1YM-TR
|
Avnet Americas | Power Load Distribution Switch IC, Active High, 2 Outputs, 5.5 V in, 900 mA, 0.09 ohm, SOIC-8 - Tape and Reel (Alt: MIC2026-1YM-TR) COO: Thailand RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 4 Weeks, 0 Days Container: Reel | 12500 |
|
$0.5722 / $0.5841 | Buy Now |
|
DISTI #
52AH1147
|
Avnet Americas | Power Load Distribution Switch IC, Active High, 2 Outputs, 5.5 V in, 900 mA, 0.09 ohm, SOIC-8 - Product that comes on tape, but is not reeled (Alt: 52AH1147) COO: Thailand RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Ammo Pack | 2026 Partner Stock |
|
$1.0800 / $1.3500 | Buy Now |
|
DISTI #
MIC2026-1YM-TR
|
Microchip Technology Inc | Dual USB High-Side Power Switch, SOIC, Projected EOL: 2034-02-18 COO: Malaysia, Thailand ECCN: EAR99 RoHS: Compliant Lead time: 21 Weeks, 0 Days Container: Reel | In Stock: 39272 and Alternates Available |
|
$0.7800 / $1.3500 | Buy Now |
|
|
Bristol Electronics | Min Qty: 3 | 10478 |
|
$0.5940 / $1.8000 | Buy Now |
|
|
Bristol Electronics | Min Qty: 3 | 240 |
|
$0.6750 / $1.8000 | Buy Now |
|
|
NAC | Dual USB High-Side Power Switch. Package: 8 SOIC 3.90mm(.150in) T/R - POWER SWITCHES Product Line RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 | 0 |
|
$0.6500 / $0.8000 | Buy Now |
|
|
PUI | RoHS: Compliant Min Qty: 625 Package Multiple: 625 Lead time: 16 Weeks, 0 Days | 1250 |
|
RFQ | |
|
DISTI #
MIC2026-1YM-TR
|
Avnet Silica | Power Load Distribution Switch IC Active High 2 Outputs 55 V in 900 mA 009 ohm SOIC8 (Alt: MIC2026-1YM-TR) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 6 Weeks, 0 Days | Silica - 12500 |
|
Buy Now |
US Tariff Estimator: MIC2026-1YM-TR by Microchip Technology Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MIC2026-1YM-TR
MIC2026-1YM-TR CAD Models
-

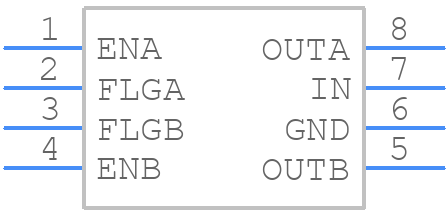

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
MIC2026-1YM-TR Part Data Attributes
|
|
MIC2026-1YM-TR
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
MIC2026-1YM-TR
Microchip Technology Inc
Dual USB High-Side Power Switch
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Package Description | SOP, SOP8,.25 | |
| Pin Count | 8 | |
| Manufacturer Package Code | SOIC-8 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 21 Weeks | |
| Samacsys Manufacturer | Microchip | |
| Adjustable Threshold | NO | |
| Analog IC - Other Type | LOAD SWITCH | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 4.93 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 2 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.73 mm | |
| Supply Current-Max (Isup) | 0.16 mA | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 2.7 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Threshold Voltage-Nom | +2.4V | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.94 mm |
Alternate Parts for MIC2026-1YM-TR
This table gives cross-reference parts and alternative options found for MIC2026-1YM-TR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MIC2026-1YM-TR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MIC2026-1YM | Microchip Technology Inc | $0.9899 | Dual USB High-Side Power Switch | MIC2026-1YM-TR vs MIC2026-1YM |
| MIC2076-1YM | Microchip Technology Inc | $1.2717 | Dual USB High-Side Power Switch | MIC2026-1YM-TR vs MIC2076-1YM |
MIC2026-1YM-TR Frequently Asked Questions (FAQ)
-
A good PCB layout for the MIC2026-1YM-TR involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a common ground point for the input and output returns.
-
To ensure proper powering and biasing of the MIC2026-1YM-TR, make sure to connect the input voltage (VIN) to a stable DC power source, and decouple the input with a capacitor (e.g., 1uF) to reduce noise. Also, ensure the enable pin (EN) is properly biased to either VCC or GND, depending on the desired state.
-
The MIC2026-1YM-TR has a maximum junction temperature (TJ) of 150°C. To ensure reliable operation, keep the device within the recommended operating temperature range (–40°C to 125°C) and provide adequate heat sinking, especially in high-power applications.
-
To troubleshoot issues with the MIC2026-1YM-TR, start by verifying the input voltage, output voltage, and enable pin states. Check for proper PCB layout, decoupling, and heat sinking. Use an oscilloscope to inspect the input and output waveforms, and consult the datasheet and application notes for guidance.
-
Yes, to minimize EMI/EMC issues with the MIC2026-1YM-TR, use a shielded enclosure, keep the device away from high-frequency sources, and ensure proper PCB layout and decoupling. Additionally, consider using EMI filters or common-mode chokes on the input and output lines.
