MIC2250-2YD5-TR Information
MIC2250-2YD5-TR by Microchip Technology Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MIC2250-2YD5-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
70Y9944
|
Newark | 1.2A High Light Load Efficiency Boost Regulator With Dithering Disabled 5 Tsot - T/R Rohs Compliant: Yes |Microchip MIC2250-2YD5-TR RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.7740 | Buy Now |
|
DISTI #
MIC2250-2YD5-TR
|
Avnet Americas | Conv DC-DC Single Step Up 2.5V to 5.5V 5-Pin TSOT-23 T/R - Tape and Reel (Alt: MIC2250-2YD5-TR) COO: Malaysia RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks, 0 Days Container: Reel | 0 |
|
$0.7625 / $0.8714 | Buy Now |
|
DISTI #
MIC2250-2YD5-TR
|
Microchip Technology Inc | 1.2A High Light Load Efficiency Boost Regulator with Dithering Enabled, TSOT, Projected EOL: 2040-10-07 COO: Malaysia, Thailand ECCN: EAR99 RoHS: Compliant Lead time: 8 Weeks, 0 Days Container: Reel | In Stock: 9302 and Alternates Available |
|
$0.7100 / $0.9700 | Buy Now |
|
|
NAC | 1.2A High Light Load Efficiency Boost Regulator with Dithering Disabled. Package: 5 TSOT - T/R - POWER ANALOG Product Line RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 | 0 |
|
$0.7600 / $0.9400 | Buy Now |
|
DISTI #
MIC2250-2YD5-TR
|
Avnet Silica | Conv DCDC Single Step Up 25V to 55V 5Pin TSOT23 TR (Alt: MIC2250-2YD5-TR) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
MIC2250-2YD5-TR
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 2990 |
|
$0.5660 / $0.8860 | Buy Now |
|
DISTI #
MIC2250-2YD5-TR
|
EBV Elektronik | Conv DCDC Single Step Up 25V to 55V 5Pin TSOT23 TR (Alt: MIC2250-2YD5-TR) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 9 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
US Tariff Estimator: MIC2250-2YD5-TR by Microchip Technology Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MIC2250-2YD5-TR
MIC2250-2YD5-TR CAD Models
-

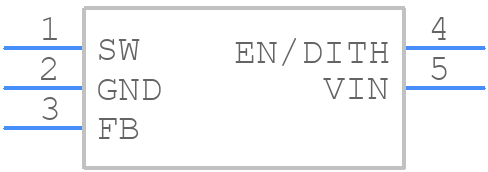

Part Symbol
-
