MIC2775-44YM5-TR Information
MIC2775-44YM5-TR by Microchip Technology Inc is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MIC2775-44YM5-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
71Y0366
|
Newark | Single Voltage Supervisor With Dual Active-High And Low Push-Pull Outputs, Manua 5 Sot-23 T/R Rohs Compliant: Yes |Microchip MIC2775-44YM5-TR RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.6470 | Buy Now |
|
DISTI #
MIC2775-44YM5-TR
|
Avnet Americas | SINGLE VOLTAGE SUPERVISOR WITH DUAL ACTIVE-HIGH AND LOW PUSH - Tape and Reel (Alt: MIC2775-44YM5-TR) COO: China RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 7 Weeks, 0 Days Container: Reel | 0 |
|
$0.6625 / $0.7571 | Buy Now |
|
DISTI #
MIC2775-44YM5-TR
|
Microchip Technology Inc | Single Voltage Supervisor with Dual Active-High and Low Push-Pull Outputs, Manua, SOT-23, Projected EOL: 2034-03-29 COO: Malaysia, Thailand ECCN: EAR99 RoHS: Compliant Lead time: 7 Weeks, 0 Days Container: Reel | In Stock: 2855 and Alternates Available |
|
$0.5900 / $0.8100 | Buy Now |
|
DISTI #
MIC2775-44YM5-TR
|
IBS Electronics | MIC2775-44YM5-TR by Microchip is a 4.43V voltage supervisor with 140ms delay, designed for micro power applications. It features a SOT-23-5 package, ideal for SMT use. Min Qty: 3000 Package Multiple: 1 | 0 |
|
$0.8960 | Buy Now |
|
|
NAC | Single Voltage Supervisor with Dual Active-High and Low Push-Pull Outputs, Manua. - POWER ANALOG Product Line RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 | 0 |
|
$0.6600 / $0.8200 | Buy Now |
|
DISTI #
MIC2775-44YM5-TR
|
Avnet Silica | SINGLE VOLTAGE SUPERVISOR WITH DUAL ACTIVEHIGH AND LOW PUSH (Alt: MIC2775-44YM5-TR) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 9 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
MIC2775-44YM5-TR
|
EBV Elektronik | SINGLE VOLTAGE SUPERVISOR WITH DUAL ACTIVEHIGH AND LOW PUSH (Alt: MIC2775-44YM5-TR) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
US Tariff Estimator: MIC2775-44YM5-TR by Microchip Technology Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MIC2775-44YM5-TR
MIC2775-44YM5-TR CAD Models
-

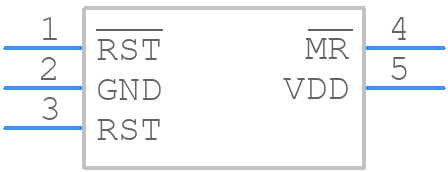

Part Symbol
-
Footprint
-

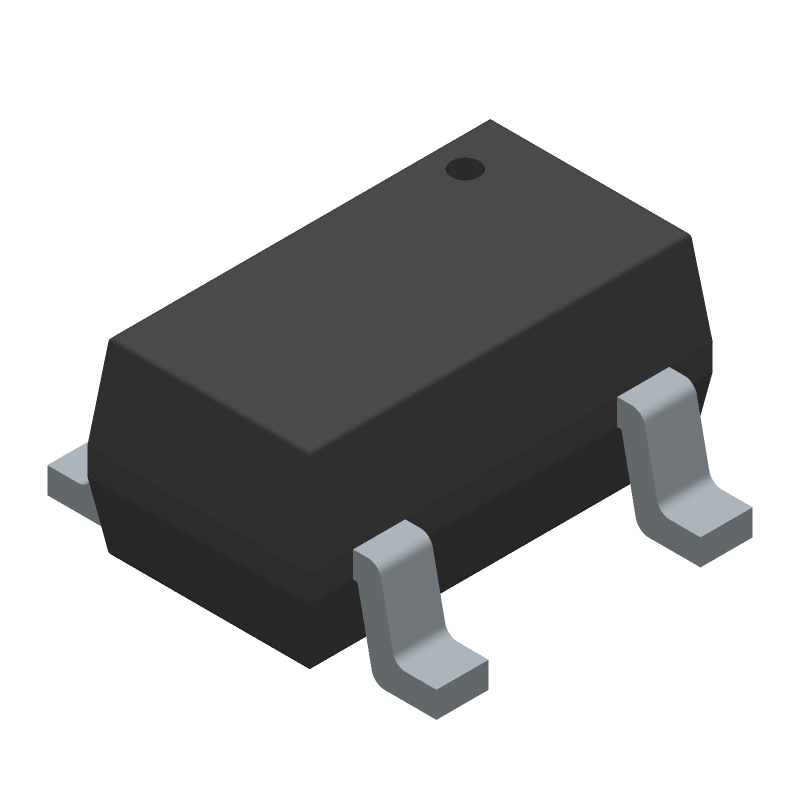

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
MIC2775-44YM5-TR Part Data Attributes
|
|
MIC2775-44YM5-TR
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
MIC2775-44YM5-TR
Microchip Technology Inc
Single Voltage Supervisor with Dual Active-High and Low Push-Pull Outputs, Manua
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Lssop, Tsop5/6,.11,37 | |
| Pin Count | 5 | |
| Manufacturer Package Code | SOT-23-5 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 7 Weeks | |
| Additional Feature | Nominal Thresholdvoltage Is 4.43; Manual Reset Input | |
| Adjustable Threshold | No | |
| Analog IC - Other Type | Voltage Supervisor/Reset Ic | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e4 | |
| Length | 2.9 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | LSSOP | |
| Package Equivalence Code | TSOP5/6,.11,37 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Low Profile, Shrink Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.45 Mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 1.5 V | |
| Supply Voltage-Nom (Vsup) | 5.1388 V | |
| Surface Mount | Yes | |
| Temperature Grade | Industrial | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.95 Mm | |
| Terminal Position | Dual | |
| Threshold Voltage-Nom | +4.43v | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Width | 1.6 Mm |
