Part Details for MIC2920A-12WS by Microchip Technology Inc
Results Overview of MIC2920A-12WS by Microchip Technology Inc
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (1 option)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
MIC2920A-12WS Information
MIC2920A-12WS by Microchip Technology Inc is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MIC2920A-12WS
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK9161
|
Newark | Ic, Linear Voltage Regulator, Output Type:Fixed, Input Voltage Min:2V, Input Voltage Max:26V, Fixed Output Voltage Nom.:12V, Adjustable Output Voltage Min:-, Adjustable Output Voltage Max:-, Output Current:400Ma, Dropout Voltage Rohs Compliant: Yes |Microchip MIC2920A-12WS RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 127 |
|
$1.3500 / $1.7800 | Buy Now |
|
DISTI #
79AH4266
|
Newark | 400Ma Ldo Fixed Voltage Rohs Compliant: Yes |Microchip MIC2920A-12WS RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 23 |
|
$1.3500 / $1.7800 | Buy Now |
|
DISTI #
MIC2920A-12WS
|
Avnet Americas | 400MA LDO FIXED VOLTAGE - Rail/Tube (Alt: MIC2920A-12WS) COO: China RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 52 Weeks, 0 Days Container: Tube | 23 |
|
$0.7514 / $0.7990 | Buy Now |
|
DISTI #
MIC2920A-12WS
|
Microchip Technology Inc | 400mA LDO Fixed Voltage, SOT-223, Projected EOL: 2035-08-30 COO: China ECCN: EAR99 RoHS: Compliant Container: Tube | In Stock: 390 and Alternates Available |
|
$1.0300 / $1.7800 | Buy Now |
|
|
Bristol Electronics | 54 |
|
RFQ | ||
|
|
Rochester Electronics | Fixed Positive LDO Regulator, 12V, 0.75V Dropout, BIPolar, PDSO4 RoHS: Compliant Status: Active Min Qty: 1 | 5 |
|
$0.7140 / $1.1500 | Buy Now |
|
DISTI #
MIC2920A-12WS
|
TME | IC: voltage regulator, LDO,linear,fixed, 12V, 0.4A, SOT223-3, SMD Min Qty: 1 | 385 |
|
$1.1500 / $1.7300 | Buy Now |
|
DISTI #
MIC2920A-12WS
|
IBS Electronics | MIC2920A SERIES 12 V FIXED OUTPUT 400 MA SMT LDO VOLTAGE REGULATOR - SOT-223 Min Qty: 78 Package Multiple: 1 | 312 |
|
$0.5600 / $0.6160 | Buy Now |
|
|
NAC | 400mA LDO Fixed Voltage. Package: 3 SOT-223 - TUBE - POWER ANALOG Product Line RoHS: Compliant Min Qty: 390 Package Multiple: 78 Container: Tube | 0 |
|
$0.8500 / $1.0500 | Buy Now |
|
DISTI #
MIC2920A-12WS
|
Avnet Silica | 400MA LDO FIXED VOLTAGE (Alt: MIC2920A-12WS) RoHS: Compliant Min Qty: 390 Package Multiple: 78 Lead time: 38 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
US Tariff Estimator: MIC2920A-12WS by Microchip Technology Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MIC2920A-12WS
MIC2920A-12WS CAD Models
-

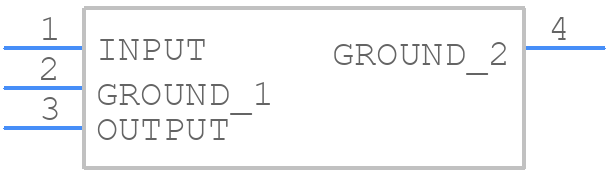

Part Symbol
-

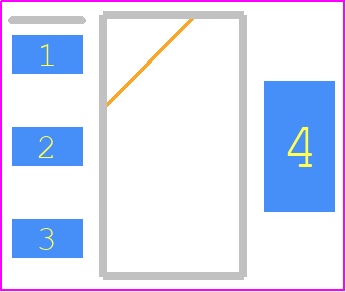

Footprint
-

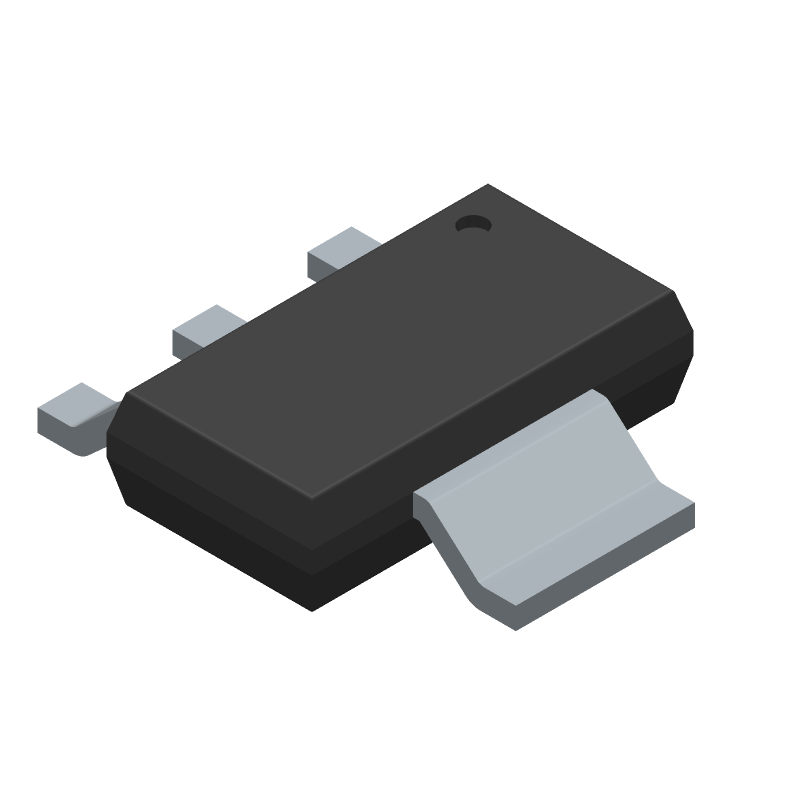

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
MIC2920A-12WS Part Data Attributes
|
|
MIC2920A-12WS
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
MIC2920A-12WS
Microchip Technology Inc
400mA LDO Fixed Voltage
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Sot-223, 4 Pin | |
| Pin Count | 3 | |
| Manufacturer Package Code | SOT-223-3 | |
| Reach Compliance Code | Not Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Adjustability | Fixed | |
| Dropout Voltage1-Max | 0.75 V | |
| Dropout Voltage1-Nom | 0.4 V | |
| Input Voltage Absolute-Max | 60 V | |
| Input Voltage-Max | 26 V | |
| Input Voltage-Min | 13 V | |
| JESD-30 Code | R-PDSO-G4 | |
| JESD-609 Code | e3 | |
| Length | 6.5 Mm | |
| Line Regulation-Max | 0.048% | |
| Load Regulation-Max | 0.036% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 4 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Output Current1-Max | 0.4 A | |
| Output Voltage1-Max | 12.48 V | |
| Output Voltage1-Min | 11.52 V | |
| Output Voltage1-Nom | 12 V | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | HSOP | |
| Package Equivalence Code | SOT-223 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Packing Method | Tube | |
| Qualification Status | Not Qualified | |
| Regulator Type | Fixed Positive Single Output Ldo Regulator | |
| Seated Height-Max | 1.8 Mm | |
| Surface Mount | Yes | |
| Technology | Bipolar | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 2.3 Mm | |
| Terminal Position | Dual | |
| Voltage Tolerance-Max | 4% | |
| Width | 3.5 Mm |
Alternate Parts for MIC2920A-12WS
This table gives cross-reference parts and alternative options found for MIC2920A-12WS. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MIC2920A-12WS, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MIC2920A-12WS-TR | Microchip Technology Inc | $2.0465 | 400mA LDO Fixed Voltage | MIC2920A-12WS vs MIC2920A-12WS-TR |
MIC2920A-12WS Frequently Asked Questions (FAQ)
-
The MIC2920A-12WS can handle input voltages up to 18V, but it's recommended to keep the input voltage below 15V for optimal performance and reliability.
-
To ensure stability, make sure to use a minimum output capacitance of 10uF, and keep the output capacitor's ESR (Equivalent Series Resistance) below 1 ohm. Also, avoid using ceramic capacitors with high ESL (Equivalent Series Inductance).
-
The MIC2920A-12WS requires a minimum input voltage of 7.5V to regulate properly. If the input voltage drops below 7.5V, the output voltage may not be regulated.
-
The MIC2920A-12WS is rated for operation up to 125°C, but its performance may degrade at high temperatures. Make sure to derate the output current and consider using a heat sink if operating in high-temperature environments.
-
To calculate the power dissipation, use the formula: Pd = (Vin - Vout) x Iout. Make sure to consider the maximum junction temperature and thermal resistance when calculating the power dissipation.
