MIC45116-1YMP-TR Information
MIC45116-1YMP-TR by Microchip Technology Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MIC45116-1YMP-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
71Y1223
|
Newark | 20V, 6A Dc/Dc Power Module With Hyper Light Load 52 B1Qfn 8X8X3Mm T/R Rohs Compliant: Yes |Microchip MIC45116-1YMP-TR RoHS: Compliant Min Qty: 1500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$4.6600 | Buy Now |
|
DISTI #
79Y6084
|
Newark | Dc/Dc Conv, Sync Buck, 600Khz, Qfn-52, No. Of Outputs:1Outputs, Topology:Synchronous Buck (Step Down), Input Voltage Min:4.75V, Input Voltage Max:20V, Max Output Current:6A, Ic Case/Package:Qfn, No. Of Pins:52Pins, Efficiency:93% Rohs Compliant: Yes |Microchip MIC45116-1YMP-TR RoHS: Compliant Min Qty: 1500 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
$4.5200 | Buy Now |
|
DISTI #
MIC45116-1YMP-TR
|
Avnet Americas | - Tape and Reel (Alt: MIC45116-1YMP-TR) COO: China RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 Lead time: 7 Weeks, 0 Days Container: Reel | 0 |
|
$4.8000 / $5.4857 | Buy Now |
|
DISTI #
MIC45116-1YMP-TR
|
Microchip Technology Inc | 20V, 6A Hyper Light Load Module, B1QFN, Projected EOL: 2040-10-06 COO: Malaysia ECCN: EAR99 RoHS: Compliant Lead time: 7 Weeks, 0 Days Container: Reel | In Stock: 0 and Alternates Available |
|
$3.9500 / $5.9500 | Buy Now |
|
|
NAC | 20V, 6A DC/DC Power Module with Hyper Light Load. Package: 52 B1QFN 8x8x3mm T/R - POWER ANALOG Product Line RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 | 0 |
|
$4.6800 / $5.6500 | Buy Now |
|
DISTI #
MIC45116-1YMP-TR
|
Avnet Silica | (Alt: MIC45116-1YMP-TR) RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 Lead time: 9 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
US Tariff Estimator: MIC45116-1YMP-TR by Microchip Technology Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MIC45116-1YMP-TR
MIC45116-1YMP-TR CAD Models
-

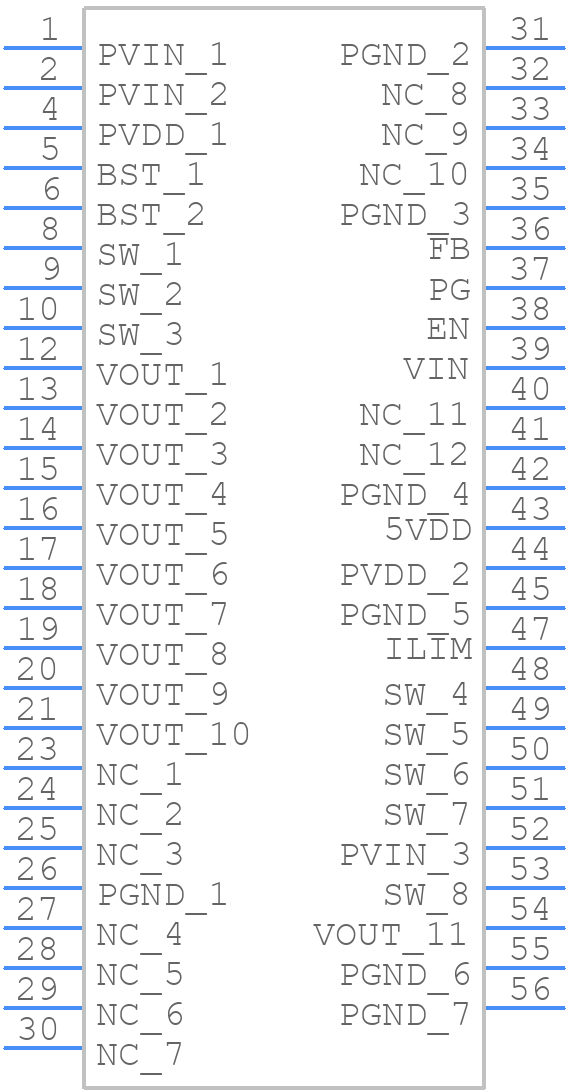

Part Symbol
-

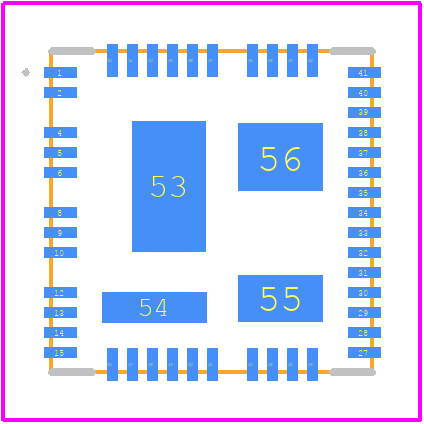

Footprint
-
