MIC94063YC6-TR Information
MIC94063YC6-TR by Microchip Technology Inc is a Peripheral Driver.
Peripheral Drivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for MIC94063YC6-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
52AH1198
|
Newark | Power Load Switch, 5.5V, Sc-70-6, Power Load Switch Type:High Side, No. Of Channels:1Channels, Input Voltage:5.5V, Current Limit:2A, On State Resistance:0.077Ohm, Ic Case/Package:Sc-70, No. Of Pins:6Pins, Thermal Protection:Yes Rohs Compliant: Yes |Microchip MIC94063YC6-TR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 470 |
|
$0.7430 / $0.8000 | Buy Now |
|
DISTI #
71Y3242
|
Newark | High Side Power Switch 6 Sc70 - T/R Rohs Compliant: Yes |Microchip MIC94063YC6-TR RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.7640 | Buy Now |
|
DISTI #
52AH1198
|
Avnet Americas | USB Power SW Hi Side Single 1.7V to 5.5V 6-Pin SC-70 T/R - Product that comes on tape, but is not reeled (Alt: 52AH1198) COO: Thailand RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Ammo Pack | 470 Partner Stock |
|
$0.7800 / $0.9500 | Buy Now |
|
DISTI #
MIC94063YC6-TR
|
Avnet Americas | USB Power SW Hi Side Single 1.7V to 5.5V 6-Pin SC-70 T/R - Tape and Reel (Alt: MIC94063YC6-TR) COO: Thailand RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 7 Weeks, 0 Days Container: Reel | 0 |
|
$0.7500 / $0.8571 | Buy Now |
|
DISTI #
MIC94063YC6-TR
|
Microchip Technology Inc | High Side Power Switch, SC70, Projected EOL: 2034-01-06 COO: Malaysia, Thailand ECCN: EAR99 RoHS: Compliant Lead time: 9 Weeks, 0 Days Container: Reel | In Stock: 1986 and Alternates Available |
|
$0.6900 / $0.9500 | Buy Now |
|
|
Bristol Electronics | 3975 |
|
RFQ | ||
|
DISTI #
MIC94063YC6-TR
|
IBS Electronics | MIC94063YC6-TR by Microchip is a high-side power switch with 5.5V max input, 110 mOhm on-resistance, and SC-70-6 package, ideal for efficient power management in compact applications. Min Qty: 750 Package Multiple: 1 | 5650 |
|
$0.9632 / $0.9828 | Buy Now |
|
|
NAC | High Side Power Switch. Package: 6 SC70 - T/R - POWER SWITCHES Product Line RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 | 0 |
|
$0.7500 / $0.9200 | Buy Now |
|
DISTI #
MIC94063YC6-TR
|
Avnet Silica | USB Power SW Hi Side Single 17V to 55V 6Pin SC70 TR (Alt: MIC94063YC6-TR) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 9 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
MIC94063YC6-TR
|
EBV Elektronik | USB Power SW Hi Side Single 17V to 55V 6Pin SC70 TR (Alt: MIC94063YC6-TR) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
US Tariff Estimator: MIC94063YC6-TR by Microchip Technology Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MIC94063YC6-TR
MIC94063YC6-TR CAD Models
-

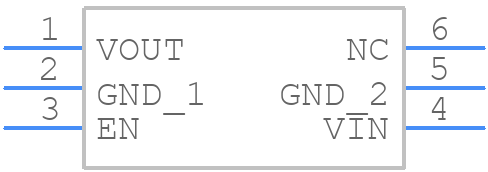

Part Symbol
-
Footprint
-

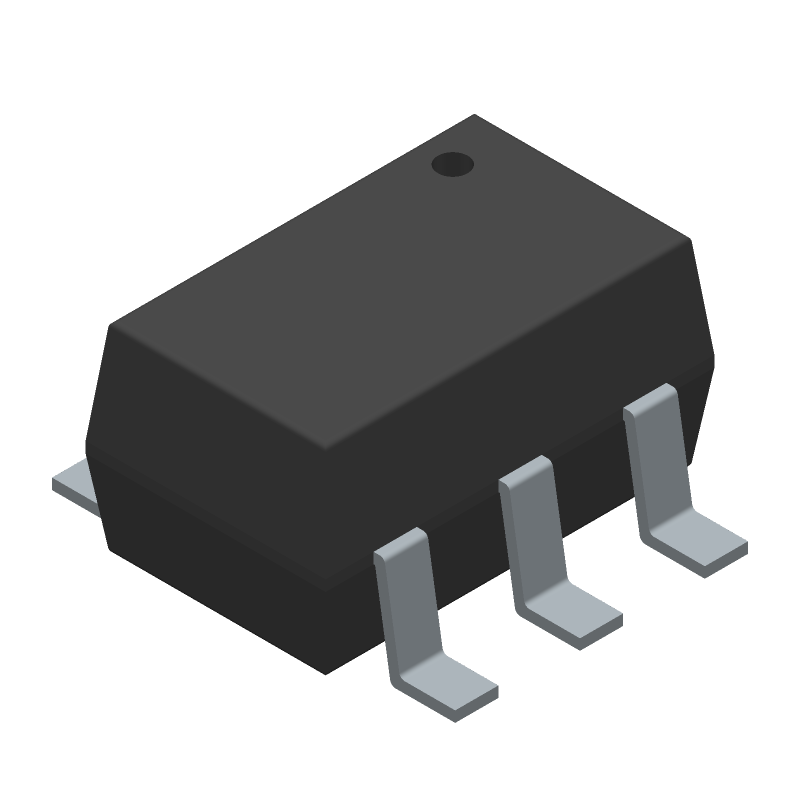

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
MIC94063YC6-TR Part Data Attributes
|
|
MIC94063YC6-TR
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
MIC94063YC6-TR
Microchip Technology Inc
High Side Power Switch
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Tssop, | |
| Pin Count | 6 | |
| Manufacturer Package Code | SC70-6 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 9 Weeks | |
| Built-in Protections | Transient | |
| Interface IC Type | Buffer Or Inverter Based Peripheral Driver | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e4 | |
| Length | 2 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current Flow Direction | Source | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | TSSOP | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Thin Profile, Shrink Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.1 Mm | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 1.7 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | Yes | |
| Temperature Grade | Industrial | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Turn-off Time | 1200 µS | |
| Turn-on Time | 0.2 µS | |
| Width | 1.25 Mm |
Alternate Parts for MIC94063YC6-TR
This table gives cross-reference parts and alternative options found for MIC94063YC6-TR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MIC94063YC6-TR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MIC94065YC6-TR | Microchip Technology Inc | $0.6835 | High Side Power Switch | MIC94063YC6-TR vs MIC94065YC6-TR |
MIC94063YC6-TR Frequently Asked Questions (FAQ)
-
For optimal thermal performance, it is recommended to use a 2-layer or 4-layer PCB with a solid ground plane on the bottom layer. This helps to dissipate heat efficiently. Additionally, ensure that the PCB layout allows for good airflow around the device.
-
To ensure reliable operation in high-temperature environments, it is essential to follow proper thermal design and layout guidelines. This includes providing adequate heat sinking, using thermal interface materials, and ensuring good airflow around the device. Additionally, consider using thermal simulation tools to analyze and optimize the thermal performance of your design.
-
The recommended input capacitor is a 10uF ceramic capacitor with X7R or X5R dielectric, and the recommended output capacitor is a 22uF ceramic capacitor with X7R or X5R dielectric. However, the optimal capacitor values may vary depending on the specific application and operating conditions.
-
To troubleshoot issues with the device's output voltage regulation, start by verifying the input voltage and ensuring it is within the recommended range. Check the output voltage using an oscilloscope or multimeter, and verify that the output capacitor is properly connected. If the issue persists, check the PCB layout for any signs of thermal stress or electrical noise that may be affecting the device's performance.
-
Operating the device beyond the recommended operating conditions can lead to reduced reliability, decreased performance, and potentially even device failure. It is essential to ensure that the device operates within the recommended temperature range, input voltage range, and output current range to ensure reliable operation and prevent premature failure.
