Resistors / Fixed Resistors / MMA02040E1202BB100
Datasheets
MMA02040E1202BB100 by:
Vishay Intertechnologies

Fixed Resistor, Thin Film, 0.25W, 12000ohm, 200V, 0.1% +/-Tol, 15ppm/Cel, Surface Mount, 1406, MELF

Part Details for MMA02040E1202BB100 by Vishay Intertechnologies

Results Overview of MMA02040E1202BB100 by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Industrial Automation Aerospace and Defense Energy and Power Systems Healthcare Telecommunications Automotive

MMA02040E1202BB100 Information

MMA02040E1202BB100 by Vishay Intertechnologies is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for MMA02040E1202BB100

Part # Distributor Description Stock Price Buy
DISTI # 19J4238
Newark Surface Mount Melf Resistor, Mma 0204 Series, 12 Kohm, 250 Mw, 0.1%, Metal Film Rohs Compliant: Yes |Vishay MMA02040E1202BB100 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 760
  • 1 $1.2800
  • 10 $0.8540
  • 25 $0.6650
  • 50 $0.6340
  • 100 $0.6030
  • 250 $0.5350
  • 500 $0.4920
  • 1,000 $0.4080
$0.4080 / $1.2800 Buy Now
DISTI # 23AH7661
Newark Mma 0204-15 0.1% B1 12K |Vishay MMA02040E1202BB100 RoHS: Not Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1 $0.4320
  • 5,000 $0.4220
  • 10,000 $0.3900
  • 20,000 $0.3630
  • 30,000 $0.3390
  • 50,000 $0.3240
$0.3240 / $0.4320 Buy Now
DISTI # MMA02040E1202BB100
Avnet Americas Surface Mount MELF Resistor, 12 kOhm, ? 0.1%, 250 mW, 0204 [3715 Metric], Thin Film - Tape and Reel (Alt: MMA02040E1202BB100) COO: United States of America (the) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 8 Weeks, 0 Days Container: Reel 0
  • 1,000 $0.3597
  • 2,000 $0.3198
  • 4,000 $0.3182
  • 6,000 $0.3165
  • 8,000 $0.3149
$0.3149 / $0.3597 Buy Now
DISTI # MMA02040E1202BB100
Avnet Abacus Surface Mount MELF Resistor 12 kOhm 01 250 mW 0204 3715 Metric Thin Film (Alt: MMA02040E1202BB100) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 11 Weeks, 0 Days Abacus - 0
Buy Now
DISTI # MMA02040E1202BB100
Avnet Asia Surface Mount MELF Resistor, 12 kOhm, ? 0.1%, 250 mW, 0204 [3715 Metric], Thin Film (Alt: MMA02040E1202BB100) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 10 Weeks, 0 Days 0
RFQ

US Tariff Estimator: MMA02040E1202BB100 by Vishay Intertechnologies

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

MMA02040E1202BB100
Vishay Intertechnologies
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for MMA02040E1202BB100

MMA02040E1202BB100 CAD Models

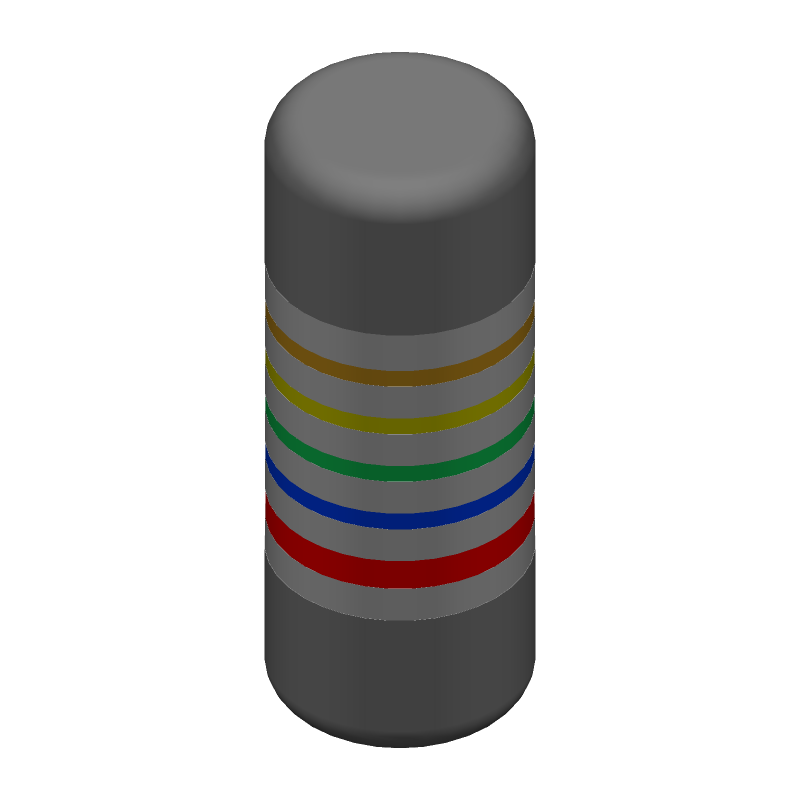

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MMA02040E1202BB100 Part Data Attributes

Parametric Data
MMA02040E1202BB100 Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
MMA02040E1202BB100 Vishay Intertechnologies Fixed Resistor, Thin Film, 0.25W, 12000ohm, 200V, 0.1% +/-Tol, 15ppm/Cel, Surface Mount, 1406, MELF
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Package Description MELF
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Factory Lead Time 8 Weeks
Samacsys Manufacturer Vishay
Additional Feature ANTI-SULFUR, PRECISION, RATED AC VOLTAGE (V): 200
Construction Cylindrical
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Diameter 1.4 mm
Package Length 3.6 mm
Package Style MELF
Packing Method TR, BLISTER, 7 INCH
Rated Power Dissipation (P) 0.25 W
Rated Temperature 70 °C
Reference Standard AEC-Q200; CECC40401-803
Resistance 12000 Ω
Resistor Type FIXED RESISTOR
Size Code 1406
Surface Mount YES
Technology THIN FILM
Temperature Coefficient 15 ppm/°C
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Tolerance 0.1%
Working Voltage 200 V

Alternate Parts for MMA02040E1202BB100

This table gives cross-reference parts and alternative options found for MMA02040E1202BB100. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MMA02040E1202BB100, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MMA0204-150.1%B112K Vishay Intertechnologies Check for Price Fixed Resistor, Thin Film, 0.25W, 12000ohm, 200V, 0.1% +/-Tol, 15ppm/Cel, Surface Mount, 1406, MMA02040E1202BB100 vs MMA0204-150.1%B112K
UMA02040E1202AA0 Vishay Intertechnologies Check for Price Fixed Resistor, Thin Film, 0.25W, 12000ohm, 200V, 0.05% +/-Tol, 15ppm/Cel, Surface Mount, 1406, MELF MMA02040E1202BB100 vs UMA02040E1202AA0
MMA02040E1202BM300 Vishay Intertechnologies Check for Price Fixed Resistor, Thin Film, 0.25W, 12000ohm, 200V, 0.1% +/-Tol, 15ppm/Cel, Surface Mount, 1406, MELF MMA02040E1202BB100 vs MMA02040E1202BM300
SMM0204VE1202BB1 Vishay Intertechnologies Check for Price Fixed Resistor, Thin Film, 0.25W, 12000ohm, 200V, 0.1% +/-Tol, 15ppm/Cel, Surface Mount, 1406, MELF MMA02040E1202BB100 vs SMM0204VE1202BB1
MMA0204-150.1%M312K Vishay Intertechnologies Check for Price Fixed Resistor, Thin Film, 0.25W, 12000ohm, 200V, 0.1% +/-Tol, 15ppm/Cel, Surface Mount, 1406, MMA02040E1202BB100 vs MMA0204-150.1%M312K
UMA02040E1202AAU00 Vishay Intertechnologies Check for Price Fixed Resistor, Thin Film, 0.25W, 12000ohm, 200V, 0.05% +/-Tol, 15ppm/Cel, Surface Mount, 1406, MELF MMA02040E1202BB100 vs UMA02040E1202AAU00
MMA0204WE1202BB100 Vishay Intertechnologies Check for Price Fixed Resistor, Thin Film, 0.25W, 12000ohm, 200V, 0.1% +/-Tol, 15ppm/Cel, Surface Mount, MELF MMA02040E1202BB100 vs MMA0204WE1202BB100
MMA0204-150.1%BL12K Vishay Intertechnologies Check for Price Fixed Resistor, Thin Film, 0.25W, 12000ohm, 200V, 0.1% +/-Tol, 15ppm/Cel, Surface Mount, 1406, MMA02040E1202BB100 vs MMA0204-150.1%BL12K
SMM02041512K0.1%M3 Vishay Intertechnologies Check for Price Fixed Resistor, Thin Film, 0.25W, 12000ohm, 200V, 0.1% +/-Tol, 15ppm/Cel, Surface Mount, 1406, MMA02040E1202BB100 vs SMM02041512K0.1%M3
231214771203 Vishay Intertechnologies Check for Price Fixed Resistor, Thin Film, 0.25W, 12000ohm, 200V, 0.1% +/-Tol, 15ppm/Cel, Surface Mount, 1406, MELF, ROHS COMPLIANT MMA02040E1202BB100 vs 231214771203
equivalents icon

MMA02040E1202BB100 Related Parts

MMA02040E1202BB100 Frequently Asked Questions (FAQ)

  • Vishay provides a recommended PCB layout and land pattern in their application note AN1025, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance, thermal management, and reliability.

  • The MMA02040E1202BB100 has a high power density, so thermal management is crucial. Ensure good airflow, use a heat sink if necessary, and follow Vishay's thermal management guidelines in their application notes. A thermal interface material (TIM) can also be used to improve heat transfer between the device and heat sink.

  • The MMA02040E1202BB100 is sensitive to electrostatic discharge (ESD). Handle the device with ESD-protective equipment, follow proper handling and storage procedures, and ensure that the PCB design includes ESD protection components, such as TVS diodes or ESD arrays, to prevent damage.

  • While the MMA02040E1202BB100 is a robust device, it's essential to evaluate its suitability for high-vibration or high-shock environments. Vishay provides guidance on mechanical stress testing in their application notes. Additionally, consider using a robust PCB design, secure mounting, and potting or encapsulation to ensure reliability in harsh environments.

  • To troubleshoot issues with the MMA02040E1202BB100, follow a systematic approach: check the PCB design and layout, verify the power supply and voltage regulator, inspect for signs of physical damage or contamination, and consult Vishay's application notes and technical support resources.
