Part Details for MMBD4148CA by onsemi
Results Overview of MMBD4148CA by onsemi
- Distributor Offerings: (14 listings)
- Number of FFF Equivalents: (4 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Space Technology
Aerospace and Defense
Energy and Power Systems
Renewable Energy
MMBD4148CA Information
MMBD4148CA by onsemi is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for MMBD4148CA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
26AC2195
|
Newark | 2 1P Die In A Sot-23 Pkg Rohs Compliant: Yes |Onsemi MMBD4148CA RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 30000 |
|
$0.0320 | Buy Now |
|
DISTI #
58K9419
|
Newark | Small Signal Diode, 100V 200Ma Sot-23, Diode Configuration:Dual Common Anode, Repetitive Peak Reverse Voltage:100V, Average Forward Current:200Ma, Forward Voltage Max:1V, Reverse Recovery Time:4Ns, Forward Surge Current:2A Rohs Compliant: Yes |Onsemi MMBD4148CA RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 941 |
|
$0.0140 | Buy Now |
|
DISTI #
29X6742
|
Newark | Diode, Small Signal, 0.2A, 100V, Sot-23, Diode Configuration:Dual Common Anode, Repetitive Peak Reverse Voltage:100V, Average Forward Current:200Ma, Forward Voltage Max:1V, Reverse Recovery Time:4Ns, Forward Surge Current:2A Rohs Compliant: Yes |Onsemi MMBD4148CA RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0230 / $0.0340 | Buy Now |
|
DISTI #
MMBD4148CA
|
Avnet Americas | - Tape and Reel (Alt: MMBD4148CA) COO: Japan RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days Container: Reel | 3000021000 Factory Stock |
|
$0.0162 / $0.0176 | Buy Now |
|
DISTI #
58K9419
|
Avnet Americas | - Product that comes on tape, but is not reeled (Alt: 58K9419) COO: China RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Ammo Pack | 941 Partner Stock |
|
$0.0470 / $0.2520 | Buy Now |
|
|
Bristol Electronics | 4000 |
|
RFQ | ||
|
|
Bristol Electronics | Min Qty: 45 | 1872 |
|
$0.0338 / $0.1125 | Buy Now |
|
DISTI #
MMBD4148CA
|
TME | Diode: switching, SMD, 100V, 0.2A, 4ns, SOT23, Ufmax: 1V, Ifsm: 2A Min Qty: 1 | 533 |
|
$0.0508 / $0.1500 | Buy Now |
|
DISTI #
MMBD4148CA
|
Avnet Asia | (Alt: MMBD4148CA) RoHS: Compliant Min Qty: 21000 Package Multiple: 3000 Lead time: 13 Weeks, 0 Days | 0 |
|
RFQ | |
|
DISTI #
MMBD4148CA
|
Avnet Silica | (Alt: MMBD4148CA) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
US Tariff Estimator: MMBD4148CA by onsemi
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MMBD4148CA
MMBD4148CA CAD Models
-

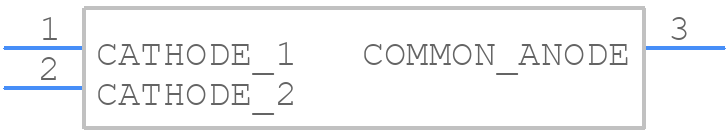

Part Symbol
-
Footprint
-

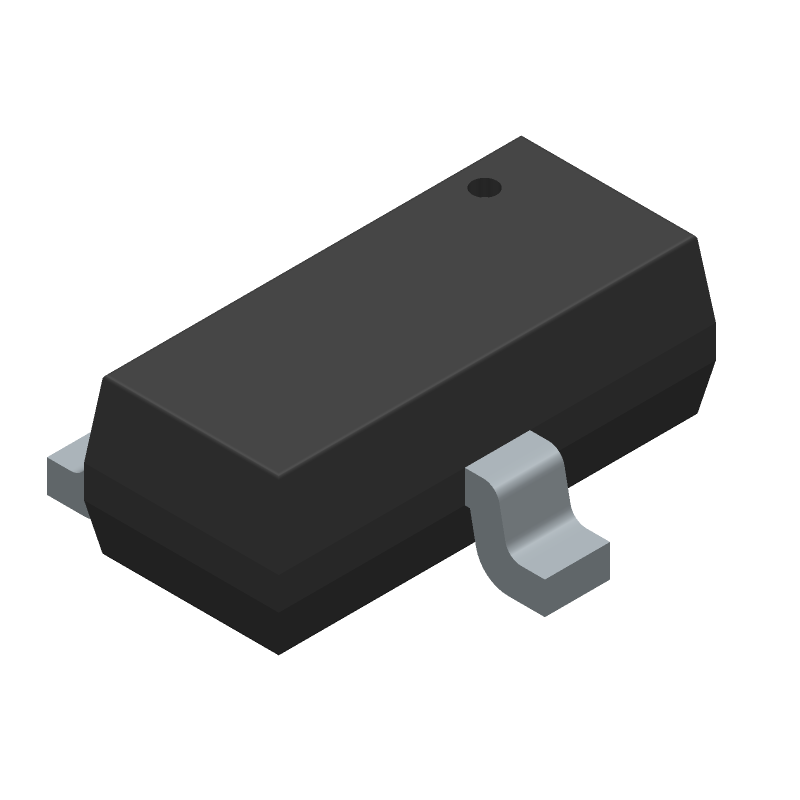

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
MMBD4148CA Part Data Attributes
|
|
MMBD4148CA
onsemi
Buy Now
Datasheet
|
Compare Parts:
MMBD4148CA
onsemi
High Conductance Ultra Fast Diode, SOT-23 (TO-236) 2.90x1.30x1.00, 1.90P, 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOT-23 (TO-236) 2.90x1.30x1.00, 1.90P | |
| Package Description | SOT-23, 3 PIN | |
| Manufacturer Package Code | 318 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.70 | |
| Samacsys Manufacturer | onsemi | |
| Additional Feature | ULTRA FAST | |
| Configuration | COMMON ANODE, 2 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1 V | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 2 A | |
| Number of Elements | 2 | |
| Number of Phases | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Output Current-Max | 0.2 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Dissipation-Max | 0.35 W | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 100 V | |
| Reverse Recovery Time-Max | 0.004 µs | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Alternate Parts for MMBD4148CA
This table gives cross-reference parts and alternative options found for MMBD4148CA. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MMBD4148CA, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MMBD4148CA-T | Micro Commercial Components | Check for Price | Rectifier Diode, | MMBD4148CA vs MMBD4148CA-T |
| MMBD4148CA | EIC Semiconductor Inc | Check for Price | Rectifier Diode, | MMBD4148CA vs MMBD4148CA |
| MMBD4148CA | Transys Electronics Limited | Check for Price | Rectifier Diode, 0.2A, 75V V(RRM) | MMBD4148CA vs MMBD4148CA |
| MMBD4148CA | Jiangsu Changjiang Electronics Technology Co Ltd | Check for Price | Rectifier Diode, 0.2A, 75V V(RRM) | MMBD4148CA vs MMBD4148CA |
MMBD4148CA Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the MMBD4148CA is -55°C to 150°C.
-
Yes, the MMBD4148CA is suitable for switching applications due to its high switching speed and low saturation voltage.
-
To ensure reliability, follow proper handling and storage procedures, and ensure the device is operated within its recommended operating conditions.
-
Use a thermal pad or heat sink to minimize thermal resistance. Keep the PCB layout compact and use thermal vias to dissipate heat efficiently.
-
Yes, the MMBD4148CA can be used in linear amplifier applications due to its high current gain and low noise figure.
