MPL3115A2 Information
MPL3115A2 by NXP Semiconductors is a Pressure Sensor.
Pressure Sensors are under the broader part category of Sensors/Transducers.
Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.
Price & Stock for MPL3115A2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
48T4344
|
Newark | Pressure Sensor, 110Kpa, -40 To 85Deg C, Pressure Type:Absolute, Operating Pressure Min:20Kpa, Operating Pressure Max:110Kpa, Supply Voltage Min:1.95V, Supply Voltage Max:3.6V, Sensor Case/Package:Lga, No. Of Pins:8Pins, Accuracy:-Rohs Compliant: Yes |Nxp MPL3115A2 RoHS: Compliant Min Qty: 490 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$3.0000 / $3.0900 | Buy Now |
|
|
Win Source Electronics | SENSOR 15.95PSIA 24BIT 8LGA | 55146 |
|
$3.0858 / $3.9857 | Buy Now |
US Tariff Estimator: MPL3115A2 by NXP Semiconductors
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MPL3115A2
MPL3115A2 CAD Models
-

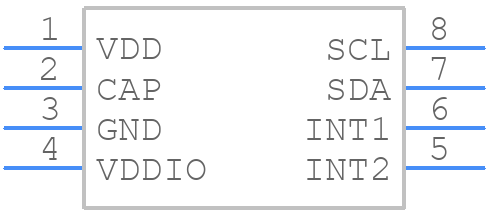

Part Symbol
-
