Sensors/Transducers / Pressure Sensors / MPXV2053DP
Datasheets

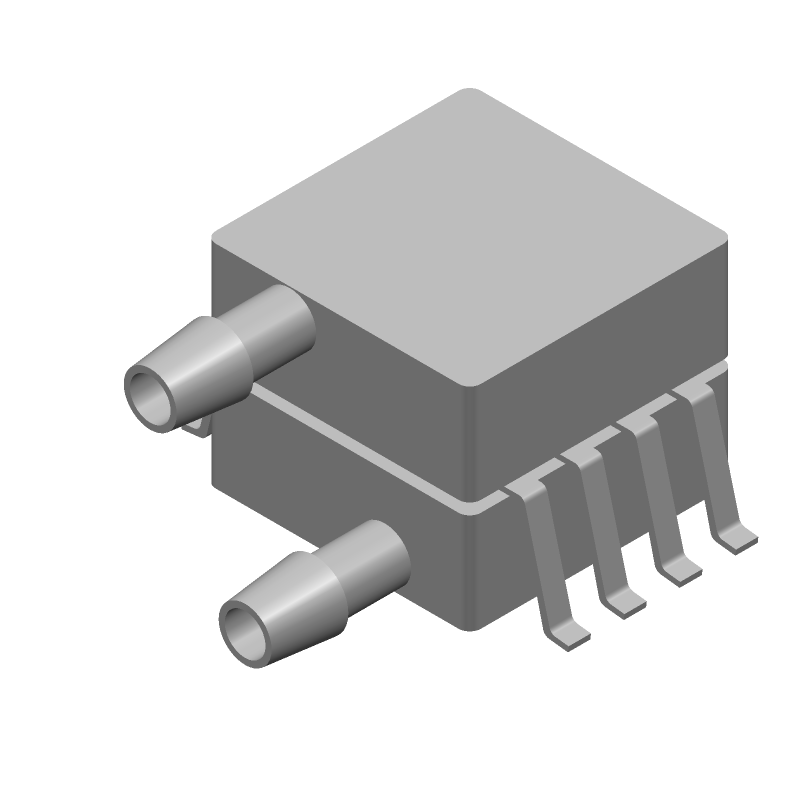

MPXV2053DP by:
NXP Semiconductors

DIFFERENTIAL, PEIZORESISTIVE PRESSURE SENSOR, 0-7.25Psi, 0.4%, 0-40mV, SQUARE, SURFACE MOUNT

Part Details for MPXV2053DP by NXP Semiconductors

Results Overview of MPXV2053DP by NXP Semiconductors

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

MPXV2053DP Information

MPXV2053DP by NXP Semiconductors is a Pressure Sensor.
Pressure Sensors are under the broader part category of Sensors/Transducers.

Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.

Price & Stock for MPXV2053DP

Part # Distributor Description Stock Price Buy
DISTI # 75C3890
Newark Pressure Sensor, 0 To 50Kpa, Sop-8, Pressure Type:Differential, Operating Pressure Min:0Kpa, Operating Pressure Max:50Kpa, Supply Voltage Min:10V, Supply Voltage Max:16V, Sensor Case/Package:Sop, No. Of Pins:8Pins, Accuracy:- Rohs Compliant: Yes |Nxp MPXV2053DP RoHS: Compliant Min Qty: 125 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 100 $11.7500
  • 250 $11.7400
  • 500 $11.0900
$11.0900 / $11.7500 Buy Now
DISTI # MPXV2053DP
Avnet Americas Pressure Sensor, Differential, 0 kPa, 50 kPa, 10 V, 16 V, SOP - Trays (Alt: MPXV2053DP) COO: Korea (the Republic of) RoHS: Compliant Min Qty: 25 Package Multiple: 1 Lead time: 52 Weeks, 0 Days Container: Tray 0
  • 25 $11.6266
  • 50 $10.9981
  • 100 $10.7087
  • 200 $10.4341
  • 400 $10.1732
$10.1732 / $11.6266 Buy Now
NXP Semiconductors Pressure Sensor, 10V, 0/50kPa, SOP 8, Port, Tray, Multiple RoHS: Compliant pbFree: Yes Lead time: 52 Weeks, 0 Days Container: Tray 1115
  • 1 $10.5800
  • 26 $9.7700
  • 100 $8.9500
$8.9500 / $10.5800 Buy Now
DISTI # MPXV2053DP
Avnet Silica Pressure Sensor Differential 0 kPa 50 kPa 10 V 16 V SOP (Alt: MPXV2053DP) RoHS: Compliant Min Qty: 25 Package Multiple: 25 Lead time: 18 Weeks, 0 Days Silica - 0
Buy Now
DISTI # MPXV2053DP
Chip One Stop Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Tray 123
  • 1 $15.2000
  • 5 $13.4000
  • 10 $12.8000
  • 50 $11.6000
  • 100 $10.1000
  • 250 $9.8300
  • 500 $9.4500
  • 1,000 $8.8000
$8.8000 / $15.2000 Buy Now
Chip Stock NXPMPXV2053DPPressureSensor,Differential,0.8mV/kPa,0kPa,50kPa,10V,16V 11500
RFQ
DISTI # MPXV2053DP
EBV Elektronik Pressure Sensor Differential 0 kPa 50 kPa 10 V 16 V SOP (Alt: MPXV2053DP) RoHS: Compliant Min Qty: 25 Package Multiple: 25 Lead time: 54 Weeks, 0 Days EBV - 0
Buy Now
Win Source Electronics 50 KPA ON CHIP TEMPERATURE COMPENSATED CALIBRATED SILICON PRESSURE SENSORS | SENSOR PRESSURE DIFF DUAL 8-SOP 10000
  • 3 $20.6458
  • 7 $16.9401
  • 11 $16.4107
  • 15 $15.8813
  • 19 $15.3520
  • 26 $13.7638
$13.7638 / $20.6458 Buy Now

US Tariff Estimator: MPXV2053DP by NXP Semiconductors

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

MPXV2053DP
NXP Semiconductors
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for MPXV2053DP

MPXV2053DP Part Data Attributes

Parametric Data
MPXV2053DP NXP Semiconductors
Buy Now Datasheet
Compare Parts:
MPXV2053DP NXP Semiconductors DIFFERENTIAL, PEIZORESISTIVE PRESSURE SENSOR, 0-7.25Psi, 0.4%, 0-40mV, SQUARE, SURFACE MOUNT
Rohs Code Yes
Part Life Cycle Code Active
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Factory Lead Time 52 Weeks
Accuracy-Max (%) 0.4%
Additional Feature Temperature Compensated
Body Breadth 12.06 Mm
Body Height 9.65 Mm
Body Length or Diameter 12.06 Mm
Linearity (%) 0.4 %
Mounting Feature Surface Mount
Offset-Nom 0mv
Operating Current-Max 6 Ma
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Output Range 0-40mv
Output Type Analog Voltage
Package Shape/Style Square
Port Type Barbed
Pressure Range-Max 7.25 Psi
Pressure Range-Min
Pressure Sensing Mode Differential
Response Time 1000 µS
Sensors/Transducers Type Pressure Sensor,Piezoresistive
Supply Voltage-Max 16 V
Supply Voltage-Min 10 V
Surface Mount Yes
Termination Type Solder

Alternate Parts for MPXV2053DP

This table gives cross-reference parts and alternative options found for MPXV2053DP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MPXV2053DP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MPXV2053DP Motorola Mobility LLC Check for Price DIFFERENTIAL, PEIZORESISTIVE PRESSURE SENSOR, 0-7.25Psi, 0.4%, 0-40mV, SURFACE MOUNT, SO-8 MPXV2053DP vs MPXV2053DP
MPXV2053DP Freescale Semiconductor Check for Price Pressure Sensor, 10V, 0/50kPa, SOP 8, Port, Tray MPXV2053DP vs MPXV2053DP
equivalents icon

MPXV2053DP Related Parts

MPXV2053DP Frequently Asked Questions (FAQ)

  • A good PCB layout for the MPXV2053DP involves keeping the sensor away from high-current carrying traces, using a solid ground plane, and minimizing the distance between the sensor and the analog-to-digital converter (ADC).

  • Calibration involves applying known pressures to the sensor and measuring the corresponding output voltages. A minimum of two points (e.g., 0 psi and full-scale pressure) are required for a basic calibration, but more points can improve accuracy.

  • To prevent damage, power should be applied to the VCC pin before the VEE pin. The power-on sequence should be: VCC, then VEE, then input signals (if applicable).

  • To minimize EMI, use a shielded cable for the sensor's output, keep the sensor away from high-frequency sources, and use a low-pass filter (e.g., RC filter) to filter out high-frequency noise.

  • The MPXV2053DP is rated for pressures up to 50 psi (3.45 bar). Exceeding this rating can damage the sensor.
