MPXV7002DPT1 Information
MPXV7002DPT1 by NXP Semiconductors is a Pressure Sensor.
Pressure Sensors are under the broader part category of Sensors/Transducers.
Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.
Price & Stock for MPXV7002DPT1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
49AC4108
|
Newark | Pressure Sensor, Differential, -2-2Kpa, Pressure Type:Differential, Sensitivity, V/P:1V/Kpa, Operating Pressure Min:-2Kpa, Operating Pressure Max:2Kpa, Supply Voltage Min:4.75V, Supply Voltage Max:5.25V, Sensor Case Style:Sop, No. Ofrohs Compliant: Yes |Nxp MPXV7002DPT1 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 726 |
|
$14.8600 / $18.1700 | Buy Now |
|
DISTI #
28X3717
|
Newark | Pressure Sensor, -2 To 2Kpa, Sop-8, Pressure Type:Differential, Operating Pressure Min:-2Kpa, Operating Pressure Max:2Kpa, Supply Voltage Min:4.75V, Supply Voltage Max:5.25V, Sensor Case/Package:Sop, No. Of Pins:8Pins, Msl:- Rohs Compliant: Yes |Nxp MPXV7002DPT1 RoHS: Compliant Min Qty: 100 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$13.3800 / $14.1400 | Buy Now |
|
DISTI #
MPXV7002DPT1
|
Avnet Americas | Pressure Sensor, Differential, -2 kPa, 2 kPa, 4.75 V, 5.25 V, SOP - Tape and Reel (Alt: MPXV7002DPT1) COO: Canada RoHS: Compliant Min Qty: 300 Package Multiple: 100 Lead time: 52 Weeks, 0 Days Container: Reel | 0 |
|
$12.4078 / $14.1803 | Buy Now |
|
|
Bristol Electronics | 176 |
|
RFQ | ||
|
DISTI #
MPXV7002DPT1-NXP-0
|
TME | Sensor: pressure Min Qty: 100 | 200 |
|
$16.4891 | Buy Now |
|
DISTI #
MPXV7002DPT1
|
Avnet Silica | Pressure Sensor Differential 2 kPa 2 kPa 475 V 525 V SOP (Alt: MPXV7002DPT1) RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 18 Weeks, 0 Days | Silica - 200 |
|
Buy Now | |
|
DISTI #
MPXV7002DPT1
|
EBV Elektronik | Pressure Sensor Differential 2 kPa 2 kPa 475 V 525 V SOP (Alt: MPXV7002DPT1) RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 54 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
US Tariff Estimator: MPXV7002DPT1 by NXP Semiconductors
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MPXV7002DPT1
MPXV7002DPT1 CAD Models
-

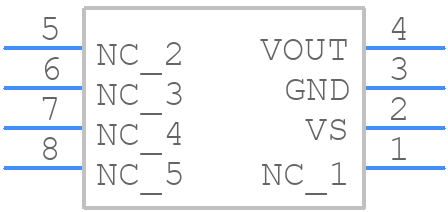

Part Symbol
-

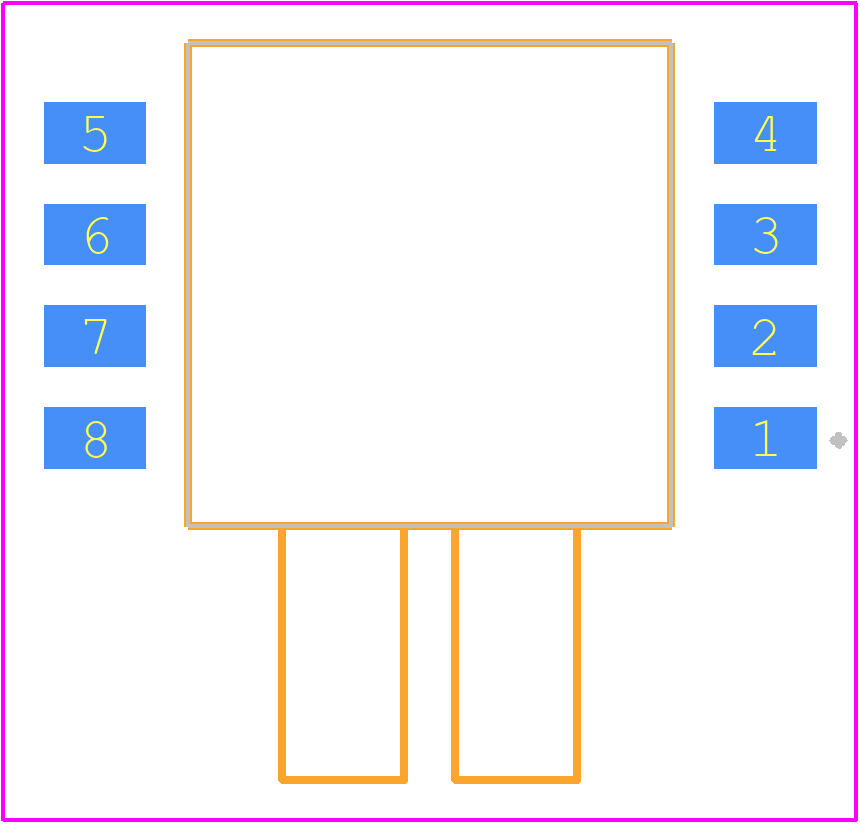

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
MPXV7002DPT1 Part Data Attributes
|
|
MPXV7002DPT1
NXP Semiconductors
Buy Now
Datasheet
|
Compare Parts:
MPXV7002DPT1
NXP Semiconductors
DIFFERENTIAL, PEIZORESISTIVE PRESSURE SENSOR, -.29-0.29Psi, 6.25%, 2.50-4.50V, SQUARE, SURFACE MOUNT
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NXP SEMICONDUCTORS | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 52 Weeks | |
| Samacsys Manufacturer | NXP | |
| Accuracy-Max (%) | 6.25% | |
| Additional Feature | TEMPERATURE COMPENSATED, SIGNAL CONDITIONED | |
| Body Breadth | 12.06 mm | |
| Body Height | 9.65 mm | |
| Body Length or Diameter | 12.06 mm | |
| Housing | PLASTIC | |
| Linearity (%) | 6.25 % | |
| Mounting Feature | SURFACE MOUNT | |
| Offset-Nom | 2.50V | |
| Operating Current-Max | 10 mA | |
| Operating Temperature-Max | 60 °C | |
| Operating Temperature-Min | 10 °C | |
| Output Range | 2.50-4.50V | |
| Output Type | ANALOG VOLTAGE | |
| Package Shape/Style | SQUARE | |
| Port Type | BARBED | |
| Pressure Range-Max | 0.29 Psi | |
| Pressure Range-Min | -0.29 Psi | |
| Pressure Sensing Mode | DIFFERENTIAL | |
| Response Time | 1000 µs | |
| Sensors/Transducers Type | PRESSURE SENSOR,PIEZORESISTIVE | |
| Supply Voltage-Max | 5.25 V | |
| Supply Voltage-Min | 4.75 V | |
| Surface Mount | YES | |
| Termination Type | SOLDER |
