MSRLJ165SC7105MTNA01 Information
MSRLJ165SC7105MTNA01 by TAIYO YUDEN is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for MSRLJ165SC7105MTNA01
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
MSRLJ165SC7105MTNA01
|
Avnet Americas | - Tape and Reel (Alt: MSRLJ165SC7105MTNA01) COO: Japan RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 15 Weeks, 0 Days Container: Reel | 0 |
|
$0.0457 | Buy Now |
|
DISTI #
MSRLJ165SC7105MTNA01
|
Avnet Abacus | - Tape and Reel (Alt: MSRLJ165SC7105MTNA01) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 17 Weeks, 0 Days Container: Reel | Abacus - 0 |
|
Buy Now |
US Tariff Estimator: MSRLJ165SC7105MTNA01 by TAIYO YUDEN
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MSRLJ165SC7105MTNA01

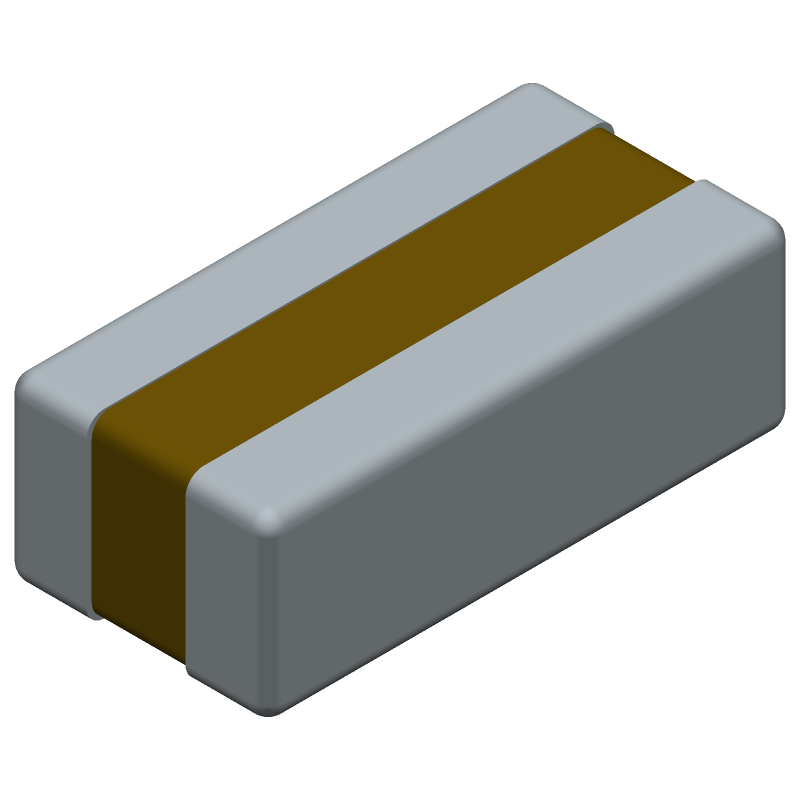

MSRLJ165SC7105MTNA01 CAD Models
-
Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
MSRLJ165SC7105MTNA01 Part Data Attributes
|
|
MSRLJ165SC7105MTNA01
TAIYO YUDEN
Buy Now
Datasheet
|
Compare Parts:
MSRLJ165SC7105MTNA01
TAIYO YUDEN
Ceramic Capacitor, Multilayer, Ceramic, 6.3V, 20% +Tol, 20% -Tol, X7S, 22% TC, 1uF, Surface Mount, 0306, CHIP
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | TAIYO YUDEN CO LTD | |
| Package Description | CHIP | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.24.00.20 | |
| Factory Lead Time | 15 Weeks | |
| Samacsys Manufacturer | TAIYO YUDEN | |
| Capacitance | 1 µF | |
| Capacitor Type | CERAMIC CAPACITOR | |
| Dielectric Material | CERAMIC | |
| Height | 0.5 mm | |
| JESD-609 Code | e3 | |
| Length | 0.8 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Multilayer | Yes | |
| Negative Tolerance | 20% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Packing Method | TR, Embossed, 7 Inch | |
| Positive Tolerance | 20% | |
| Rated (DC) Voltage (URdc) | 6.3 V | |
| Size Code | 0306 | |
| Surface Mount | YES | |
| Temperature Characteristics Code | X7S | |
| Temperature Coefficient | 22% ppm/°C | |
| Terminal Finish | Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Shape | WRAPAROUND | |
| Width | 1.6 mm |
Alternate Parts for MSRLJ165SC7105MTNA01
This table gives cross-reference parts and alternative options found for MSRLJ165SC7105MTNA01. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MSRLJ165SC7105MTNA01, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| JWK107C7105MV-T | TAIYO YUDEN | $0.1145 | Capacitor, Ceramic, Chip, General Purpose, 1uF, 6.3V, ±20%, X7S, 0603 (1608 mm), 0.020"T, -55º ~ +125ºC, 7" Reel/4mm pitch | MSRLJ165SC7105MTNA01 vs JWK107C7105MV-T |
| LLL185C70J105ME14K | Murata Manufacturing Co Ltd | Check for Price | Ceramic Capacitor, Ceramic, | MSRLJ165SC7105MTNA01 vs LLL185C70J105ME14K |
| MMRLJ165SC7105MTNA18 | TAIYO YUDEN | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 6.3V, 20% +Tol, 20% -Tol, X7S, 22% TC, 1uF, Surface Mount, 0306, CHIP | MSRLJ165SC7105MTNA01 vs MMRLJ165SC7105MTNA18 |
| LLL185C70J105ME14L | Murata Manufacturing Co Ltd | Check for Price | Ceramic Capacitor, Ceramic | MSRLJ165SC7105MTNA01 vs LLL185C70J105ME14L |
| JWK107C7105MV | TAIYO YUDEN | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 6.3V, 20% +Tol, 20% -Tol, X7S, -/+22% TC, 1uF, 0306, | MSRLJ165SC7105MTNA01 vs JWK107C7105MV |
| MCRLJ165SC7105MTNA01 | TAIYO YUDEN | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 6.3V, 20% +Tol, 20% -Tol, X7S, 22% TC, 1uF, Surface Mount, 0306, CHIP | MSRLJ165SC7105MTNA01 vs MCRLJ165SC7105MTNA01 |
