Part Details for MT40A512M16JY-083E:B by Micron Technology Inc
Results Overview of MT40A512M16JY-083E:B by Micron Technology Inc
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (9 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MT40A512M16JY-083E:B Information
MT40A512M16JY-083E:B by Micron Technology Inc is a DRAM.
DRAMs are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| 20083EB0BD | Amphenol Communications Solutions | Elite Backplane connectors, DO 8pair, 12position, NiS |
Price & Stock for MT40A512M16JY-083E:B
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 109 |
|
RFQ | ||
|
|
Chip Stock | DRAMChipDDR4SDRAM8G-Bit512Mx161.2V96-PinF-BGA | 16500 |
|
RFQ | |
|
|
Vyrian | Memory ICs | 333 |
|
RFQ | |
|
|
Win Source Electronics | DRAM Chip DDR4 SDRAM 8Gbit 512Mx16 1.2V 96-Pin FBGA | 13000 |
|
$4.8000 / $6.2000 | Buy Now |
US Tariff Estimator: MT40A512M16JY-083E:B by Micron Technology Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MT40A512M16JY-083E:B
MT40A512M16JY-083E:B CAD Models
-

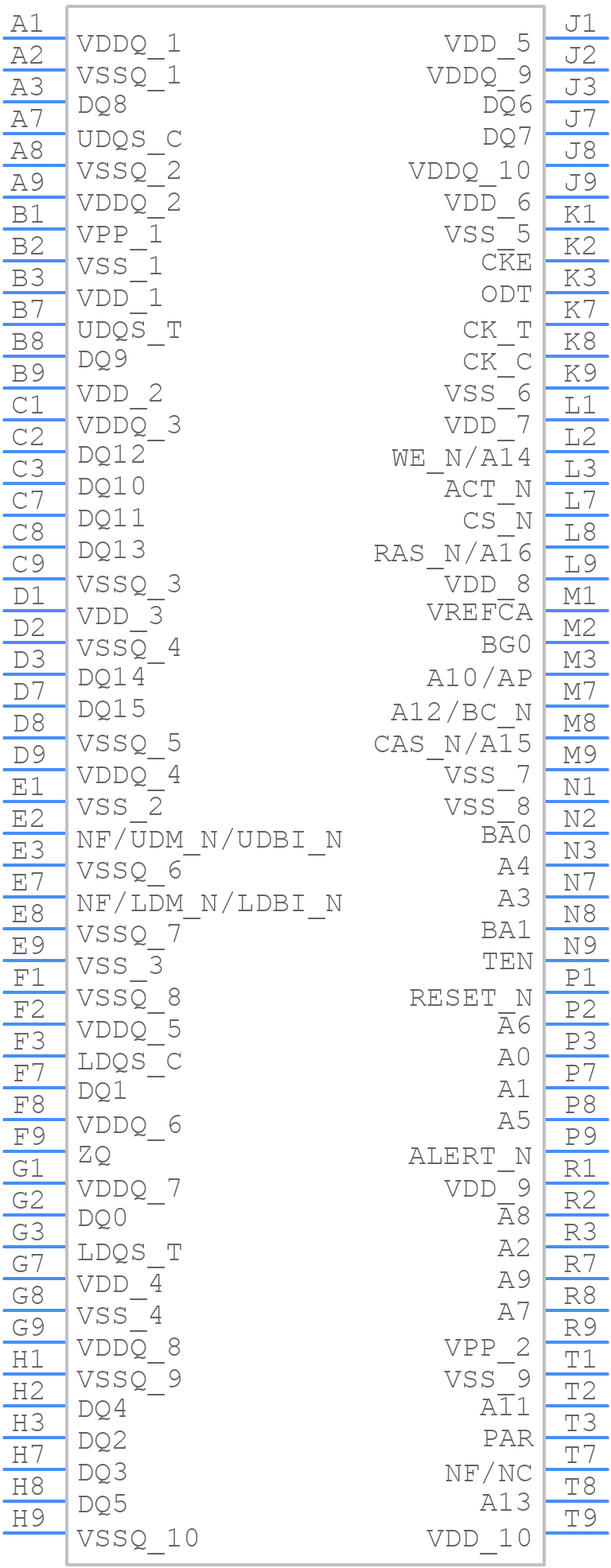

Part Symbol
-

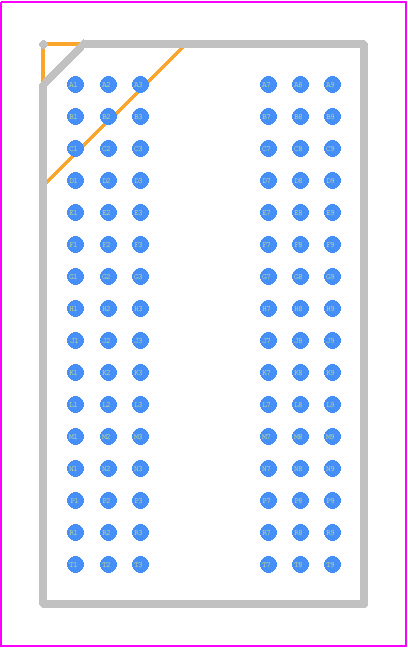

Footprint
-

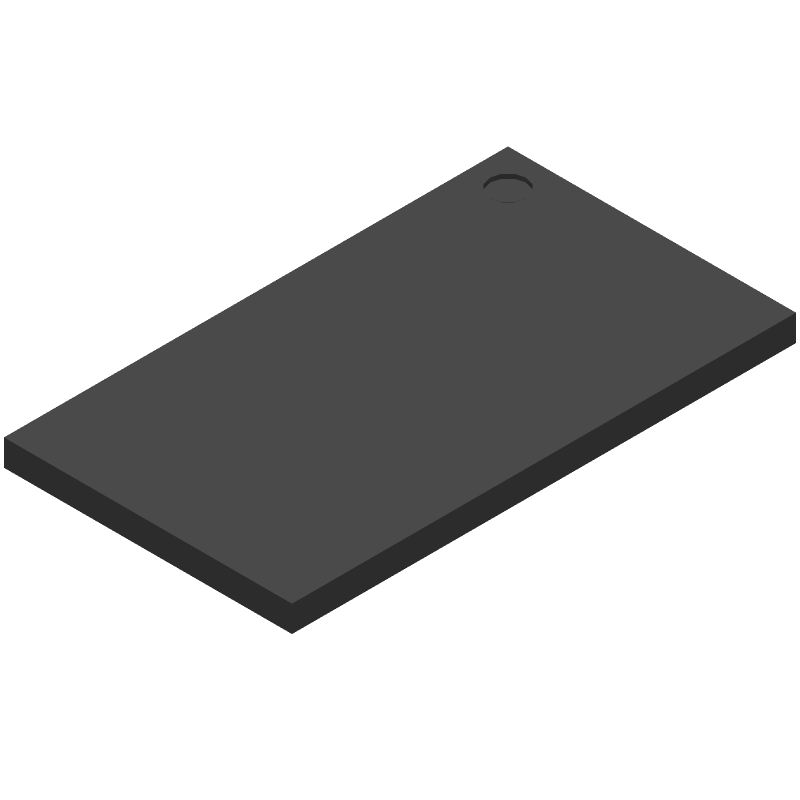

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
MT40A512M16JY-083E:B Part Data Attributes
|
|
MT40A512M16JY-083E:B
Micron Technology Inc
Buy Now
Datasheet
|
Compare Parts:
MT40A512M16JY-083E:B
Micron Technology Inc
DDR DRAM, 512MX16, CMOS, PBGA96, FBGA-96
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | MICRON TECHNOLOGY INC | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.32.00.36 | |
| Date Of Intro | 2016-03-18 | |
| Samacsys Manufacturer | Micron | |
| Access Mode | MULTI BANK PAGE BURST | |
| Additional Feature | AUTO/SELF REFRESH | |
| I/O Type | COMMON | |
| Interleaved Burst Length | 8 | |
| JESD-30 Code | R-PBGA-B96 | |
| Length | 14 mm | |
| Memory Density | 8589934592 bit | |
| Memory IC Type | DDR4 DRAM | |
| Memory Width | 16 | |
| Number of Functions | 1 | |
| Number of Ports | 1 | |
| Number of Terminals | 96 | |
| Number of Words | 536870912 words | |
| Number of Words Code | 512000000 | |
| Operating Mode | SYNCHRONOUS | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | ||
| Organization | 512MX16 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TFBGA | |
| Package Equivalence Code | BGA96,9X16,32 | |
| Package Shape | RECTANGULAR | |
| Package Style | GRID ARRAY, THIN PROFILE, FINE PITCH | |
| Refresh Cycles | 65536 | |
| Reverse Pinout | NO | |
| Seated Height-Max | 1.2 mm | |
| Self Refresh | YES | |
| Supply Voltage-Max (Vsup) | 1.26 V | |
| Supply Voltage-Min (Vsup) | 1.14 V | |
| Supply Voltage-Nom (Vsup) | 1.2 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | OTHER | |
| Terminal Form | BALL | |
| Terminal Pitch | 0.8 mm | |
| Terminal Position | BOTTOM | |
| Width | 8 mm |
Alternate Parts for MT40A512M16JY-083E:B
This table gives cross-reference parts and alternative options found for MT40A512M16JY-083E:B. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MT40A512M16JY-083E:B, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
MT40A512M16JY-083E:B Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for this module is 0°C to 85°C.
-
To ensure signal integrity, use a signal integrity analysis tool to simulate the signal transmission and optimize the PCB design. Additionally, use a clock signal with a high slew rate and a low jitter to minimize signal degradation.
-
The recommended voltage for the VDD and VDDQ power supplies is 1.2V ± 0.06V.
-
During self-refresh mode, the DRAM module will automatically refresh the memory cells. The host controller does not need to issue refresh commands.
-
The maximum number of banks that can be accessed simultaneously is 16.
