Part Details for MT41K64M16TW-107:J by Micron Technology Inc
Results Overview of MT41K64M16TW-107:J by Micron Technology Inc
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (1 replacement)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (6 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Computing and Data Storage
MT41K64M16TW-107:J Information
MT41K64M16TW-107:J by Micron Technology Inc is a DRAM.
DRAMs are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for MT41K64M16TW-107:J
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
83AH2731
|
Newark | Dram, 64M X 16Bit, 0 To 95Deg C, Dram Type:Ddr3L, Memory Configuration:64M X 16Bit, Clock Frequency Max:933Mhz, Ic Case/Package:Tfbga, No. Of Pins:96Pins, Supply Voltage Nom:1.35V, Ic Mounting:Surface Mount, Product Range:- Rohs Compliant: Yes |Micron MT41K64M16TW-107:J RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 919 |
|
$3.0300 / $3.7100 | Buy Now |
|
DISTI #
83AH2731
|
Avnet Americas | DRAM, DDR3L, 1 Gbit, 8M x 16bit, 933 MHz, FBGA, 96 Pins - Bulk (Alt: 83AH2731) COO: Taiwan (Province of China) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Bulk | 919 Partner Stock |
|
$2.8000 / $3.3400 | Buy Now |
|
DISTI #
MT41K64M16TW-107:J
|
Avnet Americas | DRAM, DDR3L, 1 Gbit, 8M x 16bit, 933 MHz, FBGA, 96 Pins - Trays (Alt: MT41K64M16TW-107:J) COO: Taiwan (Province of China) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 14 Weeks, 0 Days Container: Tray | 0 |
|
$2.4357 / $2.9354 | Buy Now |
|
|
Bristol Electronics | 2000 |
|
RFQ | ||
|
|
Bristol Electronics | 314 |
|
RFQ | ||
|
|
Bristol Electronics | 64 |
|
RFQ | ||
|
DISTI #
MT41K64M16TW107J-0
|
TME | IC: DRAM memory, 1.35V, 933MHz, FBGA96, 0÷95°C, parallel Min Qty: 1224 | 30525 |
|
$3.0862 | Buy Now |
|
DISTI #
MT41K64M16TW-107:J
|
Avnet Asia | DRAM, DDR3L, 1 Gbit, 8M x 16bit, 933 MHz, FBGA, 96 Pins (Alt: MT41K64M16TW-107:J) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 16 Weeks, 0 Days | 0 |
|
RFQ | |
|
DISTI #
MT41K64M16TW-107:J
|
Avnet Silica | DRAM DDR3L 1 Gbit 8M x 16bit 933 MHz FBGA 96 Pins (Alt: MT41K64M16TW-107:J) RoHS: Compliant Min Qty: 1224 Package Multiple: 1224 Lead time: 21 Weeks, 0 Days | Silica - 1224 |
|
Buy Now | |
|
|
Chip Stock | 1.45V1GbitParallel933MHz20nsSMTV88ASDRAMDDR3LMemoryIC-FBGA-96 | 30600 |
|
RFQ |
US Tariff Estimator: MT41K64M16TW-107:J by Micron Technology Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MT41K64M16TW-107:J
MT41K64M16TW-107:J CAD Models
-

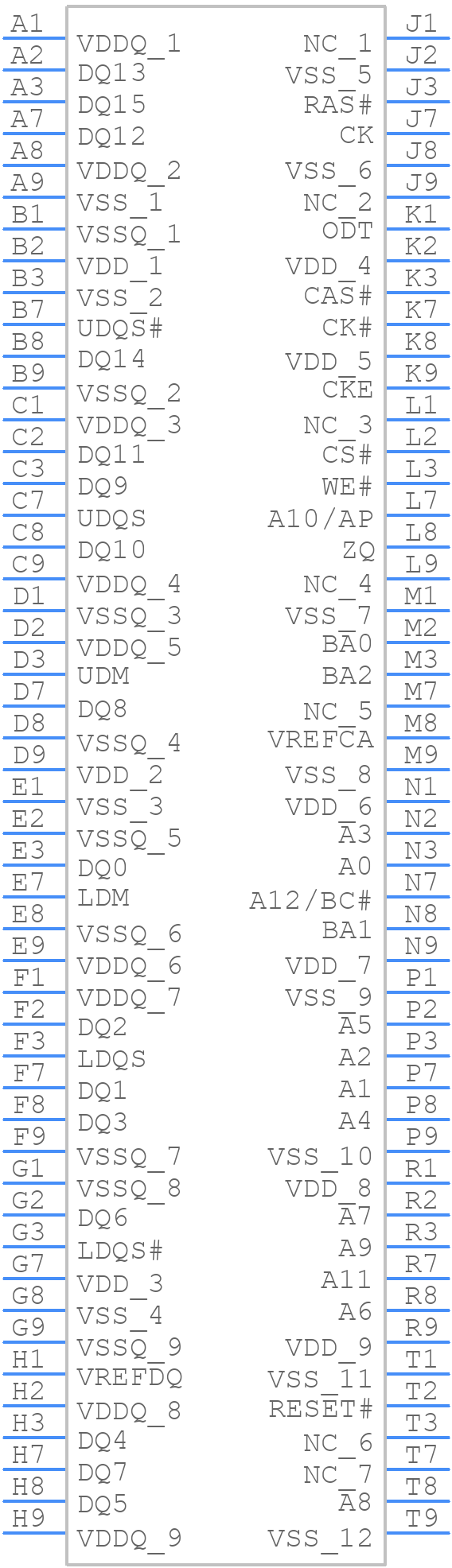

Part Symbol
-

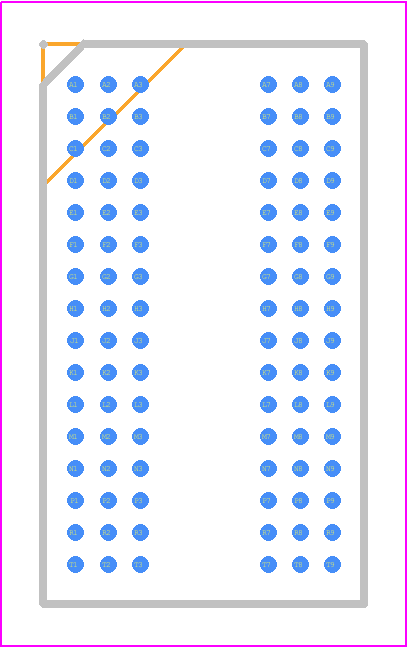

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
MT41K64M16TW-107:J Part Data Attributes
|
|
MT41K64M16TW-107:J
Micron Technology Inc
Buy Now
Datasheet
|
Compare Parts:
MT41K64M16TW-107:J
Micron Technology Inc
DDR DRAM, 64MX16, 0.195ns, CMOS, PBGA96, 8 X 14 MM, LEAD FREE, FBGA-96
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICRON TECHNOLOGY INC | |
| Package Description | FBGA-96 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.32.00.32 | |
| Factory Lead Time | 10 Weeks | |
| Samacsys Manufacturer | Micron | |
| Access Mode | MULTI BANK PAGE BURST | |
| Clock Frequency-Max (fCLK) | 933 MHz | |
| I/O Type | COMMON | |
| Interleaved Burst Length | 8 | |
| JESD-30 Code | R-PBGA-B96 | |
| JESD-609 Code | e1 | |
| Length | 14 mm | |
| Memory Density | 1073741824 bit | |
| Memory IC Type | DDR3L DRAM | |
| Memory Width | 16 | |
| Number of Functions | 1 | |
| Number of Ports | 1 | |
| Number of Terminals | 96 | |
| Number of Words | 67108864 words | |
| Number of Words Code | 64000000 | |
| Operating Mode | SYNCHRONOUS | |
| Operating Temperature-Max | 95 °C | |
| Operating Temperature-Min | ||
| Organization | 64MX16 | |
| Output Characteristics | 3-STATE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TFBGA | |
| Package Equivalence Code | BGA96,6X16,32 | |
| Package Shape | RECTANGULAR | |
| Package Style | GRID ARRAY, THIN PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Refresh Cycles | 8192 | |
| Seated Height-Max | 1.2 mm | |
| Self Refresh | YES | |
| Sequential Burst Length | 8 | |
| Standby Current-Max | 0.028 A | |
| Supply Current-Max | 0.219 mA | |
| Supply Voltage-Max (Vsup) | 1.45 V | |
| Supply Voltage-Min (Vsup) | 1.283 V | |
| Supply Voltage-Nom (Vsup) | 1.35 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Form | BALL | |
| Terminal Pitch | 0.8 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 8 mm |
Alternate Parts for MT41K64M16TW-107:J
This table gives cross-reference parts and alternative options found for MT41K64M16TW-107:J. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MT41K64M16TW-107:J, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MT41K64M16JT-107G:J | Micron Technology Inc | Check for Price | 64M X 16 DDR DRAM, PBGA96, 8 X 14 MM, LEAD FREE, FBGA-96 | MT41K64M16TW-107:J vs MT41K64M16JT-107G:J |
MT41K64M16TW-107:J Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the MT41K64M16TW-107:J is 0°C to 95°C.
-
To ensure signal integrity on the address and command bus, use a controlled impedance PCB design, keep the signal traces short, and use a termination scheme such as ODT (On-Die Termination) or a discrete resistor.
-
The recommended refresh rate for the MT41K64M16TW-107:J is 8192 refreshes per second, with a refresh interval of 7.8us.
-
The MT41K64M16TW-107:J is designed to operate at a voltage supply of 1.2V, but it can tolerate a voltage range of 1.14V to 1.26V. However, operating the module outside of its recommended voltage range may affect its performance and reliability.
-
Implement an error detection and correction mechanism, such as ECC (Error-Correcting Code) or CRC (Cyclic Redundancy Check), to detect and correct errors. Also, design a retry mechanism to handle errors that cannot be corrected.
