MUR860G Information
MUR860G by onsemi is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for MUR860G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
45J1749
|
Newark | Fast Diode, 8A, 600V, To-220Ac, Repetitive Peak Reverse Voltage:600V, Average Forward Current:8A, Diode Configuration:Single, Forward Voltage Max:1.5V, Reverse Recovery Time:50Ns, Forward Surge Current:100A, Diode Case Style:To-220Acrohs Compliant: Yes |Onsemi MUR860G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 559 |
|
$0.5770 / $0.6810 | Buy Now |
|
DISTI #
45J1749
|
Avnet Americas | - Bulk (Alt: 45J1749) COO: China RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Bulk | 624 Partner Stock |
|
$0.6460 / $1.3500 | Buy Now |
|
|
Bristol Electronics | Min Qty: 5 | 637 |
|
$0.3465 / $1.2375 | Buy Now |
|
|
Rochester Electronics | Rectifier Diode, Avalanche, 1 Phase, 1 Element, 8A, 600V V(RRM), Silicon, TO-220AC RoHS: Not Compliant Status: Active Min Qty: 1 | 810 |
|
$0.3943 / $0.6360 | Buy Now |
|
DISTI #
MUR860G
|
TME | Diode: rectifying, THT, 600V, 8A, tube, Ifsm: 100A, TO220AC, 50ns Min Qty: 1 | 216 |
|
$0.7700 / $1.1000 | Buy Now |
|
|
ComSIT USA | SWITCHMODE POWER RECTIFIER Rectifier Diode, Avalanche, 1 Phase, 1 Element, 8A, 600V V(RRM), Silicon, TO-220AC ECCN: EAR99 RoHS: Compliant |
|
|
RFQ | |
|
DISTI #
MUR860G
|
Richardson RFPD | RECTIFIER MODULE - FAST RECOVERY/FRED RoHS: Compliant Min Qty: 1350 | 0 |
|
$0.4700 | Buy Now |
|
|
Chip 1 Exchange | INSTOCK | 131235 |
|
RFQ | |
|
DISTI #
MUR860G
|
Avnet Asia | (Alt: MUR860G) RoHS: Compliant Min Qty: 1400 Package Multiple: 50 Lead time: 9 Weeks, 0 Days | 0 |
|
RFQ | |
|
DISTI #
MUR860G
|
Avnet Silica | (Alt: MUR860G) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 10 Weeks, 0 Days | Silica - 6600 |
|
Buy Now |
US Tariff Estimator: MUR860G by onsemi
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MUR860G
MUR860G CAD Models
-
Part Symbol
-

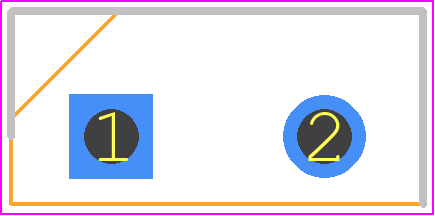

Footprint
-

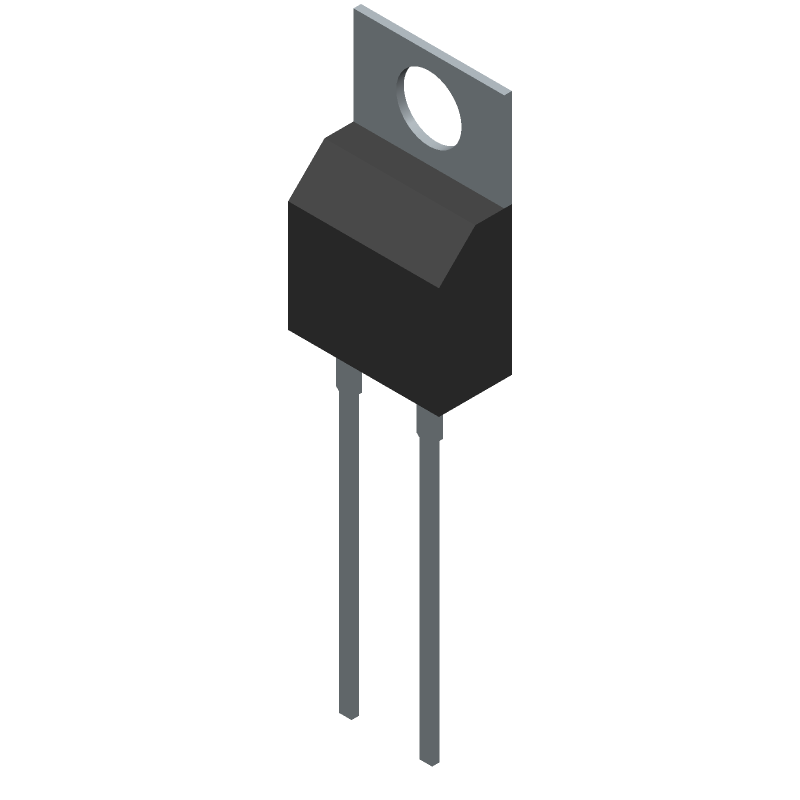

3D Model
