Part Details for MURS160T3G by onsemi
Overview of MURS160T3G by onsemi
- Distributor Offerings:
- Number of FFF Equivalents:
- CAD Models:
- Number of Functional Equivalents:
- Part Data Attributes
- Reference Designs:
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Price & Stock for MURS160T3G
| Distributor | Stock | Package | QTY Break / Prices |
|---|---|---|---|
|
|
0 Digi-Reel® |
Digi-Reel |
|
|
|
0 Cut Tape |
Cut Tape |
|
|
|
0 Tape & Reel |
Reel |
|
|
|
0 | Reel |
|
|
|
0 | Cut Tape |
|
|
|
0 | Cut Tape |
|
|
|
0 | Reel |
|
|
|
376 |
|
|
|
|
681 |
|
|
|
|
8 |
|
Part Details for MURS160T3G
MURS160T3G CAD Models
MURS160T3G Part Data Attributes
|
|
MURS160T3G
onsemi
Buy Now
Datasheet
|
Compare Parts:
MURS160T3G
onsemi

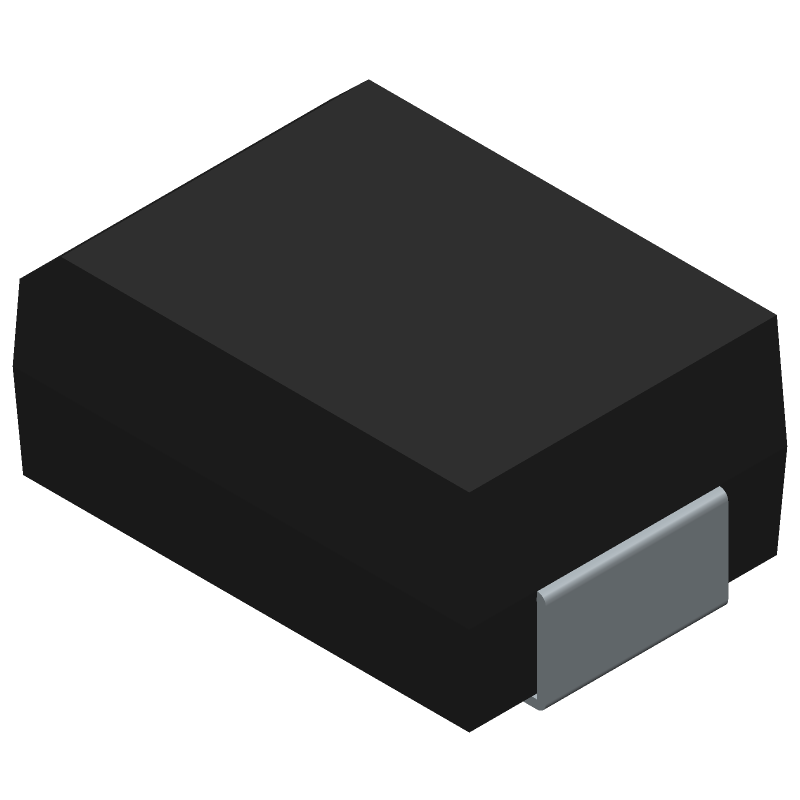

Power Rectifier, Ultra-Fast Recovery, 1 A, 600 V, SMB, 2500-REEL
|
| Source Content uid | MURS160T3G | |
| Pbfree Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ON SEMICONDUCTOR | |
| Part Package Code | SMB | |
| Package Description | SMB, 2 PIN | |
| Pin Count | 2 | |
| Manufacturer Package Code | 403A-03 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Factory Lead Time | 56 Weeks | |
| Date Of Intro | 1999-01-01 | |
| Samacsys Manufacturer | onsemi | |
| Additional Feature | FREE WHEELING DIODE | |
| Application | HIGH VOLTAGE ULTRA FAST RECOVERY POWER | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1.2 V | |
| JEDEC-95 Code | DO-214AA | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 35 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 175 °C | |
| Operating Temperature-Min | -65 °C | |
| Output Current-Max | 2 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 600 V | |
| Reverse Recovery Time-Max | 0.075 µs | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 40 |
Alternate Parts for MURS160T3G
This table gives cross-reference parts and alternative options found for MURS160T3G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MURS160T3G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Description | Manufacturer | Compare |
|---|---|---|---|
| MURS160T3 Diodes | Rectifier Diode, 1 Phase, 1 Element, 2A, 600V V(RRM), Silicon, | Motorola Semiconductor Products | MURS160T3G vs MURS160T3 |
