Memory / Flash Memories / MX25L3233FM1I-08G
Datasheets
MX25L3233FM1I-08G by:
Macronix International Co Ltd

Flash, 8MX4, PDSO8, SOP-8

Part Details for MX25L3233FM1I-08G by Macronix International Co Ltd

Results Overview of MX25L3233FM1I-08G by Macronix International Co Ltd

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Entertainment and Gaming

MX25L3233FM1I-08G Information

MX25L3233FM1I-08G by Macronix International Co Ltd is a Flash Memory.
Flash Memories are under the broader part category of Memory Components.

Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.

Price & Stock for MX25L3233FM1I-08G

Part # Distributor Description Stock Price Buy
DISTI # 07AH6743
Newark Flash Memory, 32Mbit, 133Mhz, 3.6V, Sop, Flash Memory Type:Serial Nor, Memory Configuration:4M X 8Bit, Interfaces:Spi, Ic Case/Package:Sop, No. Of Pins:8Pins, Clock Frequency Max:133Mhz, Access Time:-, Supply Voltage Min:2.65V Rohs Compliant: Yes |Macronix MX25L3233FM1I-08G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 554
  • 1 $0.8500
  • 10 $0.7290
  • 100 $0.5590
  • 500 $0.4950
  • 1,000 $0.4310
  • 2,500 $0.3650
  • 10,000 $0.3610
$0.3610 / $0.8500 Buy Now
DISTI # MX25L3233FM1I-08G
Avnet Americas Flash Memory, Serial NOR, 32 Mbit, 4M x 8bit, SPI, SOP, 8 Pins - Rail/Tube (Alt: MX25L3233FM1I-08G) COO: Taiwan (Province of China) RoHS: Compliant Min Qty: 29792 Package Multiple: 98 Lead time: 12 Weeks, 0 Days Container: Tube 0
  • 29,792 $0.4637
  • 59,584 $0.4613
  • 119,168 $0.4590
  • 238,336 $0.4566
  • 476,672 $0.4543
$0.4543 / $0.4637 Buy Now
DISTI # MX25L3233FM1I-08G
TME IC: FLASH memory, 32MbFLASH, SPI, 133MHz, 2.65÷3.6V, SOP8, serial Min Qty: 1 193
  • 1 $1.5000
  • 5 $1.3500
  • 25 $1.1200
  • 98 $0.9200
$0.9200 / $1.5000 Buy Now
DISTI # MX25L3233FM1I-08G/TUBE
Avnet Silica Flash Memory Serial NOR 32 Mbit 4M x 8bit SPI SOP 8 Pins (Alt: MX25L3233FM1I-08G/TUBE) RoHS: Compliant Min Qty: 98 Package Multiple: 98 Lead time: 12 Weeks, 0 Days Silica - 21560
Buy Now
Chip Stock NORFlashSerial-SPI3V/3.3V32M-bit32M/16M/8Mx1/2-bit/4-bit8ns8-PinSOP 437500
RFQ
New Advantage Corporation   RoHS: Compliant Min Qty: 1 Package Multiple: 98 14896
  • 294 $0.7583
  • 14,896 $0.7000
$0.7000 / $0.7583 Buy Now
Win Source Electronics NOR Flash Serial-SPI 3V/3.3V 32M-bit 32M/16M/8M x 1/2-bit/4-bit 8ns 8-Pin SOP | IC FLASH SERIAL NOR 32MBIT 8SOP 95000
  • 150 $0.3409
  • 360 $0.2798
  • 555 $0.2710
  • 765 $0.2623
  • 990 $0.2535
  • 1,320 $0.2273
$0.2273 / $0.3409 Buy Now

US Tariff Estimator: MX25L3233FM1I-08G by Macronix International Co Ltd

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

MX25L3233FM1I-08G
Macronix International Co Ltd
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for MX25L3233FM1I-08G

MX25L3233FM1I-08G CAD Models

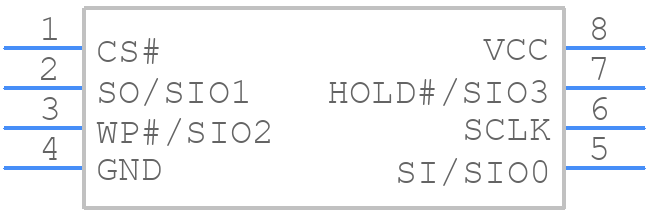

  • Part Symbol

    schematic symbol

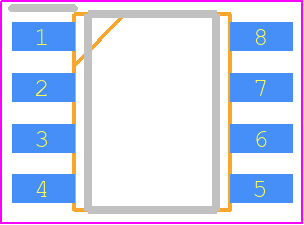

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MX25L3233FM1I-08G Part Data Attributes

Parametric Data
MX25L3233FM1I-08G Macronix International Co Ltd
Buy Now Datasheet
Compare Parts:
MX25L3233FM1I-08G Macronix International Co Ltd Flash, 8MX4, PDSO8, SOP-8
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MACRONIX INTERNATIONAL CO LTD
Package Description SOP, SOP8,.25
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8542.32.00.51
Factory Lead Time 10 Weeks
Samacsys Manufacturer Macronix
Additional Feature ALSO ORGANISED AS 32MX1
Alternate Memory Width 4
Clock Frequency-Max (fCLK) 133 MHz
Data Retention Time-Min 20
Endurance 100000 Write/Erase Cycles
JESD-30 Code R-PDSO-G8
JESD-609 Code e3
Length 4.9 mm
Memory Density 33554432 bit
Memory IC Type FLASH
Memory Width 8
Number of Functions 1
Number of Terminals 8
Number of Words 4194304 words
Number of Words Code 4000000
Operating Mode SYNCHRONOUS
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Organization 4MX8
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Parallel/Serial SERIAL
Programming Voltage 3 V
Seated Height-Max 1.75 mm
Serial Bus Type SPI
Standby Current-Max 0.00005 A
Supply Current-Max 0.017 mA
Supply Voltage-Max (Vsup) 3.6 V
Supply Voltage-Min (Vsup) 2.65 V
Supply Voltage-Nom (Vsup) 3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Type NOR TYPE
Width 3.9 mm
Write Protection HARDWARE/SOFTWARE
equivalents icon

MX25L3233FM1I-08G Related Parts

MX25L3233FM1I-08G Frequently Asked Questions (FAQ)

  • The MX25L3233FM1I-08G has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on the usage and operating conditions.

  • The HOLD# signal should be kept low during read and write operations. When HOLD# is high, the device will ignore any read or write requests and will not respond to any commands.

  • The recommended power-up sequence is to apply VCC first, followed by VPP (if used), and then the clock signal. This ensures that the device is properly initialized and ready for operation.

  • The WP# signal should be tied low to enable write operations. When WP# is high, the device will be in read-only mode and write operations will be blocked.

  • The maximum operating frequency for the MX25L3233FM1I-08G is 133 MHz.
