NCV2951CDR2G Information
NCV2951CDR2G by onsemi is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for NCV2951CDR2G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
26AM4042
|
Newark | Ana 0.1A Adj Out Ldo Reg |Onsemi NCV2951CDR2G RoHS: Not Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel | 62500 |
|
$0.1890 / $0.2520 | Buy Now |
|
DISTI #
26K5006
|
Newark | Ic, volt Regulator, fixed/Adjustable,+5V/+1.24 To +29V, bipolar, sop,8Pin, plastic Rohs Compliant: Yes |Onsemi NCV2951CDR2G RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1890 / $0.2520 | Buy Now |
|
DISTI #
NCV2951CDR2G
|
Avnet Americas | LDO Regulator, 100 mA, Ultra-Low Iq Vout: 5.0 V or Adj, ?1.0%. ONSSPCLDO, - Tape and Reel (Alt: NCV2951CDR2G) COO: Philippines (the) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 6 Weeks, 0 Days Container: Reel | 625004 Factory Stock |
|
$0.1106 / $0.1185 | Buy Now |
|
DISTI #
70467184
|
RS | VOLTAGE REGULATORS, LDO, 1.25-29V ADJ 100MA W/ERROR FLAG Min Qty: 10 Package Multiple: 1 Container: Bulk | 0 |
|
$0.2430 | RFQ |
|
|
Bristol Electronics | Min Qty: 9 | 60 |
|
$0.3656 / $0.5625 | Buy Now |
|
|
Rochester Electronics | NCV2951 - LDO Regulator, 100 mA, Ultra-Low Iq Vout: 5.0 V or Adj, 1.0% RoHS: Compliant Status: Active Min Qty: 1 | 7500 |
|
$0.1540 / $0.2484 | Buy Now |
|
DISTI #
NCV2951CDR2G
|
TME | IC: voltage regulator, LDO,linear,adjustable, 1.25÷29V, 0.1A, SO8 Min Qty: 1 | 0 |
|
$0.2100 / $0.3600 | RFQ |
|
|
Chip 1 Exchange | INSTOCK | 48750 |
|
RFQ | |
|
DISTI #
NCV2951CDR2G
|
Avnet Asia | LDO Regulator, 100 mA, Ultra-Low Iq Vout: 5.0 V or Adj, ?1.0%. ONSSPCLDO, (Alt: NCV2951CDR2G) RoHS: Compliant Min Qty: 7500 Package Multiple: 2500 Lead time: 8 Weeks, 0 Days | 37500 |
|
RFQ | |
|
DISTI #
NCV2951CDR2G
|
Avnet Silica | LDO Regulator 100 mA UltraLow Iq Vout 50 V or Adj 10 ONSSPCLDO (Alt: NCV2951CDR2G) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 9 Weeks, 0 Days | Silica - 5000 |
|
Buy Now |
US Tariff Estimator: NCV2951CDR2G by onsemi
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for NCV2951CDR2G
NCV2951CDR2G CAD Models
-

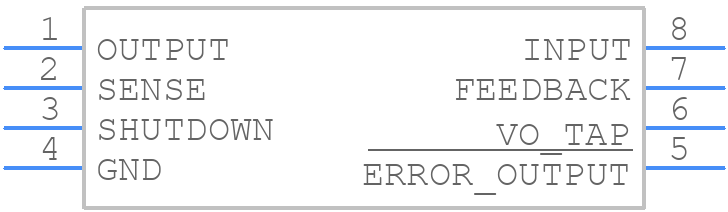

Part Symbol
-
