NLAS4684MR2G Information
NLAS4684MR2G by onsemi is a Multiplexer or Switch.
Multiplexers or Switches are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for NLAS4684MR2G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
71J6945
|
Newark | Ic, analog Switch, dual, spdt, cmos, tssop,10Pin, plastic Rohs Compliant: Yes |Onsemi NLAS4684MR2G RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
Buy Now | |
|
DISTI #
81Y6985
|
Newark | Analogue Sw, Spdt, -55 To 125Deg C, Ic Function:Analog Switch, Power Supply Type:Single Supply, Supply Voltage Range:1.8V To 5.5V, Ic Case/Package:Μpak, No. Of Pins:10Pins, No. Of Channels:2Channels, On Resistance Typ:- Rohs Compliant: Yes |Onsemi NLAS4684MR2G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
Buy Now | |
|
DISTI #
70467405
|
RS | NLAS4684MR2G, ANALOGUE SWITCH DUAL SPDT, 1.8 - 5.5 V, 10-PIN MSOP Min Qty: 20 Package Multiple: 1 Container: Bulk | 0 |
|
$0.8000 / $0.9500 | RFQ |
|
|
Rochester Electronics | SPDT, 2 Func, 1 Channel, CMOS, PDSO10 RoHS: Compliant Status: End of Life / Last Time Buy Min Qty: 1 | 676638 |
|
$0.3452 / $0.5568 | Buy Now |
|
|
Chip Stock | DualSPDT1.8to5.5V800mOUltra-LowResistanceAnalogSwitch-Micro-10 | 23500 |
|
RFQ | |
|
|
Flip Electronics | Stock, ship today | 4011 |
|
RFQ | |
|
|
Win Source Electronics | IC SWITCH DUAL SPDT MICRO10 | 20000 |
|
$0.7553 / $0.9755 | Buy Now |
US Tariff Estimator: NLAS4684MR2G by onsemi
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for NLAS4684MR2G
NLAS4684MR2G CAD Models
-

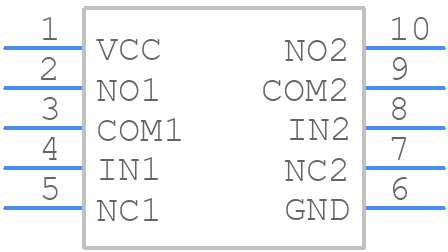

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
NLAS4684MR2G Part Data Attributes
|
|
NLAS4684MR2G
onsemi
Buy Now
Datasheet
|
Compare Parts:
NLAS4684MR2G
onsemi
Analog Switch, Dual SPDT, 0.5 Ohm, C/O FOR MICRO 10 PKG, 4000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | C/O FOR MICRO 10 PKG | |
| Pin Count | 10 | |
| Manufacturer Package Code | 846B | |
| Reach Compliance Code | Compliant | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 2 Days | |
| Samacsys Manufacturer | onsemi | |
| Analog IC - Other Type | SPDT | |
| JESD-30 Code | S-PDSO-G10 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Moisture Sensitivity Level | 1 | |
| Normal Position | NC | |
| Number of Channels | 1 | |
| Number of Functions | 2 | |
| Number of Terminals | 10 | |
| Off-state Isolation-Nom | 65 dB | |
| On-state Resistance Match-Nom | 0.06 Ω | |
| On-state Resistance-Max (Ron) | 1 Ω | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output | SEPARATE OUTPUT | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP10,.19,20 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.1 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 1.8 V | |
| Supply Voltage-Nom (Vsup) | 3 V | |
| Surface Mount | YES | |
| Switch-off Time-Max | 50 ns | |
| Switch-on Time-Max | 60 ns | |
| Switching | BREAK-BEFORE-MAKE | |
| Technology | CMOS | |
| Temperature Grade | MILITARY | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm |
