Part Details for NSI50150ADT4G by onsemi
Results Overview of NSI50150ADT4G by onsemi
- Distributor Offerings: (14 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
NSI50150ADT4G Information
NSI50150ADT4G by onsemi is a Display Driver.
Display Drivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for NSI50150ADT4G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
37X6737
|
Newark | Led Driver, Aec-Q101, 10Mhz, To-252, No. Of Channels:1Channels, Output Current Max:350Ma, Output Voltage Max:-, Ic Case/Package:To-252 (Dpak), No. Of Pins:4Pins, Input Voltage Min:-, Input Voltage Max:-, Ic Mounting:Surface Mount Rohs Compliant: Yes |Onsemi NSI50150ADT4G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 11 |
|
$0.5950 / $1.6900 | Buy Now |
|
DISTI #
97W6363
|
Newark | Dpak 150Ma Rohs Compliant: Yes |Onsemi NSI50150ADT4G RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.3580 / $0.4770 | Buy Now |
|
DISTI #
NSI50150ADT4G
|
Avnet Americas | LED Driver, Adjustable Constant Current Regulator, 50 V, 150 - 350 mA. ONSSPCPRTCNZZ1J5W, - Tape and Reel (Alt: NSI50150ADT4G) COO: Czechia RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 23 Weeks, 0 Days Container: Reel | 1 Factory Stock |
|
$0.3005 / $0.3067 | Buy Now |
|
DISTI #
73942290
|
RS | REGULATOR, ADJUSTABLE, CC, LED DRIVER, 50V, 150-350MA, 4.2W, DPAK Min Qty: 10 Package Multiple: 1 Lead time: 2 Weeks, 0 Days Container: Bulk | 0 |
|
$1.7500 / $1.9500 | RFQ |
|
DISTI #
NSI50150ADT4G
|
IBS Electronics | LED DRIVER ADJUSTABLE CONSTANT CURRENT REGULATOR 50 V 150 - 350 MA Min Qty: 2500 Package Multiple: 1 | 7500 |
|
$0.4950 / $0.5177 | Buy Now |
|
DISTI #
NSI50150ADT4G
|
Richardson RFPD | LED DRIVER IC RoHS: Compliant Min Qty: 2500 | 0 |
|
$0.3500 | Buy Now |
|
|
Chip 1 Exchange | INSTOCK | 4010 |
|
RFQ | |
|
DISTI #
NSI50150ADT4G
|
Avnet Asia | LED Driver, Adjustable Constant Current Regulator, 50 V, 150 - 350 mA. ONSSPCPRTCNZZ1J5W, (Alt: NSI50150ADT4G) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 23 Weeks, 0 Days | 0 |
|
RFQ | |
|
DISTI #
NSI50150ADT4G
|
Avnet Silica | LED Driver Adjustable Constant Current Regulator 50 V 150 350 mA ONSSPCPRTCNZZ1J5W (Alt: NSI50150ADT4G) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 24 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
NSI50150ADT4G
|
Chip One Stop | Opto-electronics RoHS: Compliant Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 1815 |
|
$0.3130 / $1.2000 | Buy Now |
US Tariff Estimator: NSI50150ADT4G by onsemi
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for NSI50150ADT4G
NSI50150ADT4G CAD Models
-

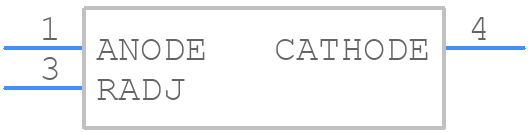

Part Symbol
-

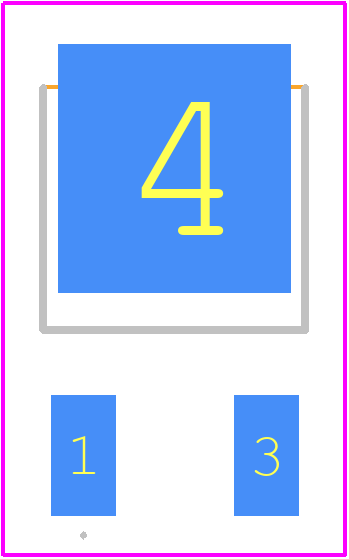

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
NSI50150ADT4G Part Data Attributes
|
|
NSI50150ADT4G
onsemi
Buy Now
Datasheet
|
Compare Parts:
NSI50150ADT4G
onsemi
LED Driver, Adjustable Constant Current Regulator, 50 V, 150 - 350 mA, DPAK (SINGLE GAUGE) TO-252, 2500-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | DPAK (SINGLE GAUGE) TO-252 | |
| Pin Count | 3 | |
| Manufacturer Package Code | 369C | |
| Reach Compliance Code | Not Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Interface IC Type | Led Display Driver | |
| JESD-30 Code | R-PSSO-G2 | |
| JESD-609 Code | e3 | |
| Length | 6.54 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Equivalence Code | SMSIP3H,.38,90TB | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 2.38 Mm | |
| Surface Mount | Yes | |
| Temperature Grade | Military | |
| Terminal Finish | Matte Tin (Sn) - Annealed | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 2.29 Mm | |
| Terminal Position | Single | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 6.095 Mm | |
| fmax-Min | 0.1 Mhz |
NSI50150ADT4G Frequently Asked Questions (FAQ)
-
A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
-
Ensure proper heat sinking, use a thermal interface material, and follow the recommended PCB layout. Also, consider derating the device's power dissipation at high temperatures.
-
The SOA is typically defined by the device's voltage and current ratings. For the NSI50150ADT4G, the SOA is limited by the maximum voltage rating of 50V and the maximum current rating of 15A.
-
Use ESD protection devices, such as TVS diodes or ESD suppressors, on the input and output pins. Also, follow proper handling and storage procedures to prevent ESD damage.
-
Store the devices in their original packaging or in a dry, ESD-protected environment. Handle the devices by the body or leads, avoiding touching the die or pins. Use ESD wrist straps or mats when handling the devices.
