NTMFS5C410NLT1G by: onsemi

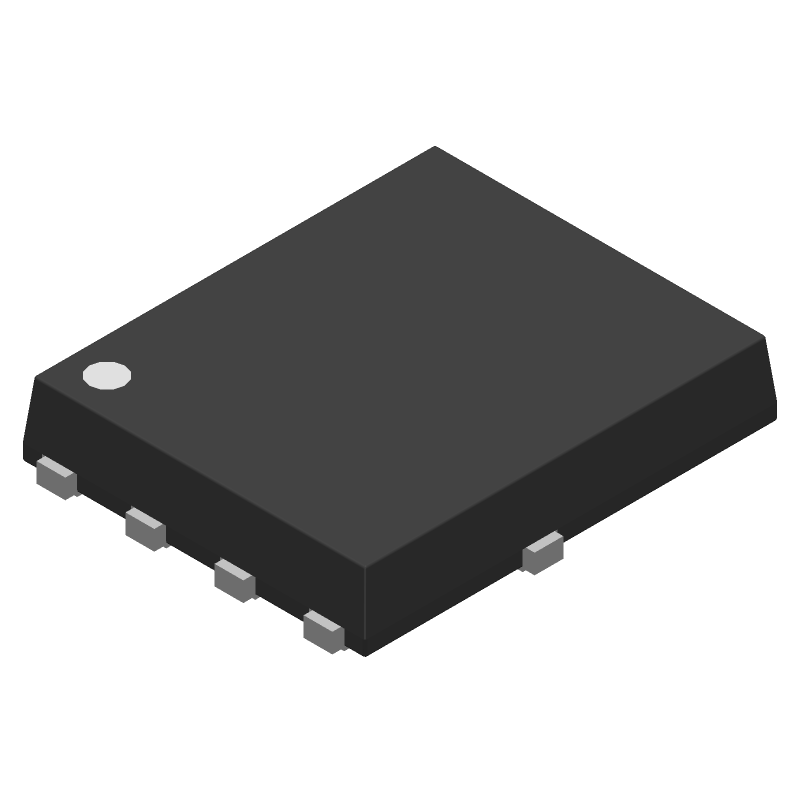

Single N−Channel Power MOSFET 40V, 330A, 0.82mΩ, SO-8FL / DFN-5, 1500-REEL

Part Details for NTMFS5C410NLT1G by onsemi

Results Overview of NTMFS5C410NLT1G by onsemi

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Transportation and Logistics Renewable Energy Automotive

NTMFS5C410NLT1G Information

NTMFS5C410NLT1G by onsemi is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.

A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.

Price & Stock for NTMFS5C410NLT1G

Part # Distributor Description Stock Price Buy
DISTI # 68X4387
Newark Nfet So8Fl 40V 312A 900Mo Rohs Compliant: Yes |Onsemi NTMFS5C410NLT1G RoHS: Compliant Min Qty: 1500 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1 $1.4700
  • 3,000 $1.3800
  • 6,000 $1.3100
  • 12,000 $1.1800
  • 18,000 $1.1400
  • 30,000 $1.1000
$1.1000 / $1.4700 Buy Now
DISTI # NTMFS5C410NLT1G
Avnet Americas - Tape and Reel (Alt: NTMFS5C410NLT1G) COO: Malaysia RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 Lead time: 8 Weeks, 0 Days Container: Reel 19500 Factory Stock
  • 1,500 $1.2474
  • 3,000 $1.1800
  • 6,000 $1.1489
  • 9,000 $1.1195
  • 12,000 $1.0915
$1.0915 / $1.2474 Buy Now
Rochester Electronics Power Field-Effect Transistor, 330A I(D), 40V, 0.0012ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET RoHS: Not Compliant Status: Active Min Qty: 1 21647
  • 100 $1.4800
  • 500 $1.3300
  • 1,000 $1.2300
  • 10,000 $1.1000
  • 100,000 $0.9176
$0.9176 / $1.4800 Buy Now
DISTI # NTMFS5C410NLT1G
TME Transistor: N-MOSFET, unipolar, 40V, 330A, Idm: 900A, 56W, DFN5 Min Qty: 1500 0
  • 1,500 $1.5400
$1.5400 RFQ
DISTI # NTMFS5C410NLT1G
Richardson RFPD POWER MOSFET TRANSISTOR RoHS: Compliant Min Qty: 1500 0
  • 1,500 $1.0900
$1.0900 Buy Now
DISTI # NTMFS5C410NLT1G
Avnet Asia (Alt: NTMFS5C410NLT1G) RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 Lead time: 8 Weeks, 0 Days 0
  • 1,500 $1.2474
  • 3,000 $1.1643
  • 4,500 $1.1340
  • 7,500 $1.1053
  • 15,000 $1.0780
  • 37,500 $1.0520
  • 75,000 $1.0273
$1.0273 / $1.2474 Buy Now
DISTI # NTMFS5C410NLT1G
Avnet Silica (Alt: NTMFS5C410NLT1G) RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 Lead time: 9 Weeks, 0 Days Silica - 0
Buy Now
Chip Stock PowerMOSFET,NChannel,40V,330A,0.82Milliohms,DFN,5Pins,SurfaceMount 73258
RFQ
DISTI # NTMFS5C410NLT1G
EBV Elektronik (Alt: NTMFS5C410NLT1G) RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 Lead time: 10 Weeks, 0 Days EBV - 0
Buy Now
LCSC 40V 330A 1.2m4.5V 139W 2V250uA 1 N-Channel SO-8FL Single FETs MOSFETs RoHS 266
  • 1 $0.8794
  • 10 $0.7113
  • 30 $0.6272
  • 100 $0.4998
  • 500 $0.4502
  • 1,500 $0.4247
$0.4247 / $0.8794 Buy Now
Win Source Electronics MOSFET N-CH 40V 46A SO8FL / Power MOSFET 60758
  • 70 $0.7256
  • 150 $0.6788
  • 230 $0.6554
  • 330 $0.6086
  • 430 $0.5852
  • 535 $0.5618
$0.5618 / $0.7256 Buy Now

Part Details for NTMFS5C410NLT1G

NTMFS5C410NLT1G Part Data Attributes

Parametric Data
NTMFS5C410NLT1G onsemi
Buy Now Datasheet
Compare Parts:
NTMFS5C410NLT1G onsemi Single N−Channel Power MOSFET 40V, 330A, 0.82mΩ, SO-8FL / DFN-5, 1500-REEL
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ONSEMI
Part Package Code SO-8FL / DFN-5
Manufacturer Package Code 488AA
Reach Compliance Code Not Compliant
ECCN Code EAR99
Factory Lead Time 53 Weeks
Samacsys Manufacturer onsemi
Avalanche Energy Rating (Eas) 706 mJ
Case Connection DRAIN
Configuration SINGLE WITH BUILT-IN DIODE
DS Breakdown Voltage-Min 40 V
Drain Current-Max (ID) 330 A
Drain-source On Resistance-Max 0.0012 Ω
FET Technology METAL-OXIDE SEMICONDUCTOR
JESD-30 Code R-PDSO-F5
JESD-609 Code e3
Moisture Sensitivity Level 1
Number of Elements 1
Number of Terminals 5
Operating Mode ENHANCEMENT MODE
Operating Temperature-Max 175 °C
Operating Temperature-Min -55 °C
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Polarity/Channel Type N-CHANNEL
Power Dissipation-Max (Abs) 139 W
Pulsed Drain Current-Max (IDM) 900 A
Surface Mount YES
Terminal Finish Matte Tin (Sn) - annealed
Terminal Form FLAT
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Transistor Element Material SILICON

Alternate Parts for NTMFS5C410NLT1G

This table gives cross-reference parts and alternative options found for NTMFS5C410NLT1G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of NTMFS5C410NLT1G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
NTMJS0D9N04CLTWG onsemi $1.7993 Power MOSFET 40 V, 0.82Ω, 330 A, Single N-Channel, LFPAK-8, 3000-REEL NTMFS5C410NLT1G vs NTMJS0D9N04CLTWG
NVMJS0D9N04CLTWG onsemi $2.2599 Power MOSFET 40 V, 0.82mΩ, 330 A, Single N-Channel, LFPAK-8, 3000-REEL, Automotive Qualified NTMFS5C410NLT1G vs NVMJS0D9N04CLTWG
NTMFS5C410NLTT1G onsemi Check for Price Single N-Channel Power MOSFET 40V, 330A, 0.82mΩ 40V SO8FL Single N 175C, SO-8FL / DFN-5, 1500-REEL NTMFS5C410NLT1G vs NTMFS5C410NLTT1G
NTMFS5C410NLTWFT1G onsemi Check for Price Single N-Channel Power MOSFET 40V, 330A, 0.82mΩ wettable flanks, SO-8FL / DFN-5, 1500-REEL NTMFS5C410NLT1G vs NTMFS5C410NLTWFT1G
NTMFS5C410NLTT3G onsemi Check for Price Single N-Channel Power MOSFET 40V, 330A, 0.82mΩ, SO-8FL / DFN-5, 5000-REEL NTMFS5C410NLT1G vs NTMFS5C410NLTT3G
NTMFS5C410NLTWFT3G onsemi Check for Price Single N-Channel Power MOSFET 40V, 330A, 0.82mΩ wettable flanks, SO-8FL / DFN-5, 5000-REEL NTMFS5C410NLT1G vs NTMFS5C410NLTWFT3G
equivalents icon

NTMFS5C410NLT1G Related Parts

NTMFS5C410NLT1G Frequently Asked Questions (FAQ)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.

  • Ensure proper thermal design, use a heat sink if necessary, and follow the recommended operating conditions. Also, consider using a thermistor or thermal monitoring IC to monitor the device temperature.

  • The maximum allowed voltage on the input pins is 5.5V, but it's recommended to keep it below 5V to ensure reliable operation and prevent damage to the device.

  • Yes, the NTMFS5C410NLT1G is AEC-Q101 qualified and suitable for high-reliability and automotive applications. However, ensure that you follow the recommended operating conditions and design guidelines.

  • Use ESD protection devices such as TVS diodes or ESD arrays on the input pins to protect the device from electrostatic discharge. Follow the recommended PCB layout and design guidelines for ESD protection.
