NUP4304MR6T1G Information
NUP4304MR6T1G by onsemi is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for NUP4304MR6T1G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
90W9325
|
Newark | Esd Protection Device, 70 V, Tsop, 6 Rohs Compliant: Yes |Onsemi NUP4304MR6T1G RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 6202 |
|
$0.1630 / $0.4670 | Buy Now |
|
DISTI #
45J2207
|
Newark | Transient Suppressor Diode Array, bidirectional,70V V(Rwm),tsop Rohs Compliant: Yes |Onsemi NUP4304MR6T1G RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1520 / $0.2090 | Buy Now |
|
DISTI #
NUP4304MR6T1G
|
Avnet Americas | - Tape and Reel (Alt: NUP4304MR6T1G) COO: Malaysia RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 13 Weeks, 0 Days Container: Reel | 0 |
|
$0.1025 / $0.1122 | Buy Now |
|
|
Bristol Electronics | 88 |
|
RFQ | ||
|
|
Rochester Electronics | Trans Voltage Suppressor Diode, 70V V(RWM), Unidirectional, 8 Element, Silicon RoHS: Compliant Status: Active Min Qty: 1 | 91445 |
|
$0.0874 / $0.1410 | Buy Now |
|
DISTI #
NUP4304MR6T1G
|
TME | Diode: TVS array, bidirectional, SC74, Ch: 4, reel,tape Min Qty: 1 | 0 |
|
$0.1460 / $0.4300 | RFQ |
|
DISTI #
NUP4304MR6T1G
|
Richardson RFPD | TVS RoHS: Compliant Min Qty: 9000 | 0 |
|
$0.1000 | Buy Now |
|
DISTI #
NUP4304MR6T1G
|
Avnet Asia | (Alt: NUP4304MR6T1G) RoHS: Compliant Min Qty: 9000 Package Multiple: 3000 Lead time: 13 Weeks, 0 Days | 0 |
|
RFQ | |
|
DISTI #
NUP4304MR6T1G
|
Avnet Silica | (Alt: NUP4304MR6T1G) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 14 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
NUP4304MR6T1G
|
EBV Elektronik | (Alt: NUP4304MR6T1G) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 15 Weeks, 0 Days | EBV - 6000 |
|
Buy Now |
US Tariff Estimator: NUP4304MR6T1G by onsemi
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for NUP4304MR6T1G
NUP4304MR6T1G CAD Models
-

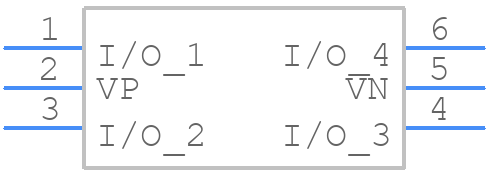

Part Symbol
-
Footprint
-

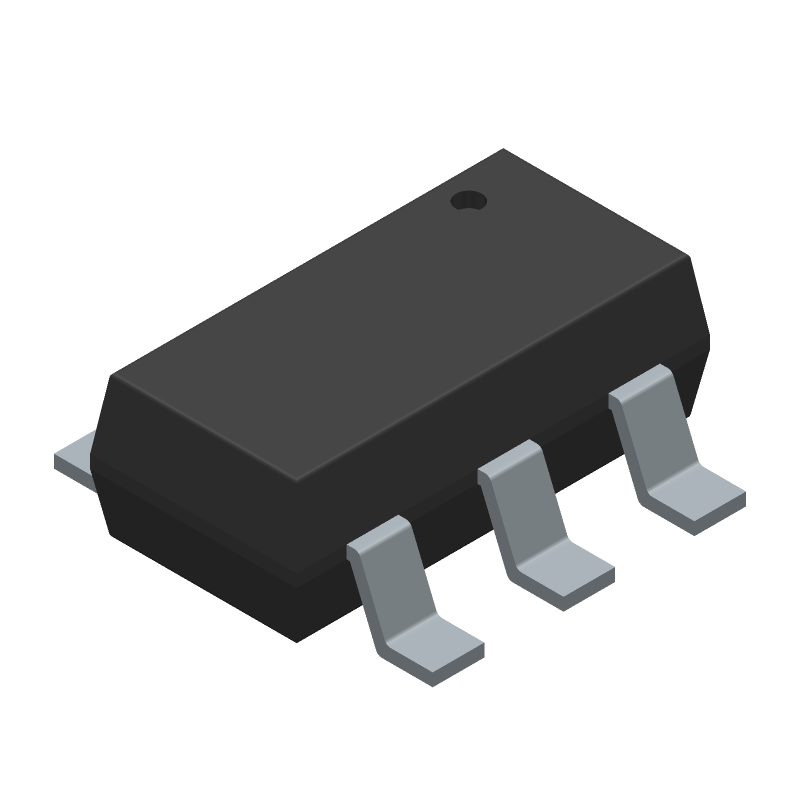

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
NUP4304MR6T1G Part Data Attributes
|
|
NUP4304MR6T1G
onsemi
Buy Now
Datasheet
|
Compare Parts:
NUP4304MR6T1G
onsemi
Low Capacitance Diode Array for ESD Protection, SC-74 (SC-59ML) 6 LEAD, 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SC-74 (SC-59ML) 6 LEAD | |
| Package Description | Tsop-6 | |
| Pin Count | 6 | |
| Manufacturer Package Code | 318F-05 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 10 Weeks | |
| Additional Feature | Low Capacitance | |
| Breakdown Voltage-Min | 70 V | |
| Configuration | Complex, 4 Channel | |
| Diode Element Material | Silicon | |
| Diode Type | Trans Voltage Suppressor Diode | |
| Forward Voltage-Max (VF) | 1.25 V | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 8 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | Unidirectional | |
| Qualification Status | Not Qualified | |
| Reference Standard | Iec-61000-4-2 | |
| Rep Pk Reverse Voltage-Max | 70 V | |
| Reverse Current-Max | 2.5 µA | |
| Reverse Test Voltage | 70 V | |
| Surface Mount | Yes | |
| Technology | Avalanche | |
| Terminal Finish | Matte Tin | |
| Terminal Form | Gull Wing | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Alternate Parts for NUP4304MR6T1G
This table gives cross-reference parts and alternative options found for NUP4304MR6T1G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of NUP4304MR6T1G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| DALC208SC6 | STMicroelectronics | $0.1856 | LOW CAPACITANCE DIODE ARRAY | NUP4304MR6T1G vs DALC208SC6 |
| DALC208SC6Y | STMicroelectronics | $0.2715 | Automotive low capacitance diode array for ESD protection | NUP4304MR6T1G vs DALC208SC6Y |
