NVMFS5C442NLAFT1G by: onsemi

Single N-Channel Power MOSFET 40V, 130A, 2.5mΩ 1500 / Tape & Reel., SO-8FL / DFN-5, 1500-REEL, Automotive Qualified

Part Details for NVMFS5C442NLAFT1G by onsemi

Results Overview of NVMFS5C442NLAFT1G by onsemi

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Transportation and Logistics Renewable Energy Automotive

NVMFS5C442NLAFT1G Information

NVMFS5C442NLAFT1G by onsemi is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.

A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.

Price & Stock for NVMFS5C442NLAFT1G

Part # Distributor Description Stock Price Buy
DISTI # 54AH9530
Newark Mosfet, N-Ch, 40V, 130A, 175Deg C, 83W Rohs Compliant: Yes |Onsemi NVMFS5C442NLAFT1G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 325
  • 1 $2.4600
  • 10 $1.8000
  • 25 $1.6700
  • 50 $1.5500
  • 100 $1.4200
  • 250 $1.3400
  • 500 $1.2600
  • 1,000 $1.0500
$1.0500 / $2.4600 Buy Now
DISTI # NVMFS5C442NLAFT1G
Avnet Americas - Tape and Reel (Alt: NVMFS5C442NLAFT1G) COO: Japan RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 Lead time: 19 Weeks, 0 Days Container: Reel 4500 Factory Stock
  • 1,500 $0.8229
  • 3,000 $0.7784
  • 6,000 $0.7579
  • 9,000 $0.7385
  • 12,000 $0.7200
$0.7200 / $0.8229 Buy Now
DISTI # NVMFS5C442NLAFT1G
TME Transistor: N-MOSFET, unipolar, 40V, 130A, Idm: 900A, 42W, DFN5 Min Qty: 1 0
  • 1 $2.0300
  • 10 $1.4100
  • 100 $1.0600
  • 250 $1.0100
$1.0100 / $2.0300 RFQ
DISTI # NVMFS5C442NLAFT
Richardson RFPD POWER MOSFET TRANSISTOR RoHS: Compliant Min Qty: 1500 0
  • 1,500 $0.7200
$0.7200 Buy Now
Chip 1 Exchange INSTOCK 7540
RFQ
DISTI # NVMFS5C442NLAFT1G
Avnet Asia (Alt: NVMFS5C442NLAFT1G) RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 Lead time: 19 Weeks, 0 Days 0
RFQ
DISTI # NVMFS5C442NLAFT1G
Avnet Silica (Alt: NVMFS5C442NLAFT1G) RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 Lead time: 20 Weeks, 0 Days Silica - 0
Buy Now
DISTI # NVMFS5C442NLAFT1G
EBV Elektronik (Alt: NVMFS5C442NLAFT1G) RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 Lead time: 21 Weeks, 0 Days EBV - 0
Buy Now
LCSC 40V 2m10V50A 1 N-Channel SO-8FL Single FETs MOSFETs RoHS 50
  • 1 $1.6701
  • 10 $1.4280
  • 30 $1.2764
  • 100 $1.1201
  • 500 $1.0496
  • 1,500 $1.0190
$1.0190 / $1.6701 Buy Now
Wuhan P&S 40V��130A��2.5m��,N-Channel Power MOSFET Min Qty: 1 5800
  • 1 $2.0100
  • 100 $1.2900
  • 500 $1.0600
  • 1,000 $0.9800
$0.9800 / $2.0100 Buy Now

Part Details for NVMFS5C442NLAFT1G

NVMFS5C442NLAFT1G CAD Models

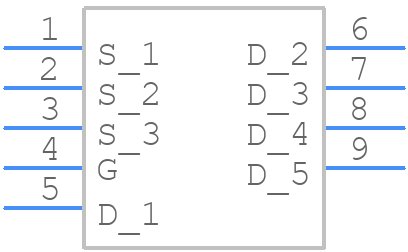

  • Part Symbol

    schematic symbol

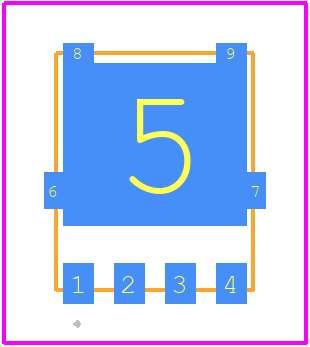

  • Footprint

    pcb footprint

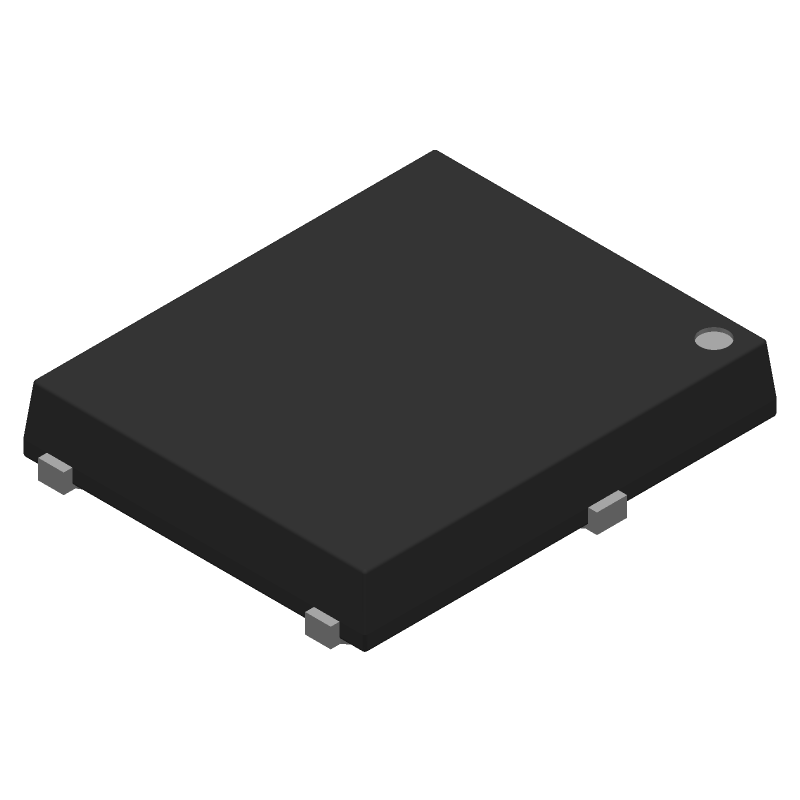

  • 3D Model
