Part Details for OP284EPZ by Analog Devices Inc
Results Overview of OP284EPZ by Analog Devices Inc
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (1 option)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
OP284EPZ Information
OP284EPZ by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for OP284EPZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50AK6540
|
Newark | Op-Amp, 4.25Mhz, -40 To 125Deg C, Dip-8, No. Of Channels:2Channels, Gain Bandwidth Product:4.25Mhz, Supply Voltage Range:3V To 36V, ± 1.5V To ± 18V, Ic Case/Package:Dip, No. Of Pins:8Pins, Amplifier Type:General Purpose Rohs Compliant: Yes |Analog Devices OP284EPZ RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 39 |
|
$9.6100 / $17.4800 | Buy Now |
|
|
Analog Devices Inc | PREC RAIL TO RAIL OP AMP Package Multiple: 50 | 4473 |
|
$7.5300 / $17.4800 | Buy Now |
|
DISTI #
OP284EPZ
|
TME | IC: operational amplifier, 4.25MHz, Ch: 2, DIP8, tube Min Qty: 1 | 0 |
|
$19.2000 / $25.9000 | RFQ |
|
|
Chip Stock | OpAmpDualPrecisionAmplifierR-RI/O±18V/36V8-PinPDIPNTube | 193 |
|
RFQ |
US Tariff Estimator: OP284EPZ by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for OP284EPZ
OP284EPZ CAD Models
-

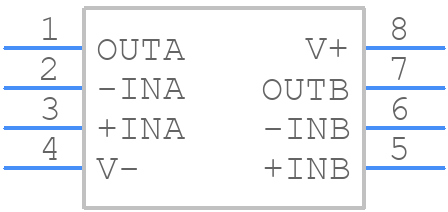

Part Symbol
-

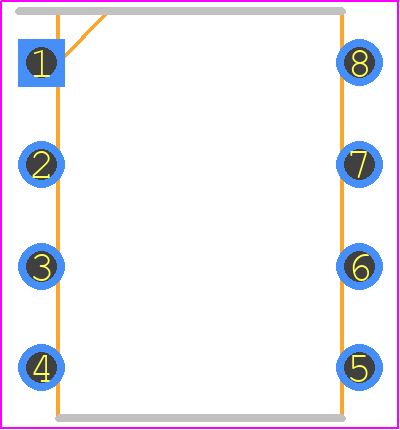

Footprint
-

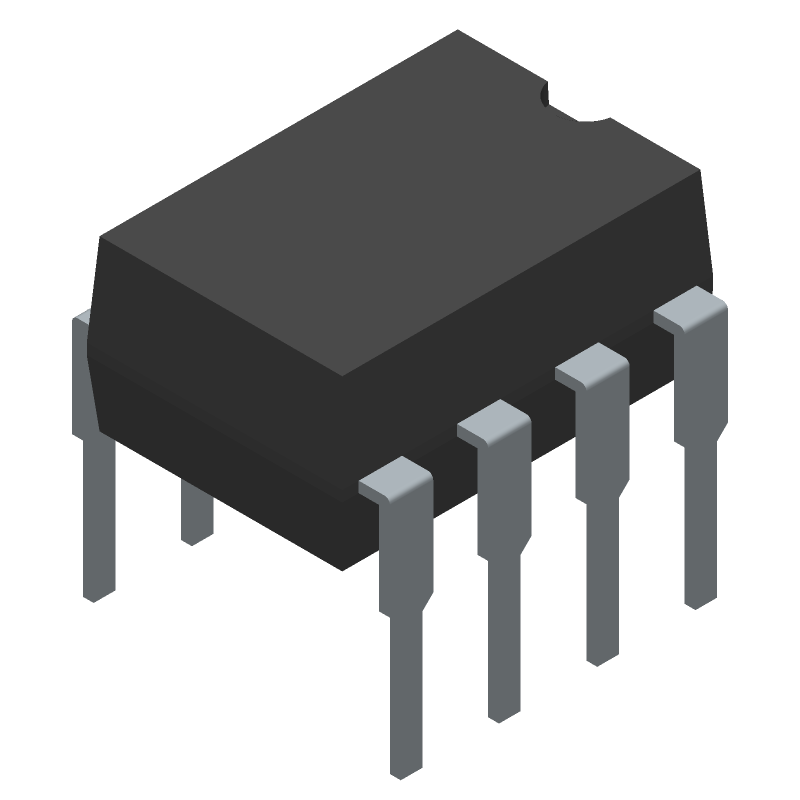

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
OP284EPZ Part Data Attributes
|
|
OP284EPZ
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
OP284EPZ
Analog Devices Inc
Precision RRIO Dual Op Amp
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | DIP | |
| Package Description | Rohs Compliant, Plastic, Ms-001, Dip-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | N-8 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Amplifier Type | Operational Amplifier | |
| Architecture | Voltage-Feedback | |
| Average Bias Current-Max (IIB) | 0.575 µA | |
| Bias Current-Max (IIB) @25C | 0.45 µA | |
| Common-mode Reject Ratio-Min | 86 Db | |
| Common-mode Reject Ratio-Nom | 90 Db | |
| Frequency Compensation | Yes | |
| Input Offset Voltage-Max | 200 µV | |
| JESD-30 Code | R-PDIP-T8 | |
| JESD-609 Code | e3 | |
| Length | 9.27 Mm | |
| Low-Bias | No | |
| Low-Offset | Yes | |
| Micropower | No | |
| Neg Supply Voltage Limit-Max | -18 V | |
| Neg Supply Voltage-Nom (Vsup) | -15 V | |
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | DIP | |
| Package Equivalence Code | DIP8,.3 | |
| Package Shape | Rectangular | |
| Package Style | In-Line | |
| Power | No | |
| Programmable Power | No | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 5.33 Mm | |
| Slew Rate-Min | 2.4 V/Us | |
| Slew Rate-Nom | 4 V/Us | |
| Supply Current-Max | 4.5 Ma | |
| Supply Voltage Limit-Max | 18 V | |
| Supply Voltage-Nom (Vsup) | 15 V | |
| Surface Mount | No | |
| Technology | Bipolar | |
| Temperature Grade | Automotive | |
| Terminal Finish | Matte Tin (Sn) - Annealed | |
| Terminal Form | Through-Hole | |
| Terminal Pitch | 2.54 Mm | |
| Terminal Position | Dual | |
| Unity Gain BW-Nom | 4250 | |
| Voltage Gain-Min | 75000 | |
| Wideband | No | |
| Width | 7.62 Mm |
Alternate Parts for OP284EPZ
This table gives cross-reference parts and alternative options found for OP284EPZ. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of OP284EPZ, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| OP284EP | Analog Devices Inc | Check for Price | Precision RRIO Dual Op Amp | OP284EPZ vs OP284EP |
OP284EPZ Frequently Asked Questions (FAQ)
-
The maximum power dissipation of the OP284EPZ is 670mW, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (θJA) of 125°C/W.
-
To ensure stability, it's essential to follow proper PCB layout practices, minimize parasitic capacitance, and use a compensation capacitor (if necessary) as recommended in the datasheet. Additionally, consider using a phase margin analyzer tool to verify stability.
-
The recommended input voltage range for the OP284EPZ is between -12V and +12V, with a maximum differential input voltage of ±5V. Exceeding these limits may result in reduced performance or damage to the device.
-
The OP284EPZ is rated for operation from -40°C to +125°C. However, the device's performance may degrade at higher temperatures. It's essential to consider the thermal management and ensure the device operates within its specified temperature range.
-
To prevent electrostatic discharge (ESD) damage, handle the OP284EPZ by the body, avoid touching the pins, and use an ESD wrist strap or mat. Also, ensure the PCB design includes ESD protection components, such as TVS diodes or resistors, as necessary.
