OPA171AIDRLT Information
OPA171AIDRLT by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for OPA171AIDRLT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
OPA171AIDRLT
|
TME | IC: operational amplifier, 3MHz, Ch: 1, SOT5X3, reel,tape, IB: 3.5nA Min Qty: 1 | 0 |
|
$1.4000 / $2.5300 | RFQ |
|
|
Ameya Holding Limited | IC OPAMP GP 3MHZ RRO SOT5 | 183782 |
|
RFQ | |
|
|
Chip Stock | ICOPAMPGP1CIRCUITSOT5GeneralPurposeAmplifier1CircuitRail-to-RailSOT-5 | 53030 |
|
RFQ | |
|
|
LCSC | 250uV 8pA 1.5V/us 120dB 3MHz 1 Rail-to-Rail Output SOT-553-5 Amplifiers RoHS | 303 |
|
$0.3913 / $0.7604 | Buy Now |
|
|
Win Source Electronics | IC OPAMP GP 3MHZ RRO SOT5 | 49530 |
|
$0.3357 / $0.4335 | Buy Now |
US Tariff Estimator: OPA171AIDRLT by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for OPA171AIDRLT
OPA171AIDRLT CAD Models
-

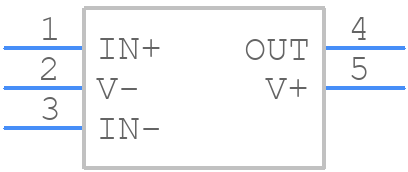

Part Symbol
-
Footprint
-

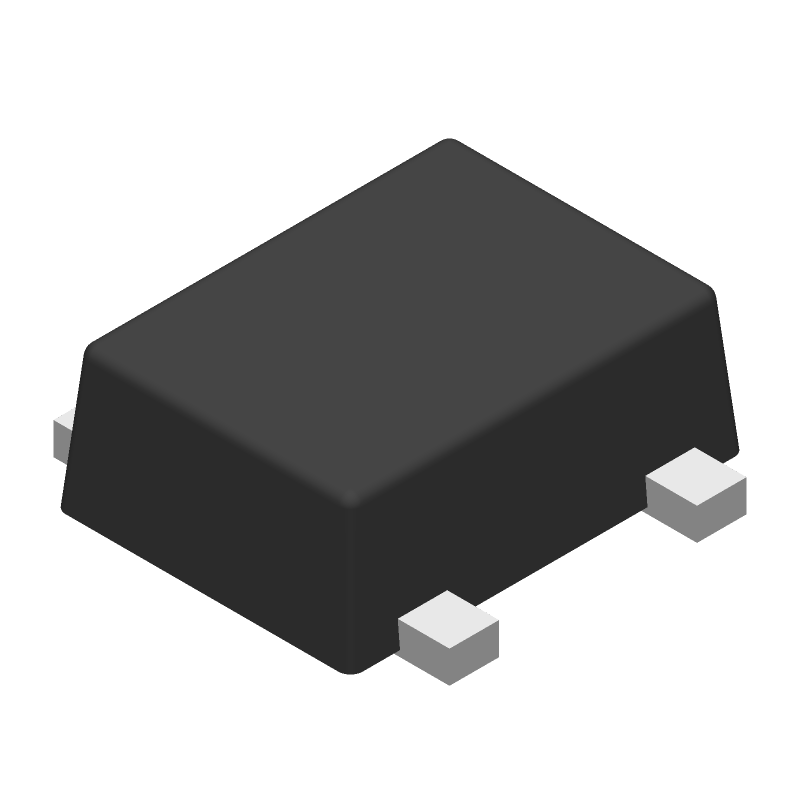

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
OPA171AIDRLT Part Data Attributes
|
|
OPA171AIDRLT
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
OPA171AIDRLT
Texas Instruments
Single, 36-V, 3-MHz, low-power operational amplifier 5-SOT-5X3 -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOT | |
| Pin Count | 5 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.0035 µA | |
| Bias Current-Max (IIB) @25C | 0.000015 µA | |
| Common-mode Reject Ratio-Min | 104 dB | |
| Common-mode Reject Ratio-Nom | 120 dB | |
| Frequency Compensation | YES | |
| Input Offset Current-Max (IIO) | 0.0035 µA | |
| Input Offset Voltage-Max | 1800 µV | |
| JESD-30 Code | R-PDSO-F5 | |
| JESD-609 Code | e4 | |
| Length | 1.6 mm | |
| Low-Bias | YES | |
| Low-Offset | NO | |
| Micropower | YES | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | -20 V | |
| Neg Supply Voltage-Nom (Vsup) | -18 V | |
| Number of Functions | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VSOF | |
| Package Equivalence Code | FL5/6,.047,20 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, VERY THIN PROFILE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | NO | |
| Programmable Power | NO | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 0.6 mm | |
| Slew Rate-Nom | 1.5 V/us | |
| Supply Current-Max | 0.595 mA | |
| Supply Voltage Limit-Max | 20 V | |
| Supply Voltage-Nom (Vsup) | 18 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag) | |
| Terminal Form | FLAT | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 3000 | |
| Voltage Gain-Min | 316000 | |
| Wideband | NO | |
| Width | 1.2 mm |
