OPA2314ASDRBTEP Information
OPA2314ASDRBTEP by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for OPA2314ASDRBTEP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
OPA2314ASDRBTEP
|
TME | IC: operational amplifier, 3MHz, Ch: 2, SON8, reel,tape, IB: 2nA Min Qty: 1 | 0 |
|
$3.4700 / $5.2100 | RFQ |
|
|
Ameya Holding Limited | IC OPAMP GP 3MHZ RRO 8SON | 2361 |
|
RFQ | |
|
|
Chip Stock | Enhancedproduct,dual,5.5-V,3-MHz,RRIOoperationalamplifier8-SON-40to150 | 3500 |
|
RFQ |
US Tariff Estimator: OPA2314ASDRBTEP by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for OPA2314ASDRBTEP
OPA2314ASDRBTEP CAD Models
-

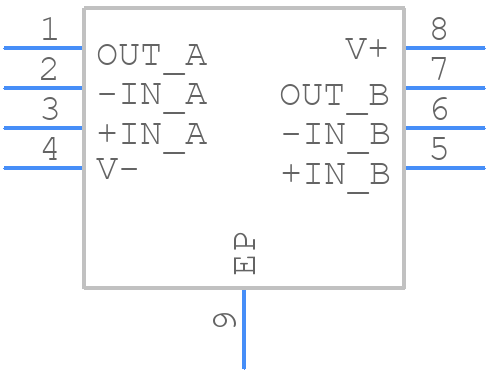

Part Symbol
-
