OPA2348AIDCNRG4 Information
OPA2348AIDCNRG4 by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for OPA2348AIDCNRG4
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Chip Stock | ICCMOS2CIRCUITSOT23-8CMOSAmplifier2CircuitRail-to-RailSOT-23-8 | 20650 |
|
RFQ | |
|
|
Win Source Electronics | IC OPAMP GP 1MHZ RRO SOT23-8 | 45490 |
|
$0.2229 / $0.2878 | Buy Now |
US Tariff Estimator: OPA2348AIDCNRG4 by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for OPA2348AIDCNRG4
OPA2348AIDCNRG4 CAD Models
-

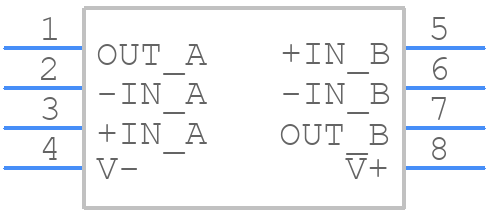

Part Symbol
-
