OPA2353UA Information
OPA2353UA by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| OPA2353UA | Texas Instruments | High-Speed, Single-Supply, Rail-to-Rail Operational Amplifiers MicroAmplifier™ Series 8-SOIC -40 to 85 | |
| OPA2353UAG4 | Texas Instruments | High-Speed, Single-Supply, Rail-to-Rail Operational Amplifiers MicroAmplifier™ Series 8-SOIC -40 to 85 | |
| OPA2353UA/2K5 | Texas Instruments | High-Speed, Single-Supply, Rail-to-Rail Operational Amplifiers MicroAmplifier™ Series 8-SOIC -40 to 85 |
Price & Stock for OPA2353UA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 51 |
|
RFQ | ||
|
DISTI #
OPA2353UA
|
TME | IC: operational amplifier, 44MHz, Ch: 2, SO8, ±2.7÷5.5VDC, tube Min Qty: 1 | 0 |
|
$3.7400 / $5.8000 | RFQ |
|
|
Ameya Holding Limited | IC OPAMP GP 44MHZ RRO 8SOIC | 50438 |
|
RFQ | |
|
DISTI #
OPA2353UA
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: No Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Tube | 150 |
|
$3.3100 / $6.4600 | Buy Now |
|
|
Chip Stock | Dual,5.5-V,44-MHz,lownoise(7-nV/√Hz),RRIOoperationalamplifier8-SOIC-40to85 | 20506 |
|
RFQ | |
|
|
Win Source Electronics | IC OPAMP GP 44MHZ RRO 8SOIC | 17006 |
|
$2.2857 / $3.4280 | Buy Now |
US Tariff Estimator: OPA2353UA by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for OPA2353UA
OPA2353UA CAD Models
-

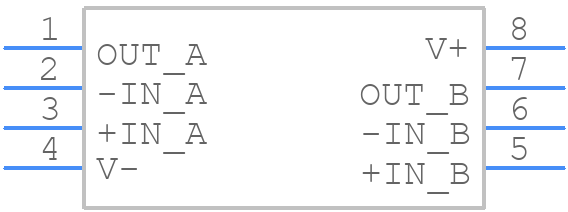

Part Symbol
-
