OPA2836IRMCT Information
OPA2836IRMCT by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for OPA2836IRMCT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 189 |
|
RFQ | ||
|
|
Rochester Electronics | Operational Amplifier, 2 Func, 400uV Offset-Max, BIPolar, PQCC10 RoHS: Compliant Status: Active Min Qty: 1 | 10 |
|
$2.2100 / $2.7600 | Buy Now |
|
DISTI #
OPA2836IRMCT
|
TME | IC: operational amplifier, 110MHz, Ch: 2, UQFN10, reel,tape Min Qty: 1 | 0 |
|
$3.2000 / $4.4200 | RFQ |
|
|
LCSC | 65uV 1uA 560V/us 116dB 205MHz 2 Rail-to-Rail Output UQFN-10(2x2) Amplifiers RoHS | 20 |
|
$2.8736 / $3.0380 | Buy Now |
US Tariff Estimator: OPA2836IRMCT by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for OPA2836IRMCT
OPA2836IRMCT CAD Models
-

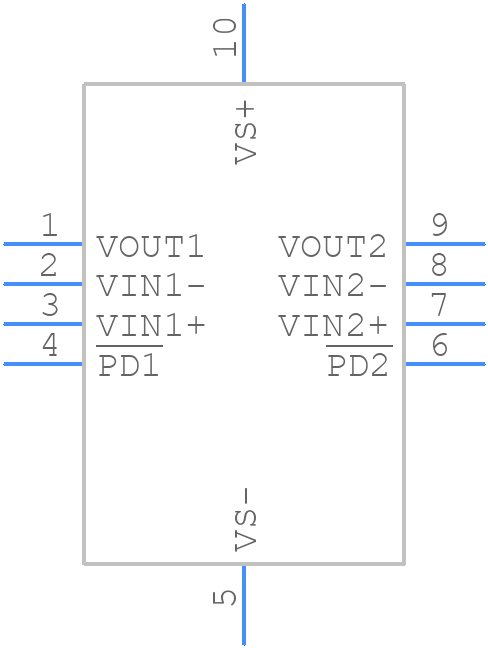

Part Symbol
-
