OPA4209AIPWR Information
OPA4209AIPWR by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for OPA4209AIPWR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 990 |
|
RFQ | ||
|
DISTI #
OPA4209AIPWR
|
TME | IC: operational amplifier, 18MHz, Ch: 4, TSSOP14, reel,tape Min Qty: 1 | 0 |
|
$4.9500 / $6.5400 | RFQ |
|
|
New Advantage Corporation | IC-4209 OPAMP GP 4 CIRCUIT 14TSSOP RoHS: Compliant Min Qty: 1 Package Multiple: 1 | 56 |
|
$11.7800 / $12.7600 | Buy Now |
|
|
Win Source Electronics | IC OPAMP GP 18MHZ RRO 14TSSOP | 841 |
|
$4.8449 / $7.2673 | Buy Now |
US Tariff Estimator: OPA4209AIPWR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for OPA4209AIPWR
OPA4209AIPWR CAD Models
-

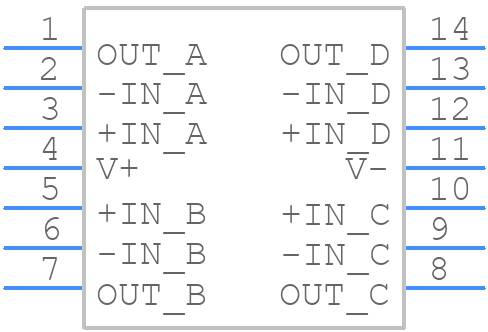

Part Symbol
-
