OPA552UA Information
OPA552UA by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for OPA552UA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
OPA552UA
|
TME | IC: operational amplifier, 12MHz, Ch: 1, SO8, ±4÷30VDC, tube Min Qty: 1 | 81 |
|
$4.8600 / $7.4000 | Buy Now |
|
|
Ameya Holding Limited | OP AMP, HIGH VOLTAGE G75 | 20312 |
|
RFQ | |
|
|
Win Source Electronics | IC OPAMP GP 12MHZ 8SOIC | 2000 |
|
$3.7143 / $5.5714 | Buy Now |
US Tariff Estimator: OPA552UA by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for OPA552UA
OPA552UA CAD Models
-

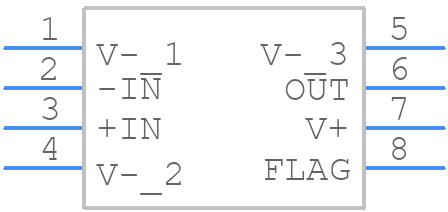

Part Symbol
-
