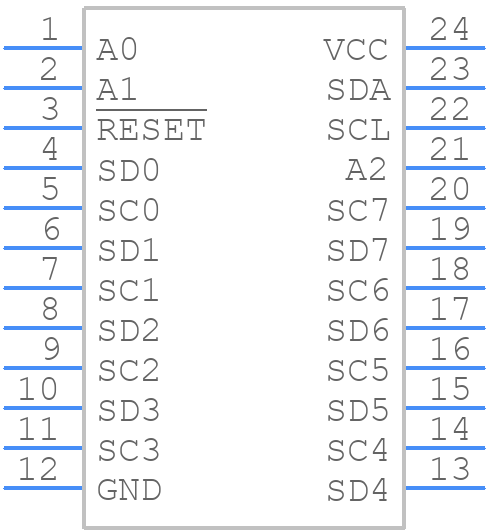

Part Symbol
-

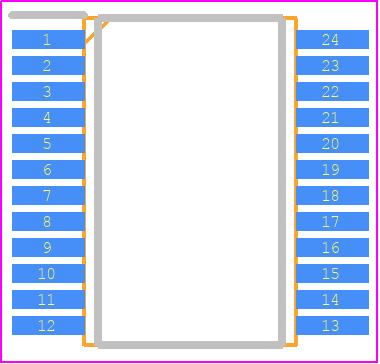

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PCA9548ADBR by Texas Instruments
Overview of PCA9548ADBR by Texas Instruments
- Distributor Offerings:
- Number of FFF Equivalents:
- CAD Models:
- Number of Functional Equivalents:
- Part Data Attributes
- Reference Designs:
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Price & Stock for PCA9548ADBR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-21772-1-ND
|
DigiKey | IC INTERFACE SPECIALIZED 24SSOP Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
810 In Stock |
|
$0.5559 / $1.4300 | Buy Now |
|
DISTI #
595-PCA9548ADBR
|
Mouser Electronics | Switch ICs - Various 8-Channel I2C Switch RoHS: Compliant | 3034 |
|
$0.5370 / $1.4000 | Buy Now |
|
|
Rochester Electronics | PCA9548A 8-Channel I2C Switch With Reset RoHS: Compliant Status: Active Min Qty: 1 | 89 |
|
$0.5219 / $0.6140 | Buy Now |
|
|
Ameya Holding Limited | IC I2C SW 8CH W/RESET 24-SSOP | 8633 |
|
RFQ | |
|
|
Win Source Electronics | 8-CHANNEL I2C SWITCH WITH RESET | 29978 |
|
$1.9020 / $2.8530 | Buy Now |
Part Details for PCA9548ADBR
PCA9548ADBR CAD Models
PCA9548ADBR Part Data Attributes
|
|
PCA9548ADBR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
PCA9548ADBR
Texas Instruments
8-channel 2.3- to 5.5-V I2C/SMBus switch with reset & voltage translation 24-SSOP -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SSOP | |
| Package Description | GREEN, PLASTIC, SSOP-24 | |
| Pin Count | 24 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Interface IC Type | INTERFACE CIRCUIT | |
| JESD-30 Code | R-PDSO-G24 | |
| JESD-609 Code | e4 | |
| Length | 8.2 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 8 | |
| Number of Functions | 1 | |
| Number of Terminals | 24 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SSOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 2 mm | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 2.3 V | |
| Supply Voltage-Nom | 2.5 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 5.3 mm |
Alternate Parts for PCA9548ADBR
This table gives cross-reference parts and alternative options found for PCA9548ADBR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PCA9548ADBR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Description | Manufacturer | Compare |
|---|---|---|---|
| PCA9548ADBT | 9548 SERIES, 8 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, PDSO24, PLASTIC, SSOP-24 | Texas Instruments | PCA9548ADBR vs PCA9548ADBT |
| PCA9548ADBG4 | 8-channel 2.3- to 5.5-V I2C/SMBus switch with reset & voltage translation 24-SSOP -40 to 85 | Texas Instruments | PCA9548ADBR vs PCA9548ADBG4 |
