Part Details for PCF8574PWR by Texas Instruments
Results Overview of PCF8574PWR by Texas Instruments
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (3 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
PCF8574PWR Information
PCF8574PWR by Texas Instruments is a Parallel IO Port.
Parallel IO Ports are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for PCF8574PWR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
28AH4665
|
Newark | I/O Expander, 8Bit, 100Khz, Tssop-20, Chip Configuration:8Bit, Bus Frequency:100Khz, Ic Interface Type:I2C, Supply Voltage Min:2.5V, Supply Voltage Max:6V, Interface Case Style:Tssop, No. Of Pins:20Pins, No. Of I/O S:8I/O S, Product Rohs Compliant: Yes |Texas Instruments PCF8574PWR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 718 |
|
$1.4300 / $1.8500 | Buy Now |
|
|
Bristol Electronics | 72 |
|
RFQ | ||
|
|
Bristol Electronics | Min Qty: 3 | 45 |
|
$1.1250 / $1.8000 | Buy Now |
|
DISTI #
PCF8574PWR
|
TME | IC: interface, I/O expander, 2.5÷6VDC, I2C, SMD, TSSOP20, Ch: 8 Min Qty: 1 | 0 |
|
$1.0100 / $1.5100 | RFQ |
|
|
Ameya Holding Limited | PCF8574PWR 输入/输出扩展器, 20针 TSSOP封装 | 54301 |
|
RFQ | |
|
|
Chip Stock | 8-bit2.5-to5.5-VI2C/SMBusI/Oexpanderwithinterrupt20-TSSOP-40to85 | 224780 |
|
RFQ | |
|
|
Win Source Electronics | IC I/O EXPANDER I2C 8B 20TSSOP | 207940 |
|
$0.7200 / $0.9300 | Buy Now |
US Tariff Estimator: PCF8574PWR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for PCF8574PWR
PCF8574PWR CAD Models
-

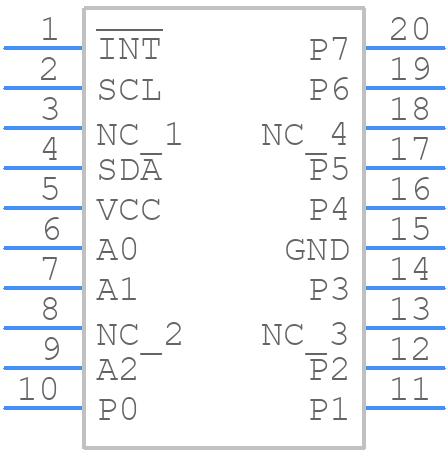

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
PCF8574PWR Part Data Attributes
|
|
PCF8574PWR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
PCF8574PWR
Texas Instruments
8-bit 2.5- to 5.5-V I2C/SMBus I/O expander with interrupt 20-TSSOP -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | TSSOP | |
| Package Description | Tssop, Tssop20,.25 | |
| Pin Count | 20 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Address Bus Width | 8 | |
| Clock Frequency-Max | 0.1 Mhz | |
| External Data Bus Width | ||
| JESD-30 Code | R-PDSO-G20 | |
| JESD-609 Code | e4 | |
| Length | 6.5 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 8 | |
| Number of I/O Lines | 8 | |
| Number of Ports | 1 | |
| Number of Terminals | 20 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP20,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Thin Profile, Shrink Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.2 Mm | |
| Supply Current-Max | 0.1 Ma | |
| Supply Voltage-Max | 6 V | |
| Supply Voltage-Min | 2.5 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4.4 Mm | |
| uPs/uCs/Peripheral ICs Type | Parallel Io Port, General Purpose |
Alternate Parts for PCF8574PWR
This table gives cross-reference parts and alternative options found for PCF8574PWR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PCF8574PWR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| PCF8574PWRE4 | Texas Instruments | Check for Price | 8-bit 2.5- to 5.5-V I2C/SMBus I/O expander with interrupt 20-TSSOP -40 to 85 | PCF8574PWR vs PCF8574PWRE4 |
| PCF8574PWG4 | Texas Instruments | Check for Price | 8-bit 2.5- to 5.5-V I2C/SMBus I/O expander with interrupt 20-TSSOP -40 to 85 | PCF8574PWR vs PCF8574PWG4 |
| PCF8574PWE4 | Texas Instruments | Check for Price | 8 I/O, PIA-GENERAL PURPOSE, PDSO20, GREEN, PLASTIC, TSSOP-20 | PCF8574PWR vs PCF8574PWE4 |
PCF8574PWR Frequently Asked Questions (FAQ)
-
The PCF8574PWR can source up to 20mA and sink up to 24mA per I/O pin.
-
The PCF8574PWR is configured for I2C communication by connecting the SCL pin to the I2C clock line and the SDA pin to the I2C data line. The device address is set by the A0, A1, and A2 pins.
-
The INT pin is an open-drain output that is asserted low when an input pin changes state. It can be used to interrupt a microcontroller to signal that an input has changed.
-
Yes, the PCF8574PWR can be used as a level translator. It can translate signals from a lower voltage domain (e.g. 1.8V) to a higher voltage domain (e.g. 5V) or vice versa.
-
The PCF8574PWR can handle I2C clock frequencies up to 400 kHz.
