Part Details for PGA2505IDB by Texas Instruments
Results Overview of PGA2505IDB by Texas Instruments
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (2 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
Price & Stock for PGA2505IDB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Rochester Electronics | Audio Preamplifier, 1 Channel(s), 1 Func, PDSO24 RoHS: Compliant Status: Active Min Qty: 1 | 2 |
|
$6.3300 / $7.9100 | Buy Now |
|
|
Win Source Electronics | Digitally-Controlled MICROPHONE PREAMPLIFIER | 2452 |
|
$27.1105 / $40.6657 | Buy Now |
US Tariff Estimator: PGA2505IDB by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for PGA2505IDB
PGA2505IDB CAD Models
-

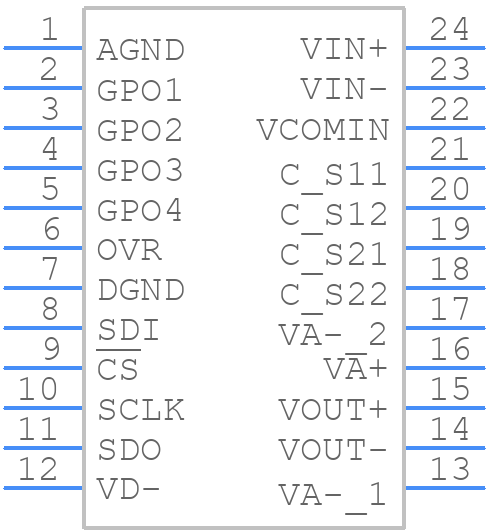

Part Symbol
-

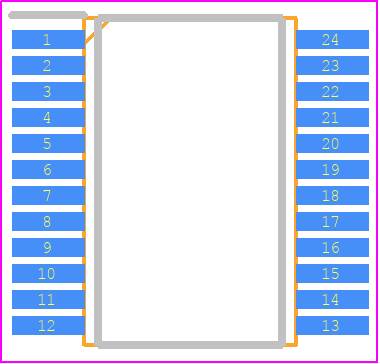

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
PGA2505IDB Part Data Attributes
|
|
PGA2505IDB
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
PGA2505IDB
Texas Instruments
Gain Range: 0dB, and 9dB to 60dB, in 3dB steps 24-SSOP -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SSOP | |
| Package Description | SSOP, SSOP24,.3 | |
| Pin Count | 24 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Consumer IC Type | AUDIO PREAMPLIFIER | |
| JESD-30 Code | R-PDSO-G24 | |
| JESD-609 Code | e4 | |
| Length | 8.2 mm | |
| Moisture Sensitivity Level | 2 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 24 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SSOP | |
| Package Equivalence Code | SSOP24,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 2 mm | |
| Supply Current-Max | 40 mA | |
| Supply Voltage-Max (Vsup) | 5.25 V | |
| Supply Voltage-Min (Vsup) | 4.75 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 5.3 mm |
Alternate Parts for PGA2505IDB
This table gives cross-reference parts and alternative options found for PGA2505IDB. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PGA2505IDB, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| PGA2500IDBR | Texas Instruments | $8.2549 | Gain Range: 0dB, and 10dB to 65dB in 1dB steps 28-SSOP -40 to 85 | PGA2505IDB vs PGA2500IDBR |
| PGA2500IDBG4 | Texas Instruments | Check for Price | Gain Range: 0dB, and 10dB to 65dB in 1dB steps 28-SSOP -40 to 85 | PGA2505IDB vs PGA2500IDBG4 |
PGA2505IDB Frequently Asked Questions (FAQ)
-
A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a star topology for the power supply and keep the power traces away from the analog signals.
-
The gain setting depends on the input signal amplitude and the desired output signal amplitude. Use the PGA2505IDB's gain setting formula (Gain = 20 * log10(Vout/Vin)) to determine the optimal gain setting for your application. You can also use the PGA2505IDB's gain adjustment pins to fine-tune the gain setting.
-
Power up the PGA2505IDB in the following sequence: VDD, AVDD, and then DVDD. This ensures that the analog and digital circuits are powered up correctly and reduces the risk of latch-up or damage to the device.
-
Use a combination of passive and active filtering techniques to filter out noise and interference. Add bypass capacitors to the power supply lines, use a ferrite bead or a common-mode choke to filter out high-frequency noise, and consider adding an active filter stage to further reduce noise and interference.
-
The PGA2505IDB can handle input signal amplitudes up to 5Vpp differential or 2.5Vpp single-ended. Exceeding this limit may result in distortion, clipping, or damage to the device.
