Microcontrollers and Processors / Microcontrollers / PIC16F1778-I/SS
Datasheets
PIC16F1778-I/SS by:
Microchip Technology Inc

28KB Flash, 2KB RAM, HEF, HS Comp, 10b DAC, OpAmp, COG, ZCD, PRG, 100mA I/Os

Part Details for PIC16F1778-I/SS by Microchip Technology Inc

Results Overview of PIC16F1778-I/SS by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Industrial Automation Healthcare Medical Imaging Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Automotive Motor control systems Robotics and Drones

PIC16F1778-I/SS Information

PIC16F1778-I/SS by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC16F1778-I/SS

Part # Distributor Description Stock Price Buy
DISTI # 72Y1985
Newark 8 Bit Microcontroller, Pic16F17Xx, 32 Mhz, 28 Kb, 2 Kb, 28, Ssop Rohs Compliant: Yes |Microchip PIC16F1778-I/SS RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 0
  • 1 $2.8000
  • 10 $2.6900
  • 25 $2.5700
  • 94 $2.4500
  • 141 $2.3200
$2.3200 / $2.8000 Buy Now
DISTI # PIC16F1778-I/SS
Avnet Americas MCU 8-Bit PIC16 PIC RISC 28Kbyte Flash 3.3V/5V 28-Pin SSOP Tube - Rail/Tube (Alt: PIC16F1778-I/SS) COO: Thailand RoHS: Compliant Min Qty: 282 Package Multiple: 47 Lead time: 6 Weeks, 0 Days Container: Tube 0
  • 282 $2.8143
  • 376 $2.6622
  • 658 $2.5921
  • 1,410 $2.5256
  • 2,820 $2.4625
$2.4625 / $2.8143 Buy Now
DISTI # PIC16F1778-I/SS
Microchip Technology Inc 28KB Flash, 2KB RAM, HEF, HS Comp, 10b DAC, OpAmp, COG, ZCD, PRG, 100mA I/Os, SSOP, Projected EOL: 2039-12-04 COO: Thailand ECCN: 3A991.a.2 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Tube In Stock: 2404 and Alternates Available
  • 1 $2.8000
  • 25 $2.5700
  • 100 $2.3200
  • 1,000 $2.1400
  • 5,000 $2.0500
$2.0500 / $2.8000 Buy Now
DISTI # PIC16F1778-I/SS
TME IC: PIC microcontroller, 32MHz, 2.3÷5.5VDC, SMD, SSOP28, PIC16 Min Qty: 1 0
  • 1 $2.8200
  • 5 $2.7600
  • 10 $2.6900
  • 47 $2.6300
  • 94 $2.5800
  • 188 $2.5200
  • 376 $2.4600
  • 752 $2.4500
$2.4500 / $2.8200 RFQ
NAC 28KB Flash, 2KB RAM, HEF, HS Comp, 10b DAC, OpAmp, COG, ZCD, PRG, 100mA I/Os, PPS, 10/16b PWMs, SPI/I2C, EUSART. Package: 28 SSOP .209in TUBE - HI PINCOUNT FLASH EMR DEVICES Product Line RoHS: Compliant Min Qty: 141 Package Multiple: 47 Container: Tube 0
  • 1 $3.0300
  • 100 $2.7400
  • 500 $2.5300
  • 1,000 $2.4600
$2.4600 / $3.0300 Buy Now
DISTI # PIC16F1778-I/SS
Avnet Silica MCU 8Bit PIC16 PIC RISC 28Kbyte Flash 33V5V 28Pin SSOP Tube (Alt: PIC16F1778-I/SS) RoHS: Compliant Min Qty: 282 Package Multiple: 47 Lead time: 8 Weeks, 0 Days Silica - 0
Buy Now
DISTI # PIC16F1778-I/SS
EBV Elektronik MCU 8Bit PIC16 PIC RISC 28Kbyte Flash 33V5V 28Pin SSOP Tube (Alt: PIC16F1778-I/SS) RoHS: Compliant Min Qty: 282 Package Multiple: 47 Lead time: 7 Weeks, 0 Days EBV - 0
Buy Now

US Tariff Estimator: PIC16F1778-I/SS by Microchip Technology Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

PIC16F1778-I/SS
Microchip Technology Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for PIC16F1778-I/SS

PIC16F1778-I/SS CAD Models

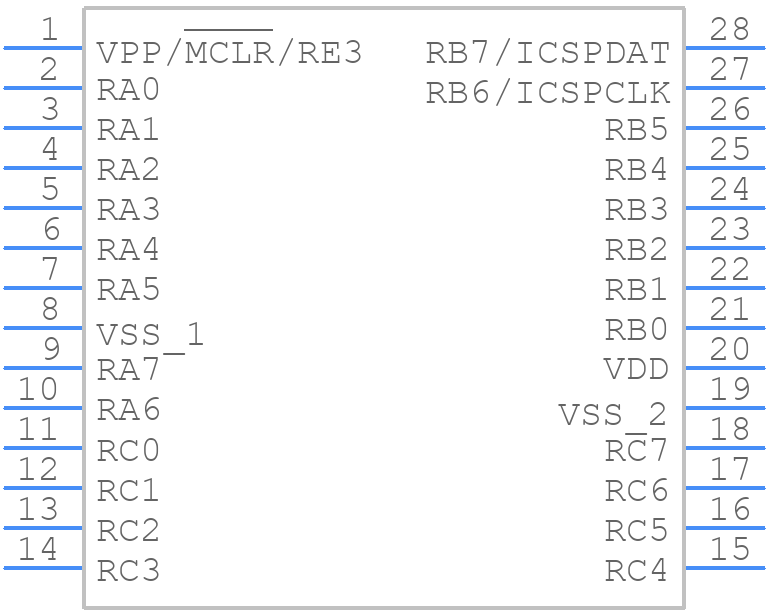

  • Part Symbol

    schematic symbol

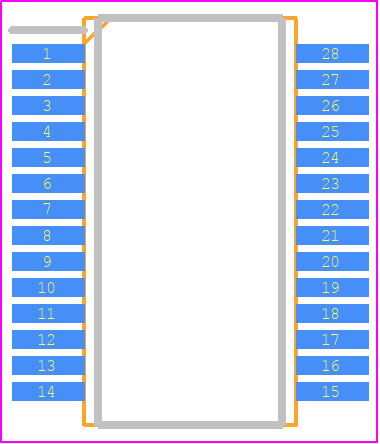

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC16F1778-I/SS Part Data Attributes

Parametric Data
PIC16F1778-I/SS Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC16F1778-I/SS Microchip Technology Inc 28KB Flash, 2KB RAM, HEF, HS Comp, 10b DAC, OpAmp, COG, ZCD, PRG, 100mA I/Os
Rohs Code Yes
Part Life Cycle Code Active
Package Description Ssop, Ssop28,.3
Pin Count 28
Manufacturer Package Code SSOP-28
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Factory Lead Time 6 Weeks
Has ADC Yes
Address Bus Width
Bit Size 8
Boundary Scan No
CPU Family Pic16
Clock Frequency-Max 32 Mhz
DAC Channels Yes
DMA Channels No
External Data Bus Width
Format Fixed Point
Integrated Cache No
JESD-30 Code R-PDSO-G28
JESD-609 Code e3
Length 10.2 Mm
Low Power Mode Yes
Number of External Interrupts 1
Number of I/O Lines 25
Number of Terminals 28
Number of Timers 10
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels Yes
Package Body Material Plastic/Epoxy
Package Code SSOP
Package Equivalence Code SSOP28,.3
Package Shape Rectangular
Package Style Small Outline, Shrink Pitch
RAM (bytes) 2048
ROM (words) 28672
ROM Programmability Flash
Seated Height-Max 2 Mm
Speed 32 Mhz
Supply Current-Max 250 Ma
Supply Voltage-Max 5.5 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 3 V
Surface Mount Yes
Technology Cmos
Temperature Grade Industrial
Terminal Finish Matte Tin (Sn)
Terminal Form Gull Wing
Terminal Pitch 0.65 Mm
Terminal Position Dual
Width 5.3 Mm
uPs/uCs/Peripheral ICs Type Microcontroller, Risc

Alternate Parts for PIC16F1778-I/SS

This table gives cross-reference parts and alternative options found for PIC16F1778-I/SS. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC16F1778-I/SS, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
PIC16F1778T-I/SS Microchip Technology Inc $2.8800 28KB Flash, 2KB RAM, HEF, HS Comp, 10b DAC, OpAmp, COG, ZCD, PRG, 100mA I/Os PIC16F1778-I/SS vs PIC16F1778T-I/SS
PIC16F1778-E/SSVAO Microchip Technology Inc Check for Price 28KB Flash, 2KB RAM, HEF, HS Comp, 10b DAC, OpAmp, COG, ZCD, PRG, 100mA I/Os PIC16F1778-I/SS vs PIC16F1778-E/SSVAO
PIC16F1778T-E/SS Microchip Technology Inc Check for Price 28KB Flash, 2KB RAM, HEF, HS Comp, 10b DAC, OpAmp, COG, ZCD, PRG, 100mA I/Os PIC16F1778-I/SS vs PIC16F1778T-E/SS
Part Number Manufacturer Composite Price Description Compare
PIC16LF18855-E/ML Microchip Technology Inc $1.5617 14KB, 1KB RAM, 256 EE, 25 I/O, DSM, ADC w/MathPak, WWDT, CRC/SCAN, CIPs PIC16F1778-I/SS vs PIC16LF18855-E/ML
PIC16F15356-E/MV Microchip Technology Inc $1.6046 28KB, 2KB RAM, 26x I/O, 4xPWMs, Comp, DAC, ADC, CWG, 2xEUSART, 2xSPI/I2C PIC16F1778-I/SS vs PIC16F15356-E/MV
PIC16LF18856-E/ML Microchip Technology Inc $1.7238 28KB Flash, 2KB RAM, 256B EE, ADCC, Analog, PWM, CWG, SMT, HLT, WWDT, SCAN/CRC PIC16F1778-I/SS vs PIC16LF18856-E/ML
PIC16F1936-E/ML Microchip Technology Inc $2.5171 28-pin, 14KB Flash, 512B RAM, 256B EEPROM, LCD, 1.8-5.5V PIC16F1778-I/SS vs PIC16F1936-E/ML
PIC16F1938-E/ML Microchip Technology Inc $2.7867 28-pin, 28KB Flash, 1KB RAM, 256B EEPROM, LCD, 1.8-5.5V PIC16F1778-I/SS vs PIC16F1938-E/ML
PIC16F1778-E/SS Microchip Technology Inc $2.9224 28KB Flash, 2KB RAM, HEF, HS Comp, 10b DAC, OpAmp, COG, ZCD, PRG, 100mA I/Os PIC16F1778-I/SS vs PIC16F1778-E/SS
PIC16LF1938T-I/MV Microchip Technology Inc Check for Price 28 pin, 28 KB Flash, 1 KB RAM, 256 EEPROM, LCD PIC16F1778-I/SS vs PIC16LF1938T-I/MV
PIC16LF1938T-I/SSVAO Microchip Technology Inc Check for Price 28-pin, 28KB Flash, 1KB RAM, 256B EEPROM, LCD, 1.8-3.6V, Low Power PIC16F1778-I/SS vs PIC16LF1938T-I/SSVAO
PIC16LF18855T-I/MV Microchip Technology Inc Check for Price 14KB, 1KB RAM, 256 EE, 25 I/O, DSM, ADC w/MathPak, WWDT, CRC/SCAN, CIPs PIC16F1778-I/SS vs PIC16LF18855T-I/MV
PIC16LF1936T-I/SSVAO Microchip Technology Inc Check for Price 28-pin, 14KB Flash, 512B RAM, 256B EEPROM, LCD, 1.8-3.6V, Low Power PIC16F1778-I/SS vs PIC16LF1936T-I/SSVAO
equivalents icon

PIC16F1778-I/SS Frequently Asked Questions (FAQ)

  • The PIC16F1778 can operate at a maximum clock frequency of 32 MHz.

  • The PIC16F1778 consumes approximately 20 nA in sleep mode.

  • Yes, the PIC16F1778 is rated for operation in industrial temperature ranges (-40°C to +85°C) and can be used in harsh environments.

  • Yes, the PIC16F1778 has 256 bytes of built-in EEPROM.

  • No, the PIC16F1778 does not have a built-in USB interface. For USB applications, consider using a different Microchip device such as the PIC16F1454.
