PIC16F18856-I/SO by: Microchip Technology Inc

28KB Flash, 2KB RAM, 256B EE, ADCC, Analog, PWM, CWG, SMT, HLT, WWDT, SCAN/CRC

Part Details for PIC16F18856-I/SO by Microchip Technology Inc

Results Overview of PIC16F18856-I/SO by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Entertainment and Gaming

PIC16F18856-I/SO Information

PIC16F18856-I/SO by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC16F18856-I/SO

Part # Distributor Description Stock Price Buy
DISTI # 32AJ8493
Newark Mcu, 8Bit, Pic16F, 32Mhz, Soic-28, Product Range:Pic16 Microcontrollers, Cpu Speed:32Mhz, Program Memory Size:28Kb, Ram Memory Size:2Kb, No. Of Pins:28Pins, Mcu Case Style:Soic, No. Of I/O S:25I/O S, Embedded Interface Type:Eusart, Rohs Compliant: Yes |Microchip PIC16F18856-I/SO RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 0
  • 1 $1.6900
  • 10 $1.6400
  • 25 $1.5900
  • 54 $1.5400
  • 108 $1.4700
  • 513 $1.4000
$1.4000 / $1.6900 Buy Now
DISTI # PIC16F18856-I/SO
Avnet Americas MCU 8-Bit PIC16F PIC RISC 28KB Flash 2.5V/3.3V/5V 28-Pin SOIC Tube - Rail/Tube (Alt: PIC16F18856-I/SO) COO: China RoHS: Compliant Min Qty: 432 Package Multiple: 27 Lead time: 4 Weeks, 0 Days Container: Tube 0
  • 432 $1.7000
  • 864 $1.6081
  • 1,728 $1.5658
  • 3,456 $1.5256
  • 6,912 $1.4875
$1.4875 / $1.7000 Buy Now
DISTI # PIC16F18856-I/SO
Microchip Technology Inc 28KB Flash, 2KB RAM, 256B EE, ADCC, Analog, PWM, CWG, SMT, HLT, WWDT, SCAN/CRC, SOIC, Projected EOL: 2045-08-09 COO: Thailand ECCN: 3A991.a.2 RoHS: Compliant Lead time: 5 Weeks, 0 Days Container: Tube In Stock: 59 and Alternates Available
  • 1 $1.6900
  • 25 $1.5400
  • 100 $1.4000
  • 1,000 $1.2900
  • 5,000 $1.2400
$1.2400 / $1.6900 Buy Now
DISTI # PIC16F18856-I/SO
TME IC: PIC microcontroller, 28kB, 32MHz, 2.3÷5.5VDC, SMD, SO28, PIC16 Min Qty: 1 0
  • 1 $1.7800
  • 5 $1.7200
  • 25 $1.5900
  • 100 $1.5400
$1.5400 / $1.7800 RFQ
DISTI # PIC16F18856-I/SO
IBS Electronics 8-BIT PIC MCU 28 KB 2048 BYTES 32 MHZ 1.8 TO 5.5V SOIC-28 ROHS Min Qty: 27 Package Multiple: 1 594
  • 27 $1.8060
  • 108 $1.7360
  • 270 $1.7080
  • 513 $1.6800
  • 1,026 $1.6520
  • 2,511 $1.6240
$1.6240 / $1.8060 Buy Now
NAC 28KB Flash, 2KB RAM, 256B EE, 10b ADC2, DAC, Comp, PWM, CWG, SMT, HLT, WWDT, SCAN/CRC, ZCD, PPS, EUSART, 2xSPI/I2C, IDLE/DOZE/PMD. Package: 28 SOIC .300in TUBE - HI PINCOUNT FLASH EMR DEVICES Product Line RoHS: Compliant Min Qty: 216 Package Multiple: 27 Container: Tube 0
  • 1 $1.8300
  • 100 $1.6500
  • 500 $1.5300
  • 1,000 $1.4900
$1.4900 / $1.8300 Buy Now
DISTI # PIC16F18856-I/SO
Avnet Silica MCU 8Bit PIC16F PIC RISC 28KB Flash 25V33V5V 28Pin SOIC Tube (Alt: PIC16F18856-I/SO) RoHS: Compliant Min Qty: 432 Package Multiple: 27 Lead time: 7 Weeks, 0 Days Silica - 0
Buy Now
DISTI # PIC16F18856-I/SO
EBV Elektronik MCU 8Bit PIC16F PIC RISC 28KB Flash 25V33V5V 28Pin SOIC Tube (Alt: PIC16F18856-I/SO) RoHS: Compliant Min Qty: 432 Package Multiple: 27 Lead time: 6 Weeks, 0 Days EBV - 0
Buy Now

US Tariff Estimator: PIC16F18856-I/SO by Microchip Technology Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

PIC16F18856-I/SO
Microchip Technology Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for PIC16F18856-I/SO

PIC16F18856-I/SO CAD Models

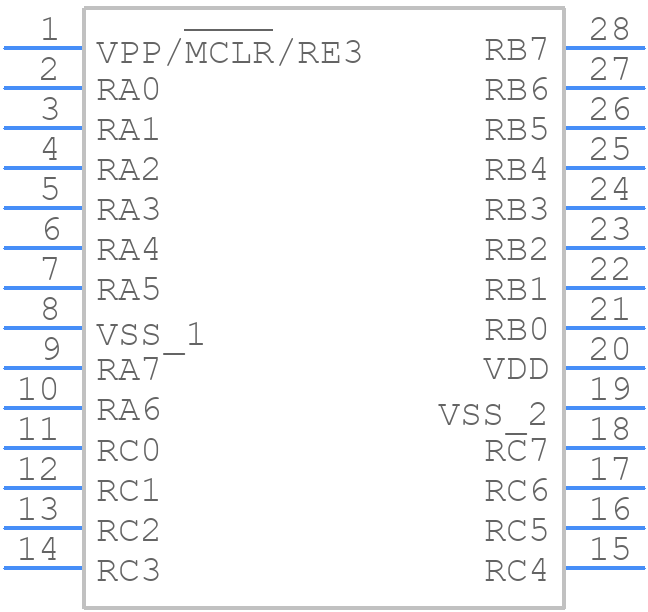

  • Part Symbol

    schematic symbol

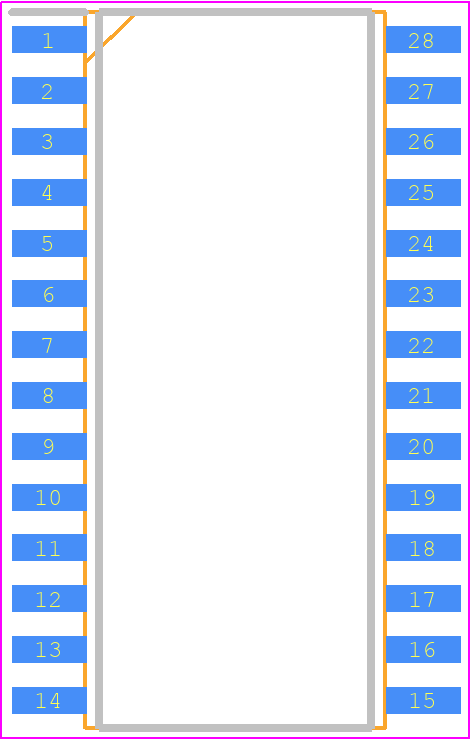

  • Footprint

    pcb footprint

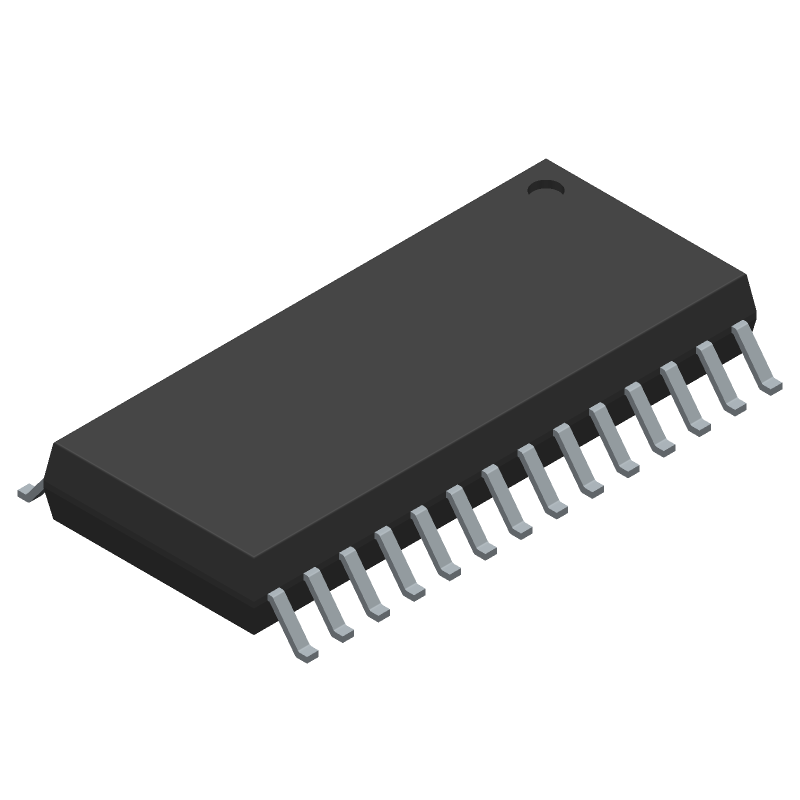

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC16F18856-I/SO Part Data Attributes

Parametric Data
PIC16F18856-I/SO Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC16F18856-I/SO Microchip Technology Inc 28KB Flash, 2KB RAM, 256B EE, ADCC, Analog, PWM, CWG, SMT, HLT, WWDT, SCAN/CRC
Rohs Code Yes
Part Life Cycle Code Active
Package Description Sop, Sop28,.4
Pin Count 28
Manufacturer Package Code SOIC-28
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Factory Lead Time 5 Weeks
Has ADC Yes
Address Bus Width
Bit Size 8
Boundary Scan No
CPU Family Pic16
Clock Frequency-Max 32 Mhz
DAC Channels Yes
DMA Channels No
External Data Bus Width
Format Fixed Point
Integrated Cache No
JESD-30 Code R-PDSO-G28
JESD-609 Code e3
Length 17.9 Mm
Low Power Mode Yes
Number of External Interrupts 1
Number of I/O Lines 25
Number of Serial I/Os 1
Number of Terminals 28
Number of Timers 11
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels Yes
Package Body Material Plastic/Epoxy
Package Code SOP
Package Equivalence Code SOP28,.4
Package Shape Rectangular
Package Style Small Outline
RAM (bytes) 2048
ROM (words) 28672
ROM Programmability Flash
Seated Height-Max 2.65 Mm
Speed 32 Mhz
Supply Current-Max 250 Ma
Supply Voltage-Max 5.5 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 3 V
Surface Mount Yes
Technology Cmos
Temperature Grade Industrial
Terminal Finish Matte Tin (Sn)
Terminal Form Gull Wing
Terminal Pitch 1.27 Mm
Terminal Position Dual
Width 7.5 Mm
uPs/uCs/Peripheral ICs Type Microcontroller, Risc

Alternate Parts for PIC16F18856-I/SO

This table gives cross-reference parts and alternative options found for PIC16F18856-I/SO. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC16F18856-I/SO, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
PIC16F18856-I/SS Microchip Technology Inc $1.4576 28KB Flash, 2KB RAM, 256B EE, ADCC, Analog, PWM, CWG, SMT, HLT, WWDT, SCAN/CRC PIC16F18856-I/SO vs PIC16F18856-I/SS
PIC16F18856-I/MV Microchip Technology Inc $1.5057 28KB Flash, 2KB RAM, 256B EE, 10b ADC2, DAC, Comp, PWM, CWG, SMT, HLT, WWDT, PIC16F18856-I/SO vs PIC16F18856-I/MV
PIC16F18856T-I/SO Microchip Technology Inc $1.7600 28KB Flash, 2KB RAM, 256B EE, ADCC, Analog, PWM, CWG, SMT, HLT, WWDT, SCAN/CRC PIC16F18856-I/SO vs PIC16F18856T-I/SO
PIC16F18856-E/SP Microchip Technology Inc $2.2015 28KB Flash, 2KB RAM, 256B EE, ADCC, Analog, PWM, CWG, SMT, HLT, WWDT, SCAN/CRC PIC16F18856-I/SO vs PIC16F18856-E/SP
PIC16F18856T-I/ML Microchip Technology Inc Check for Price 28KB Flash, 2KB RAM, 256B EE, ADCC, Analog, PWM, CWG, SMT, HLT, WWDT, SCAN/CRC PIC16F18856-I/SO vs PIC16F18856T-I/ML
PIC16F18856T-E/MLVAO Microchip Technology Inc Check for Price 28KB Flash, 2KB RAM, 256B EE, ADCC, Analog, PWM, CWG, SMT, HLT, WWDT, SCAN/CRC PIC16F18856-I/SO vs PIC16F18856T-E/MLVAO
PIC16F18856-E/MLVAO Microchip Technology Inc Check for Price 28KB Flash, 2KB RAM, 256B EE, ADCC, Analog, PWM, CWG, SMT, HLT, WWDT, SCAN/CRC PIC16F18856-I/SO vs PIC16F18856-E/MLVAO
PIC16F18856-I/STX Microchip Technology Inc Check for Price 28KB Flash, 2KB RAM, 256B EE, ADCC, Analog, PWM, CWG, SMT, HLT, WWDT, SCAN/CRC PIC16F18856-I/SO vs PIC16F18856-I/STX
PIC16F18856-I/SSVAO Microchip Technology Inc Check for Price 28KB Flash, 2KB RAM, 256B EE, ADCC, Analog, PWM, CWG, SMT, HLT, WWDT, SCAN/CRC PIC16F18856-I/SO vs PIC16F18856-I/SSVAO
PIC16F18856T-E/SSVAO Microchip Technology Inc Check for Price 28KB Flash, 2KB RAM, 256B EE, ADCC, Analog, PWM, CWG, SMT, HLT, WWDT, SCAN/CRC PIC16F18856-I/SO vs PIC16F18856T-E/SSVAO
equivalents icon

PIC16F18856-I/SO Related Parts

PIC16F18856-I/SO Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the PIC16F18856 is 32 MHz.

  • The PIC16F18856 has 28 KB of flash memory.

  • Yes, the PIC16F18856 can operate at 5V, but it is recommended to operate it at 3.3V for optimal performance and power consumption.

  • No, the PIC16F18856 does not have built-in USB support. However, it can be used with external USB controllers or modules.

  • The PIC16F18856 has 24 ADC channels.
