PIC16F1938-I/SO by: Microchip Technology Inc

28-pin, 28KB Flash, 1KB RAM, 256B EEPROM, LCD, 1.8-5.5V

Part Details for PIC16F1938-I/SO by Microchip Technology Inc

Results Overview of PIC16F1938-I/SO by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Internet of Things (IoT) Smart Cities

PIC16F1938-I/SO Information

PIC16F1938-I/SO by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC16F1938-I/SO

Part # Distributor Description Stock Price Buy
DISTI # 34R4523
Newark 8 Bit Microcontroller, Flash, Pic16F19Xx, 32 Mhz, 28 Kb, 1 Kb, 28, Soic Rohs Compliant: Yes |Microchip PIC16F1938-I/SO RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 6440
  • 1 $2.5100
  • 10 $2.4100
  • 25 $2.3000
  • 54 $2.1900
  • 108 $2.0800
$2.0800 / $2.5100 Buy Now
DISTI # PIC16F1938-I/SO
Avnet Americas MCU 8-bit PIC16 PIC RISC 28KB Flash 2.5V/3.3V/5V 28-Pin SOIC W Tube - Rail/Tube (Alt: PIC16F1938-I/SO) COO: Thailand RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 4 Weeks, 0 Days Container: Tube 20
  • 1 $2.0592
  • 2 $2.0416
  • 4 $2.0126
  • 8 $1.9835
  • 16 $1.9545
$1.9545 / $2.0592 Buy Now
DISTI # PIC16F1938-I/SO
Microchip Technology Inc 28-pin, 28KB Flash, 1KB RAM, 256B EEPROM, LCD, 1.8-5.5V, SOIC, Projected EOL: 2034-05-21 COO: Thailand ECCN: 3A991.a.2 RoHS: Compliant Lead time: 5 Weeks, 0 Days Container: Tube In Stock: 187 and Alternates Available
  • 1 $2.5100
  • 25 $2.3000
  • 100 $2.0800
  • 1,000 $1.9100
  • 5,000 $1.8200
$1.8200 / $2.5100 Buy Now
DISTI # 70415052
RS PIC16F1938-I/SO,8BIT PIC MICROCONTROLLER,32MHZ,16384 WORDS FLASH,28-PIN SOIC Min Qty: 324 Package Multiple: 1 Lead time: 52 Weeks, 0 Days Container: Bulk 0
  • 324 $2.5100
$2.5100 RFQ
Bristol Electronics   43
RFQ
Bristol Electronics   39
RFQ
DISTI # PIC16F1938-I/SO
TME IC: PIC microcontroller, 28kB, 32MHz, 1.8÷5.5VDC, SMD, SO28, PIC16 Min Qty: 1 161
  • 1 $2.6600
  • 5 $2.4500
  • 25 $2.3300
  • 108 $2.0400
$2.0400 / $2.6600 Buy Now
NAC 28KB Flash, 1KB RAM, 256B EEPROM, LCD, 1.8-5.5V. Package: 28 SOIC .300in TUBE - HI PINCOUNT FLASH EMR DEVICES Product Line RoHS: Compliant Min Qty: 162 Package Multiple: 27 Container: Tube 0
  • 1 $2.7100
  • 100 $2.4400
  • 500 $2.2600
  • 1,000 $2.2000
$2.2000 / $2.7100 Buy Now
DISTI # PIC16F1938-I/SO
Avnet Silica MCU 8bit PIC16 PIC RISC 28KB Flash 25V33V5V 28Pin SOIC W Tube (Alt: PIC16F1938-I/SO) RoHS: Compliant Min Qty: 297 Package Multiple: 27 Lead time: 6 Weeks, 0 Days Silica - 0
Buy Now
DISTI # PIC16F1938-I/SO
Chip One Stop Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Tube 184
  • 1 $2.1200
  • 10 $1.7900
  • 50 $1.4800
$1.4800 / $2.1200 Buy Now
Chip Stock MCU8-bitPIC16PICRISC28KBFlash2.5V/3.3V/5VAutomotive28-PinSOICWTube 13580
RFQ
DISTI # PIC16F1938-I/SO
EBV Elektronik MCU 8bit PIC16 PIC RISC 28KB Flash 25V33V5V 28Pin SOIC W Tube (Alt: PIC16F1938-I/SO) RoHS: Compliant Min Qty: 297 Package Multiple: 27 Lead time: 5 Weeks, 0 Days EBV - 0
Buy Now
Win Source Electronics 28/40/44-Pin Flash-Based, 8-Bit CMOS Microcontrollers with LCD Driver and nanoWatt Technology | IC MCU 8BIT 28KB FLASH 28SOIC 10080
  • 18 $2.8182
  • 38 $2.6363
  • 59 $2.5454
  • 85 $2.3636
  • 111 $2.2727
  • 138 $2.1818
$2.1818 / $2.8182 Buy Now

US Tariff Estimator: PIC16F1938-I/SO by Microchip Technology Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

PIC16F1938-I/SO
Microchip Technology Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for PIC16F1938-I/SO

PIC16F1938-I/SO CAD Models

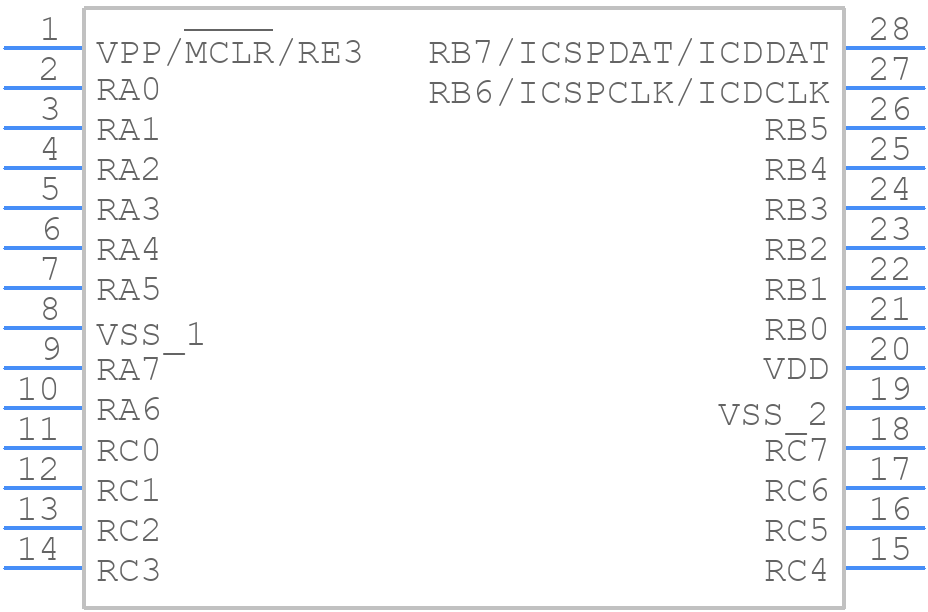

  • Part Symbol

    schematic symbol

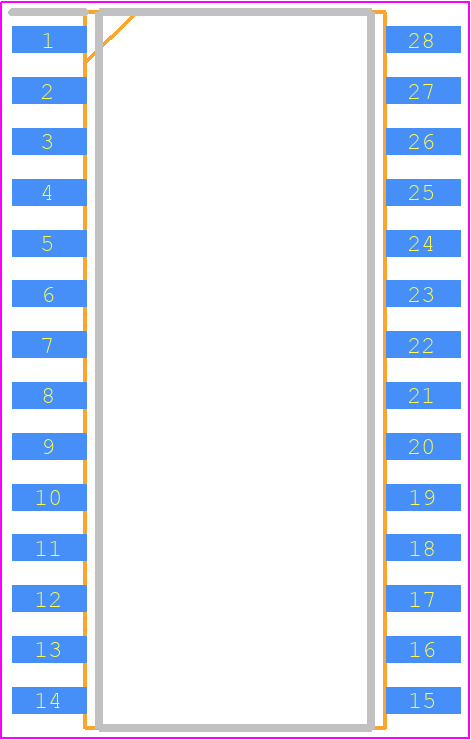

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC16F1938-I/SO Part Data Attributes

Parametric Data
PIC16F1938-I/SO Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC16F1938-I/SO Microchip Technology Inc 28-pin, 28KB Flash, 1KB RAM, 256B EEPROM, LCD, 1.8-5.5V
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Part Package Code SOIC
Package Description SOP, SOP28,.4
Pin Count 28
Manufacturer Package Code SOIC-28
Reach Compliance Code Compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 5 Weeks
Samacsys Manufacturer Microchip
Has ADC YES
Bit Size 8
Boundary Scan NO
CPU Family PIC16
Clock Frequency-Max 32 MHz
DAC Channels YES
DMA Channels NO
Format FIXED POINT
Integrated Cache NO
JESD-30 Code R-PDSO-G28
JESD-609 Code e3
Length 17.9 mm
Low Power Mode YES
Moisture Sensitivity Level 1
Number of External Interrupts 1
Number of I/O Lines 25
Number of Serial I/Os 1
Number of Terminals 28
Number of Timers 8
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP28,.4
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 1024
ROM (words) 28672
ROM Programmability FLASH
Seated Height-Max 2.65 mm
Speed 32 MHz
Supply Current-Max 4.1 mA
Supply Voltage-Max 5.5 V
Supply Voltage-Min 2.5 V
Supply Voltage-Nom 3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 40
Width 7.5 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for PIC16F1938-I/SO

This table gives cross-reference parts and alternative options found for PIC16F1938-I/SO. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC16F1938-I/SO, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
PIC16F1936-I/SO Microchip Technology Inc $2.1277 28-pin, 14KB Flash, 512B RAM, 256B EEPROM, LCD, 1.8-5.5V PIC16F1938-I/SO vs PIC16F1936-I/SO
PIC16F1936-E/SO Microchip Technology Inc $2.3532 28-pin, 14KB Flash, 512B RAM, 256B EEPROM, LCD, 1.8-5.5V PIC16F1938-I/SO vs PIC16F1936-E/SO
PIC16F1938T-I/SO Microchip Technology Inc $2.6200 28-pin, 28KB Flash, 1KB RAM, 256B EEPROM, LCD, 1.8-5.5V PIC16F1938-I/SO vs PIC16F1938T-I/SO
PIC16F1938-E/SO Microchip Technology Inc $2.6328 28-pin, 28KB Flash, 1KB RAM, 256B EEPROM, LCD, 1.8-5.5V PIC16F1938-I/SO vs PIC16F1938-E/SO
PIC16LF1938-E/SO Microchip Technology Inc $2.8200 28-pin, 28KB Flash, 1KB RAM, 256B EEPROM, LCD, 1.8-3.6V, Low Power PIC16F1938-I/SO vs PIC16LF1938-E/SO
PIC16F1936T-E/SO Microchip Technology Inc Check for Price 7KB Flash, 512 RAM, 10bit DAC, 2xOp Amp, 2xCOG, 3xCLC, ZCD PIC16F1938-I/SO vs PIC16F1936T-E/SO
PIC16F1936-E/SOVAO Microchip Technology Inc Check for Price 28-pin, 14KB Flash, 512B RAM, 256B EEPROM, LCD, 1.8-5.5V PIC16F1938-I/SO vs PIC16F1936-E/SOVAO
PIC16F1936T-E/SOVAO Microchip Technology Inc Check for Price 7KB Flash, 512 RAM, 10bit DAC, 2xOp Amp, 2xCOG, 3xCLC, ZCD PIC16F1938-I/SO vs PIC16F1936T-E/SOVAO
PIC16LF1938-I/SO Microchip Technology Inc Check for Price 28-pin, 28KB Flash, 1KB RAM, 256B EEPROM, LCD, 1.8-3.6V, Low Power PIC16F1938-I/SO vs PIC16LF1938-I/SO
Part Number Manufacturer Composite Price Description Compare
PIC16F18855T-I/SS Microchip Technology Inc $1.4760 14KB, 1KB RAM, 256 EE, 25 I/O, DSM, ADC w/MathPak, WWDT, CRC/SCAN, CIPs PIC16F1938-I/SO vs PIC16F18855T-I/SS
PIC16F18855T-I/ML Microchip Technology Inc $1.5900 14KB, 1KB RAM, 256 EE, 25 I/O, DSM, ADC w/MathPak, WWDT, CRC/SCAN, CIPs PIC16F1938-I/SO vs PIC16F18855T-I/ML
PIC16F18855-E/SO Microchip Technology Inc $1.6180 14KB, 1KB RAM, 256 EE, 25 I/O, DSM, ADC w/MathPak, WWDT, CRC/SCAN, CIPs PIC16F1938-I/SO vs PIC16F18855-E/SO
PIC16LF18856-E/ML Microchip Technology Inc $1.7238 28KB Flash, 2KB RAM, 256B EE, ADCC, Analog, PWM, CWG, SMT, HLT, WWDT, SCAN/CRC PIC16F1938-I/SO vs PIC16LF18856-E/ML
PIC16F1936-I/SS Microchip Technology Inc $2.1154 28-pin, 14KB Flash, 512B RAM, 256B EEPROM, LCD, 1.8-5.5V PIC16F1938-I/SO vs PIC16F1936-I/SS
PIC16F1938-I/MV Microchip Technology Inc $2.4131 28pin, 25KB Flash, 1 KB RAM, 256 EEPROM, LCD PIC16F1938-I/SO vs PIC16F1938-I/MV
PIC16LF1788-E/SS Microchip Technology Inc $2.8950 28-pin, 28KB Flash, 2KB RAM, 256 EEPROM, 12-bit DAC, 5-bit DAC, PSMC, OPAmp, PIC16F1938-I/SO vs PIC16LF1788-E/SS
PIC16F1938T-I/ML Microchip Technology Inc Check for Price 28-pin, 28KB Flash, 1KB RAM, 256B EEPROM, LCD, 1.8-5.5V PIC16F1938-I/SO vs PIC16F1938T-I/ML
PIC16LF18856T-I/MLVAO Microchip Technology Inc Check for Price 28KB Flash, 2KB RAM, 256B EE, ADCC, Analog, PWM, CWG, SMT, HLT, WWDT, SCAN/CRC PIC16F1938-I/SO vs PIC16LF18856T-I/MLVAO
PIC16F1938T-E/SSVAO Microchip Technology Inc Check for Price 28KB Flash, 1KB RAM, 256B EEPROM, LCD, 1.8-5.5V PIC16F1938-I/SO vs PIC16F1938T-E/SSVAO
equivalents icon

PIC16F1938-I/SO Related Parts

PIC16F1938-I/SO Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the PIC16F1938 is 32 MHz.

  • The PIC16F1938 has 28 KB of flash memory.

  • Yes, the PIC16F1938 is rated for operation in industrial temperature ranges (-40°C to +85°C) and can be used in harsh environments.

  • Yes, the PIC16F1938 has 11-channel, 10-bit ADCs.

  • Yes, the PIC16F1938 has a Capture/Compare/PWM (CCP) module that can be used for motor control applications.
