PIC16F628A-E/SO Information
PIC16F628A-E/SO by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for PIC16F628A-E/SO
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
65AH9170
|
Newark | Mcu, 8Bit, 20Mhz, Soic-18 Rohs Compliant: Yes |Microchip PIC16F628A-E/SO RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 23 |
|
$3.0000 | Buy Now |
|
DISTI #
PIC16F628A-E/SO
|
Avnet Americas | MCU 8-bit PIC16 PIC RISC 3.5KB Flash 3.3V/5V 18-Pin SOIC W Tube - Rail/Tube (Alt: PIC16F628A-E/SO) COO: China RoHS: Compliant Min Qty: 210 Package Multiple: 42 Lead time: 5 Weeks, 0 Days Container: Tube | 0 |
|
$3.0000 / $3.4286 | Buy Now |
|
DISTI #
PIC16F628A-E/SO
|
Microchip Technology Inc | N/A, SOIC, Projected EOL: 2034-07-15 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 5 Weeks, 0 Days Container: Tube | In Stock: 1076 and Alternates Available |
|
$2.2300 / $2.6300 | Buy Now |
|
DISTI #
70452789
|
RS | 3.5 KB FLASH, 224 RAM, 16 I/O18 SOIC .300IN TUBE Min Qty: 210 Package Multiple: 1 Lead time: 5 Weeks, 0 Days Container: Bulk | 0 |
|
$3.6000 | RFQ |
|
DISTI #
PIC16F628A-E/SO
|
TME | IC: PIC microcontroller, 3.5kB, 20MHz, A/E/USART,GPIO,ICSP, SMD Min Qty: 1 | 0 |
|
$3.2800 / $3.8300 | RFQ |
|
|
NAC | 3.5 KB Flash, 224 RAM, 16 I/O. Package: 18 SOIC .300in TUBE - LOW PINCOUT FLASH MR & BL DVCS Product Line RoHS: Compliant Min Qty: 126 Package Multiple: 42 Container: Tube | 0 |
|
$2.9300 / $3.5300 | Buy Now |
|
DISTI #
PIC16F628A-E/SO
|
Avnet Silica | MCU 8bit PIC16 PIC RISC 35KB Flash 33V5V 18Pin SOIC W Tube (Alt: PIC16F628A-E/SO) RoHS: Compliant Min Qty: 210 Package Multiple: 42 Lead time: 7 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
PIC16F628A-E/SO
|
EBV Elektronik | MCU 8bit PIC16 PIC RISC 35KB Flash 33V5V 18Pin SOIC W Tube (Alt: PIC16F628A-E/SO) RoHS: Compliant Min Qty: 210 Package Multiple: 42 Lead time: 6 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
LCSC | PIC 20MHz 16 SOIC-18-300mil Microcontrollers RoHS | 20 |
|
$4.3720 / $4.6317 | Buy Now |
US Tariff Estimator: PIC16F628A-E/SO by Microchip Technology Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for PIC16F628A-E/SO
PIC16F628A-E/SO CAD Models
-

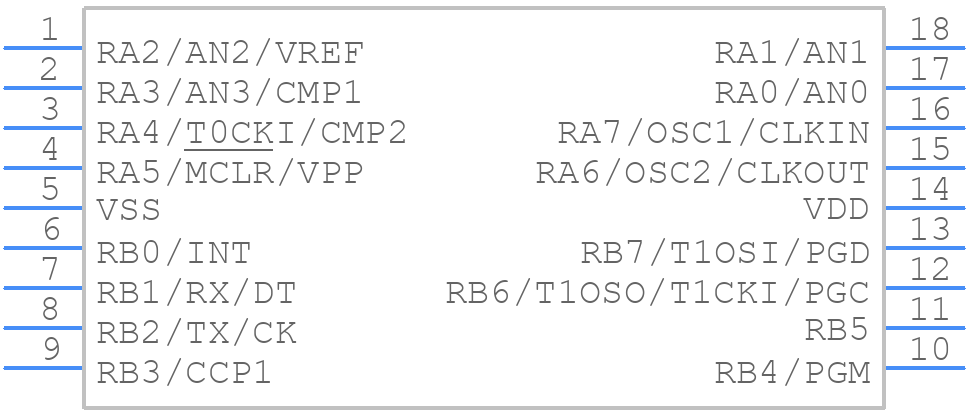

Part Symbol
-

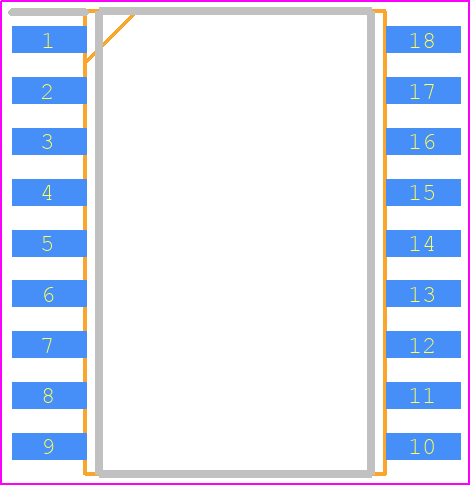

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
PIC16F628A-E/SO Part Data Attributes
|
|
PIC16F628A-E/SO
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
PIC16F628A-E/SO
Microchip Technology Inc
N/A
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Part Package Code | SOIC | |
| Package Description | SOP, SOP18,.4 | |
| Pin Count | 18 | |
| Manufacturer Package Code | SOIC-18 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 5 Weeks | |
| Samacsys Manufacturer | Microchip | |
| Has ADC | NO | |
| Address Bus Width | ||
| Bit Size | 8 | |
| Boundary Scan | NO | |
| CPU Family | PIC16 | |
| Clock Frequency-Max | 20 MHz | |
| DAC Channels | NO | |
| DMA Channels | NO | |
| External Data Bus Width | ||
| Format | FIXED POINT | |
| Integrated Cache | NO | |
| JESD-30 Code | R-PDSO-G18 | |
| JESD-609 Code | e3 | |
| Length | 11.55 mm | |
| Low Power Mode | YES | |
| Moisture Sensitivity Level | 1 | |
| Number of External Interrupts | 1 | |
| Number of I/O Lines | 16 | |
| Number of Terminals | 18 | |
| Number of Timers | 3 | |
| On Chip Program ROM Width | 14 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP18,.4 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 224 | |
| ROM (words) | 2048 | |
| ROM Programmability | FLASH | |
| Screening Level | TS 16949 | |
| Seated Height-Max | 2.65 mm | |
| Speed | 20 MHz | |
| Supply Current-Max | 3.5 mA | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Width | 7.5 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
