PIC16F876A-I/ML by: Microchip Technology Inc

No description available

Part Details for PIC16F876A-I/ML by Microchip Technology Inc

Results Overview of PIC16F876A-I/ML by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Internet of Things (IoT) Smart Cities

PIC16F876A-I/ML Information

PIC16F876A-I/ML by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC16F876A-I/ML

Part # Distributor Description Stock Price Buy
DISTI # 91AH8793
Newark Mcu, 8Bit, Pic16, 20Mhz, Qfn-28 Rohs Compliant: Yes |Microchip PIC16F876A-I/ML RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 231
  • 1 $5.9500
$5.9500 Buy Now
DISTI # PIC16F876A-I/ML
Avnet Americas MCU 8-Bit PIC16 PIC RISC 14KB Flash 5V 28-Pin QFN EP Tube - Rail/Tube (Alt: PIC16F876A-I/ML) COO: Thailand RoHS: Compliant Min Qty: 122 Package Multiple: 61 Lead time: 7 Weeks, 0 Days Container: Tube 0
  • 122 $6.8000
  • 244 $6.4324
  • 488 $6.2632
  • 976 $6.1026
  • 1,952 $5.9500
$5.9500 / $6.8000 Buy Now
DISTI # PIC16F876A-I/ML
Microchip Technology Inc No description available, VQFN, Projected EOL: 2034-01-02 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 7 Weeks, 0 Days Container: Tube In Stock: 52 and Alternates Available
  • 1 $5.8800
  • 25 $5.7200
  • 100 $5.5700
  • 1,000 $5.2400
  • 5,000 $5.0700
$5.0700 / $5.8800 Buy Now
DISTI # 70413911
RS MCU 14K FLASH 256B EEPROM 368B RAM QFN28 Min Qty: 122 Package Multiple: 1 Lead time: 40 Weeks, 0 Days Container: Bulk 0
  • 122 $7.1500
$7.1500 RFQ
DISTI # PIC16F876A-I/ML
IBS Electronics MCU 14K FLASH 256B EEPROM 368B RAM QFN28 | MICROCHIP TECHNOLOGY INC. PIC16F876A-I/ML Min Qty: 2 Package Multiple: 1 818
  • 2 $8.6940
  • 5 $8.6240
  • 20 $8.5120
  • 40 $8.4560
  • 100 $8.3300
$8.3300 / $8.6940 Buy Now
NAC 7 KB Flash, 368 RAM, 22 I/O. Package: 28 VQFN 6x6x1.0mm TUBE - HI PINCOUNT FLASH MR & BI DVCS Product Line RoHS: Compliant Min Qty: 61 Package Multiple: 61 Container: Tube 0
  • 1 $7.0000
  • 100 $6.3500
  • 500 $5.9500
  • 1,000 $5.8000
$5.8000 / $7.0000 Buy Now
DISTI # PIC16F876A-I/ML
Avnet Silica MCU 8Bit PIC16 PIC RISC 14KB Flash 5V 28Pin QFN EP Tube (Alt: PIC16F876A-I/ML) RoHS: Compliant Min Qty: 122 Package Multiple: 61 Lead time: 12 Weeks, 0 Days Silica - 0
Buy Now
DISTI # PIC16F876A-I/ML
EBV Elektronik MCU 8Bit PIC16 PIC RISC 14KB Flash 5V 28Pin QFN EP Tube (Alt: PIC16F876A-I/ML) RoHS: Compliant Min Qty: 122 Package Multiple: 61 Lead time: 11 Weeks, 0 Days EBV - 0
Buy Now

US Tariff Estimator: PIC16F876A-I/ML by Microchip Technology Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

PIC16F876A-I/ML
Microchip Technology Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for PIC16F876A-I/ML

PIC16F876A-I/ML CAD Models

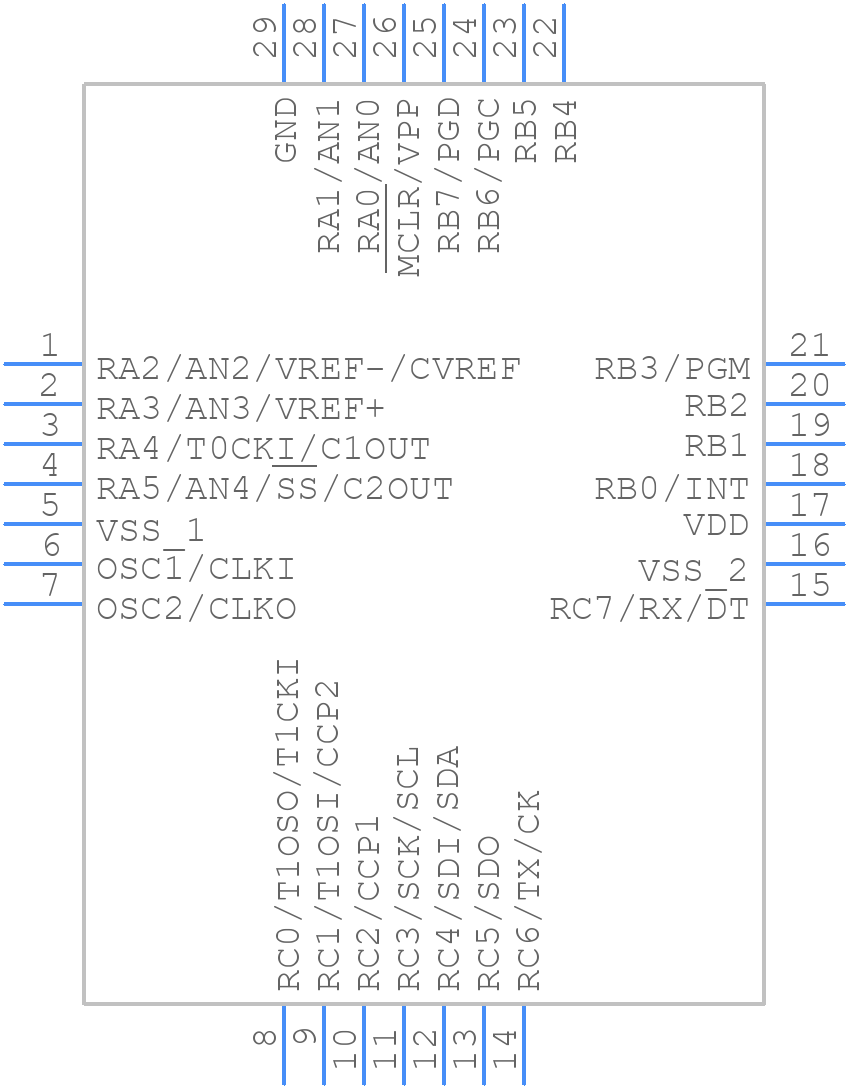

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC16F876A-I/ML Part Data Attributes

Parametric Data
PIC16F876A-I/ML Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC16F876A-I/ML Microchip Technology Inc No description available
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Part Package Code DFN
Package Description Vqccn, Lcc28,.24sq,25
Pin Count 28
Manufacturer Package Code VQFN-28
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Factory Lead Time 7 Weeks
Date Of Intro 1998-12-01
Has ADC Yes
Additional Feature Operates At 4 V Minimum Supply
Address Bus Width
Bit Size 8
Boundary Scan No
CPU Family Pic16
Clock Frequency-Max 20 Mhz
DAC Channels No
DMA Channels No
External Data Bus Width
Format Fixed Point
Integrated Cache No
JESD-30 Code S-PQCC-N28
JESD-609 Code e3
Length 6 Mm
Low Power Mode Yes
Moisture Sensitivity Level 1
Number of External Interrupts 1
Number of I/O Lines 22
Number of Terminals 28
Number of Timers 3
On Chip Data RAM Width 8
On Chip Program ROM Width 14
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels Yes
Package Body Material Plastic/Epoxy
Package Code VQCCN
Package Equivalence Code LCC28,.24SQ,25
Package Shape Square
Package Style Chip Carrier, Very Thin Profile
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 368
RAM (words) 368
ROM (words) 8192
ROM Programmability Flash
Seated Height-Max 1 Mm
Speed 20 Mhz
Supply Current-Max 15 Ma
Supply Voltage-Max 5.5 V
Supply Voltage-Min 5 V
Supply Voltage-Nom 5 V
Surface Mount Yes
Technology Cmos
Temperature Grade Industrial
Terminal Finish Matte Tin (Sn)
Terminal Form No Lead
Terminal Pitch 0.65 Mm
Terminal Position Quad
Width 6 Mm
uPs/uCs/Peripheral ICs Type Microcontroller, Risc

Alternate Parts for PIC16F876A-I/ML

This table gives cross-reference parts and alternative options found for PIC16F876A-I/ML. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC16F876A-I/ML, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
PIC16LF873A-I/ML Microchip Technology Inc $7.1000 No description available PIC16F876A-I/ML vs PIC16LF873A-I/ML
equivalents icon

PIC16F876A-I/ML Related Parts

PIC16F876A-I/ML Frequently Asked Questions (FAQ)

  • The maximum clock frequency for the PIC16F876A is 20 MHz.

  • The PIC16F876A has 8 KB of flash memory.

  • Yes, the PIC16F876A has a sleep mode that can reduce power consumption to as low as 0.1 μA, making it suitable for low-power applications.

  • Yes, the PIC16F876A has 5-channel, 10-bit ADCs.

  • Yes, the PIC16F876A has a built-in Universal Synchronous Asynchronous Receiver Transmitter (USART) for serial communication.
