PIC16LF1829T-I/SS by: Microchip Technology Inc

14 KB Flash, 1K bytes RAM. 32 MHz Int. Osc, 18 I/O

Part Details for PIC16LF1829T-I/SS by Microchip Technology Inc

Results Overview of PIC16LF1829T-I/SS by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Healthcare Automotive

PIC16LF1829T-I/SS Information

PIC16LF1829T-I/SS by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC16LF1829T-I/SS

Part # Distributor Description Stock Price Buy
DISTI # 44AC2758
Newark Mcu, 8Bit, Pic16, 32Mhz, Ssop-20, Product Range:Pic16 Family Pic16F18Xx Series Microcontrollers, Cpu Speed:32Mhz, Program Memory Size:14Kb, Ram Memory Size:1Kb, No. Of Pins:20Pins, Mcu Case Style:Ssop, No. Of I/O S:18I/O S, Embedded Rohs Compliant: Yes |Microchip PIC16LF1829T-I/SS RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 0
  • 1 $1.9600
  • 10 $1.8900
  • 25 $1.8100
  • 50 $1.7200
  • 100 $1.7200
$1.7200 / $1.9600 Buy Now
DISTI # 82R4409
Newark 14 Kb Flash, 1K Bytes Ram, 32 Mhz Int. Osc, 18 I/0, Enhanced Mid Range Core, Nanowatt Xlp 20 Ssop .209In T/R Rohs Compliant: Yes |Microchip PIC16LF1829T-I/SS RoHS: Compliant Min Qty: 1600 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1,600 $1.6800
$1.6800 Buy Now
DISTI # PIC16LF1829T-I/SS
Avnet Americas MCU 8-bit PIC16 PIC RISC 14KB Flash 2.5V/3.3V 20-Pin SSOP T/R - Tape and Reel (Alt: PIC16LF1829T-I/SS) COO: Thailand RoHS: Compliant Min Qty: 1600 Package Multiple: 1600 Lead time: 4 Weeks, 0 Days Container: Reel 0
  • 1,600 $1.9857
  • 3,200 $1.8784
  • 6,400 $1.8290
  • 9,600 $1.7820
  • 12,800 $1.7375
$1.7375 / $1.9857 Buy Now
DISTI # PIC16LF1829T-I/SS
Microchip Technology Inc 14 KB Flash, 1K bytes RAM. 32 MHz Int. Osc, 18 I/O, SSOP, Projected EOL: 2034-12-27 COO: Philippines, Thailand ECCN: EAR99 RoHS: Compliant Lead time: 7 Weeks, 0 Days Container: Reel In Stock: 6400 and Alternates Available
  • 1 $1.9600
  • 25 $1.8100
  • 100 $1.6300
  • 1,000 $1.5100
  • 5,000 $1.4300
$1.4300 / $1.9600 Buy Now
DISTI # 70452159
RS MCU 8-BIT PIC16 PIC RISC 14KB FLASH 2.5V/3.3V 20-PIN SSOP T/R Min Qty: 1600 Package Multiple: 1 Lead time: 52 Weeks, 0 Days Container: Bulk 0
  • 1,600 $3.2000
$3.2000 RFQ
DISTI # PIC16LF1829T-I/SS
IBS Electronics PIC16 SERIES 14 KB FLASH 1 KB RAM 32 MHZ 8-BIT MICROCONTROLLER - SSOP-20 Min Qty: 10 Package Multiple: 1 1600
  • 10 $4.7600
  • 100 $4.6900
  • 250 $4.6200
  • 400 $4.5500
  • 800 $2.8000
  • 1,200 $2.2120
  • 1,600 $2.1700
$2.1700 / $4.7600 Buy Now
NAC 14 KB Flash, 1K bytes RAM, 32 MHz Int. Osc, 18 I/0, Enhanced Mid Range Core, nanoWatt XLP. Package: 20 SSOP .209in T/R - LOW PINCONT FLASH EMR DEVICES Product Line RoHS: Compliant Min Qty: 1600 Package Multiple: 1600 0
  • 1 $2.1400
  • 100 $1.9300
  • 500 $1.7800
  • 1,000 $1.7400
$1.7400 / $2.1400 Buy Now
DISTI # PIC16LF1829T-I/SS
Avnet Silica MCU 8bit PIC16 PIC RISC 14KB Flash 25V33V 20Pin SSOP TR (Alt: PIC16LF1829T-I/SS) RoHS: Compliant Min Qty: 1600 Package Multiple: 1600 Lead time: 6 Weeks, 0 Days Silica - 0
Buy Now
Chip Stock PIC16Series14KBFlash1KBRAM32MHz8-BitMicrocontroller-SSOP-20 10810
RFQ
DISTI # PIC16LF1829T-I/SS
EBV Elektronik MCU 8bit PIC16 PIC RISC 14KB Flash 25V33V 20Pin SSOP TR (Alt: PIC16LF1829T-I/SS) RoHS: Compliant Min Qty: 1600 Package Multiple: 1600 Lead time: 5 Weeks, 0 Days EBV - 0
Buy Now
Win Source Electronics IC MCU 8BIT 14KB FLASH 20SSOP / PIC PIC® XLP™ mTouch™ 16F Microcontroller IC 8-Bit 32MHz 14KB (8K x 14) FLASH 20-SSOP 9310
  • 13 $4.7066
  • 30 $3.8623
  • 47 $3.7410
  • 64 $3.6209
  • 83 $3.4997
  • 111 $3.1381
$3.1381 / $4.7066 Buy Now

US Tariff Estimator: PIC16LF1829T-I/SS by Microchip Technology Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

PIC16LF1829T-I/SS
Microchip Technology Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for PIC16LF1829T-I/SS

PIC16LF1829T-I/SS CAD Models

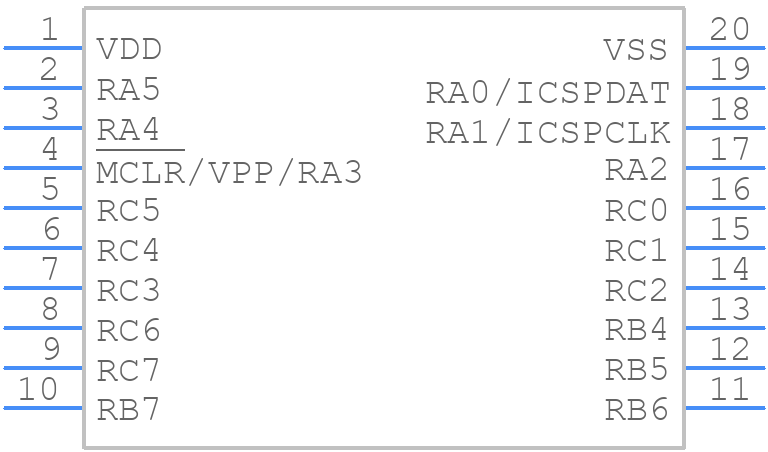

  • Part Symbol

    schematic symbol

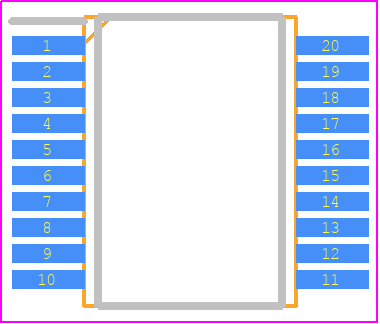

  • Footprint

    pcb footprint

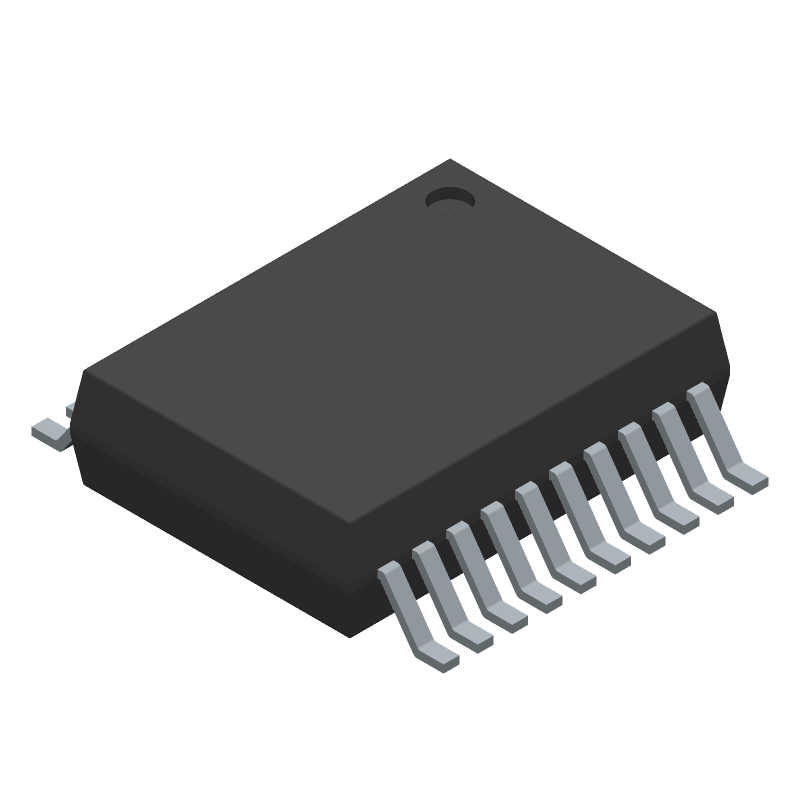

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC16LF1829T-I/SS Part Data Attributes

Parametric Data
PIC16LF1829T-I/SS Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC16LF1829T-I/SS Microchip Technology Inc 14 KB Flash, 1K bytes RAM. 32 MHz Int. Osc, 18 I/O
Rohs Code Yes
Part Life Cycle Code Active
Part Package Code SSOP
Package Description Ssop, Ssop20,.3
Pin Count 20
Manufacturer Package Code SSOP-20
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Factory Lead Time 7 Weeks
Has ADC Yes
Additional Feature Also Operates 1.8v Minimum Supply At 16 Mhz
Address Bus Width
Bit Size 8
Boundary Scan Yes
CPU Family Pic
Clock Frequency-Max 32 Mhz
DAC Channels Yes
DMA Channels No
External Data Bus Width
JESD-30 Code R-PDSO-G20
JESD-609 Code e3
Length 7.2 Mm
Moisture Sensitivity Level 1
Number of I/O Lines 18
Number of Terminals 20
On Chip Program ROM Width 14
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels Yes
Package Body Material Plastic/Epoxy
Package Code SSOP
Package Equivalence Code SSOP20,.3
Package Shape Rectangular
Package Style Small Outline, Shrink Pitch
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 1024
ROM (words) 8192
ROM Programmability Flash
Seated Height-Max 2 Mm
Speed 32 Mhz
Supply Current-Max 4.3 Ma
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 3 V
Surface Mount Yes
Technology Cmos
Temperature Grade Industrial
Terminal Finish Matte Tin (Sn)
Terminal Form Gull Wing
Terminal Pitch 0.65 Mm
Terminal Position Dual
Width 5.3 Mm
uPs/uCs/Peripheral ICs Type Microcontroller, Risc

Alternate Parts for PIC16LF1829T-I/SS

This table gives cross-reference parts and alternative options found for PIC16LF1829T-I/SS. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC16LF1829T-I/SS, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
PIC16LF1829-E/SS Microchip Technology Inc $1.9110 14 KB Flash, 1K bytes RAM. 32 MHz Int. Osc, 18 I/O PIC16LF1829T-I/SS vs PIC16LF1829-E/SS
Part Number Manufacturer Composite Price Description Compare
PIC16LF1829-I/P Microchip Technology Inc $1.0000 14 KB Flash, 1K bytes RAM, 32 MHz Int. Osc, 18 I/O PIC16LF1829T-I/SS vs PIC16LF1829-I/P
PIC16LF1829-I/GZ Microchip Technology Inc $1.8900 14 KB Flash, 1K bytes RAM, 32 MHz Int. Osc, 18 I/0, Enhanced Mid Range Core PIC16LF1829T-I/SS vs PIC16LF1829-I/GZ
PIC16LF1829T-I/GZ Microchip Technology Inc $1.9250 14 KB Flash, 1K bytes RAM, 32 MHz Int. Osc, 18 I/0, Enhanced Mid Range Core PIC16LF1829T-I/SS vs PIC16LF1829T-I/GZ
PIC16LF1829-E/ML Microchip Technology Inc $2.2750 14 KB Flash, 1K bytes RAM, 32 MHz Int. Osc. 12 I/O PIC16LF1829T-I/SS vs PIC16LF1829-E/ML
PIC16LF1829-E/SO Microchip Technology Inc $2.3550 14 KB Flash, 1K bytes RAM, 32 MHz Int. Osc, 18 I/O PIC16LF1829T-I/SS vs PIC16LF1829-E/SO
PIC16LF1829-E/MLVAO Microchip Technology Inc Check for Price 14 KB Flash, 1K bytes RAM, 32 MHz Int. Osc. 12 I/O PIC16LF1829T-I/SS vs PIC16LF1829-E/MLVAO
PIC16LF1829T-E/MLVAO Microchip Technology Inc Check for Price 14 KB Flash, 1K bytes RAM, 32 MHz Int. Osc. 12 I/O PIC16LF1829T-I/SS vs PIC16LF1829T-E/MLVAO
PIC16LF1829T-E/SO Microchip Technology Inc Check for Price 14 KB Flash, 1K bytes RAM, 32 MHz Int. Osc, 18 I/O PIC16LF1829T-I/SS vs PIC16LF1829T-E/SO
PIC16LF1829-I/MLVAO Microchip Technology Inc Check for Price 14 KB Flash, 1K bytes RAM, 32 MHz Int. Osc. 12 I/O PIC16LF1829T-I/SS vs PIC16LF1829-I/MLVAO
PIC16LF1829T-I/MLVAO Microchip Technology Inc Check for Price 14 KB Flash, 1K bytes RAM, 32 MHz Int. Osc. 12 I/O PIC16LF1829T-I/SS vs PIC16LF1829T-I/MLVAO
equivalents icon

PIC16LF1829T-I/SS Related Parts

PIC16LF1829T-I/SS Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the PIC16LF1829T-I/SS is 32 MHz.

  • The PIC16LF1829T-I/SS has 14 KB of flash memory.

  • The operating voltage range of the PIC16LF1829T-I/SS is 1.8V to 3.6V.

  • Yes, the PIC16LF1829T-I/SS has 256 bytes of built-in EEPROM.

  • The maximum current consumption of the PIC16LF1829T-I/SS is 15 mA at 32 MHz.
