PIC16LF18345-I/GZ by: Microchip Technology Inc

14KB Flash, 256 EEPROM, 1KB RAM, 12/18 I/O, 10-bit PWMs, CCP, CWG, CLC, NCO, PPS

Part Details for PIC16LF18345-I/GZ by Microchip Technology Inc

Results Overview of PIC16LF18345-I/GZ by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

PIC16LF18345-I/GZ Information

PIC16LF18345-I/GZ by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC16LF18345-I/GZ

Part # Distributor Description Stock Price Buy
DISTI # 52Y7593
Newark 14Kb, 1Kb Ram, 256 Eeprom, 10B Adc, Comparator, 5B Dac, 10B Pwm, Ccp, Clc, Nco, Cwg, Pps, Eusart, Spi, I2C 20 Uqfn 4X4X0.5Mm Tube Rohs Compliant: Yes |Microchip PIC16LF18345-I/GZ RoHS: Compliant Min Qty: 637 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 100 $1.1300
$1.1300 Buy Now
DISTI # PIC16LF18345-I/GZ
Avnet Americas MCU 8-Bit PIC16 PIC RISC 14KB Flash 3.3V 20-Pin UQFN EP Tube - Rail/Tube (Alt: PIC16LF18345-I/GZ) COO: Thailand RoHS: Compliant Min Qty: 546 Package Multiple: 91 Lead time: 11 Weeks, 0 Days Container: Tube 0
  • 546 $1.3286
  • 1,092 $1.2568
  • 2,184 $1.2237
  • 4,368 $1.1923
  • 8,736 $1.1625
$1.1625 / $1.3286 Buy Now
DISTI # PIC16LF18345-I/GZ
Microchip Technology Inc 14KB Flash, 256 EEPROM, 1KB RAM, 12/18 I/O, 10-bit PWMs, CCP, CWG, CLC, NCO, PPS, UQFN, Projected EOL: 2040-07-27 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 8 Weeks, 0 Days Container: Tube In Stock: 1949 and Alternates Available
  • 1 $1.3200
  • 25 $1.2100
  • 100 $1.0900
  • 1,000 $1.0100
  • 5,000 $0.9600
$0.9600 / $1.3200 Buy Now
DISTI # PIC16LF18345-I/GZ
TME IC: PIC microcontroller, 14kB, 32MHz, MSSP (SPI / I2C),UART, SMD Min Qty: 1 0
  • 1 $1.3900
  • 5 $1.3500
  • 25 $1.2700
$1.2700 / $1.3900 RFQ
DISTI # PIC16LF18345-I/GZ
IBS Electronics PIC PIC&#xAE, XLP&#x99, 16F MICROCONTROLLER IC 8-BIT 32MHZ 14KB (8K X 14) FLASH 20-UQFN (4 Min Qty: 728 Package Multiple: 1 0
  • 273 $1.4980
  • 455 $1.4980
  • 728 $1.5260
  • 1,820 $1.4700
  • 2,730 $1.4560
$1.4560 / $1.5260 Buy Now
NAC 14KB, 1KB RAM, 256 EEPROM, 10b ADC, Comparator, 5b DAC, 10b PWM, CCP, CLC, NCO, CWG, PPS, EUSART, SPI, I2C. Package: 20 UQFN 4x4x0.5mm TUBE - LOW PINCONT FLASH EMR DEVICES Product Line RoHS: Compliant Min Qty: 273 Package Multiple: 91 Container: Tube 0
  • 1 $1.4300
  • 100 $1.2900
  • 500 $1.1900
  • 1,000 $1.1600
$1.1600 / $1.4300 Buy Now
DISTI # PIC16LF18345-I/GZ
Chip One Stop Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Tube 572
  • 1 $0.8820
$0.8820 Buy Now
LCSC PIC 32MHz 18 UQFN-20-EP(4x4) Microcontrollers RoHS 14
  • 1 $1.5631
  • 10 $1.5212
  • 30 $1.4948
  • 100 $1.4669
$1.4669 / $1.5631 Buy Now

US Tariff Estimator: PIC16LF18345-I/GZ by Microchip Technology Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

PIC16LF18345-I/GZ
Microchip Technology Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for PIC16LF18345-I/GZ

PIC16LF18345-I/GZ CAD Models

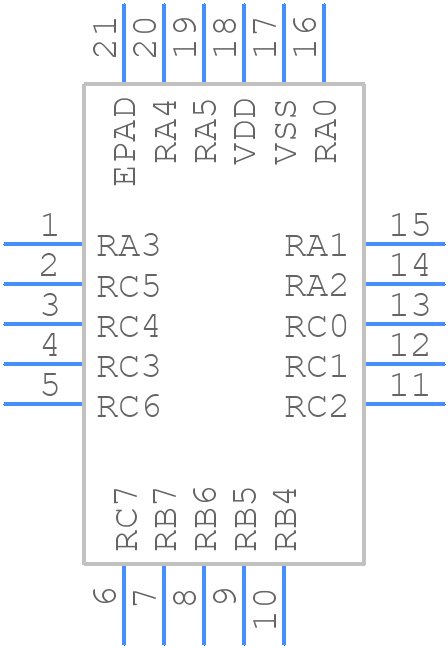

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

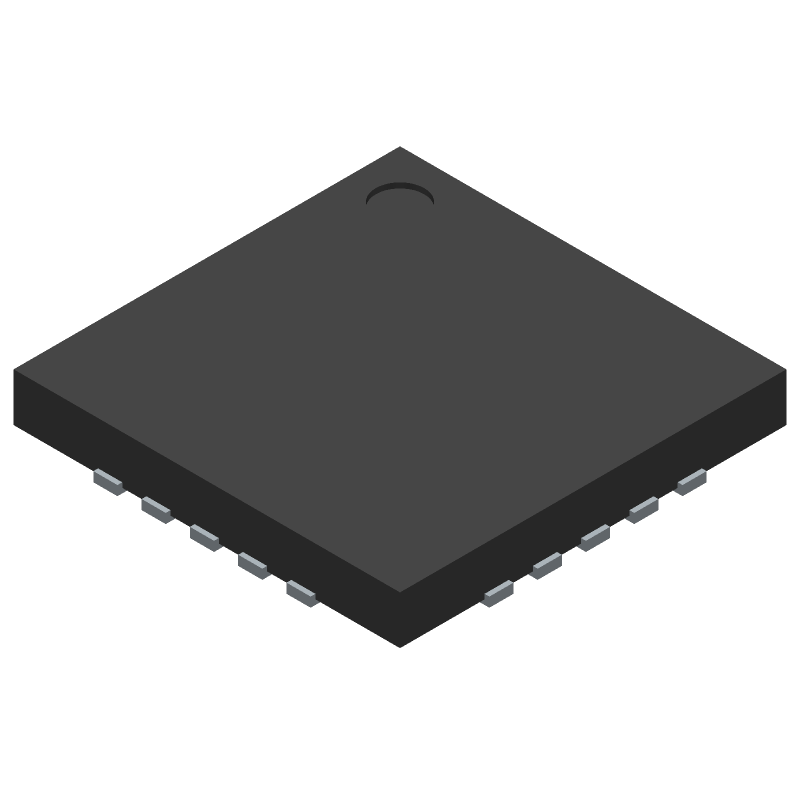

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC16LF18345-I/GZ Part Data Attributes

Parametric Data
PIC16LF18345-I/GZ Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC16LF18345-I/GZ Microchip Technology Inc 14KB Flash, 256 EEPROM, 1KB RAM, 12/18 I/O, 10-bit PWMs, CCP, CWG, CLC, NCO, PPS
Rohs Code Yes
Part Life Cycle Code Active
Package Description Hvqccn, Lcc20,.16sq,20
Pin Count 20
Manufacturer Package Code UQFN-20
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Factory Lead Time 8 Weeks
Has ADC Yes
Additional Feature Operates At 1.8v Min @ 16 Mhz
Bit Size 8
Boundary Scan No
CPU Family Pic16
Clock Frequency-Max 32 Mhz
DAC Channels Yes
DMA Channels No
Format Fixed Point
Integrated Cache No
JESD-30 Code S-PQCC-N20
JESD-609 Code e3
Length 4 Mm
Low Power Mode Yes
Number of External Interrupts 1
Number of I/O Lines 18
Number of Serial I/Os 1
Number of Terminals 20
Number of Timers 9
On Chip Data RAM Width 8
On Chip Program ROM Width 14
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels Yes
Package Body Material Plastic/Epoxy
Package Code HVQCCN
Package Equivalence Code LCC20,.16SQ,20
Package Shape Square
Package Style Chip Carrier, Heat Sink/Slug, Very Thin Profile
Qualification Status Not Qualified
RAM (bytes) 1024
ROM (words) 8192
ROM Programmability Flash
Seated Height-Max 0.55 Mm
Speed 32 Mhz
Supply Current-Max 3 Ma
Supply Voltage-Max 3.6 V
Supply Voltage-Min 2.5 V
Supply Voltage-Nom 3 V
Surface Mount Yes
Technology Cmos
Temperature Grade Industrial
Terminal Finish Matte Tin (Sn)
Terminal Form No Lead
Terminal Pitch 0.5 Mm
Terminal Position Quad
Width 4 Mm
uPs/uCs/Peripheral ICs Type Microcontroller, Risc

Alternate Parts for PIC16LF18345-I/GZ

This table gives cross-reference parts and alternative options found for PIC16LF18345-I/GZ. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC16LF18345-I/GZ, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
PIC16LF18345-I/SS Microchip Technology Inc $1.2498 14KB Flash, 256B EEPROM, 1KB RAM, 18 I/O, 10-bit PWMs, CCP, CWG PIC16LF18345-I/GZ vs PIC16LF18345-I/SS
PIC16LF18345-E/GZ Microchip Technology Inc $1.4252 14KB Flash, 256 EEPROM, 1KB RAM, 12/18 I/O, 10-bit PWMs, CCP, CWG, CLC, NCO, PPS PIC16LF18345-I/GZ vs PIC16LF18345-E/GZ
PIC16F18345-I/SO Microchip Technology Inc $1.4688 14KB Flash, 256B EEPROM, 1KB RAM, 18 I/O, 10-bit PWMs, CCP, CWG PIC16LF18345-I/GZ vs PIC16F18345-I/SO
PIC16LF18345-I/SO Microchip Technology Inc $1.4834 14KB Flash, 256B EEPROM, 1KB RAM, 18 I/O, 10-bit PWMs, CCP, CWG PIC16LF18345-I/GZ vs PIC16LF18345-I/SO
PIC16F18345-E/SO Microchip Technology Inc $1.5389 14KB Flash, 256B EEPROM, 1KB RAM, 18 I/O, 10-bit PWMs, CCP, CWG PIC16LF18345-I/GZ vs PIC16F18345-E/SO
PIC16LF18345-E/SO Microchip Technology Inc $1.5488 14KB Flash, 256B EEPROM, 1KB RAM, 18 I/O, 10-bit PWMs, CCP, CWG PIC16LF18345-I/GZ vs PIC16LF18345-E/SO
PIC16LF18345T-I/SO Microchip Technology Inc $1.6200 14KB Flash, 256B EEPROM, 1KB RAM, 18 I/O, 10-bit PWMs, CCP, CWG PIC16LF18345-I/GZ vs PIC16LF18345T-I/SO
PIC16LF18345-E/P Microchip Technology Inc $2.0382 14KB Flash, 256B EEPROM, 1KB RAM, 18 I/O, 10-bit PWMs, CCP, CWG PIC16LF18345-I/GZ vs PIC16LF18345-E/P
PIC16F18345T-E/6NVAO Microchip Technology Inc Check for Price 14KB Flash, 256 EEPROM, 1KB RAM, 12/18 I/O, 10-bit PWMs, CCP, CWG, CLC, NCO, PPS PIC16LF18345-I/GZ vs PIC16F18345T-E/6NVAO
PIC16LF18345T-I/SS Microchip Technology Inc Check for Price 14KB Flash, 256B EEPROM, 1KB RAM, 18 I/O, 10-bit PWMs, CCP, CWG PIC16LF18345-I/GZ vs PIC16LF18345T-I/SS
equivalents icon

PIC16LF18345-I/GZ Related Parts

PIC16LF18345-I/GZ Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the PIC16LF18345 is 32 MHz.

  • The PIC16LF18345 has 14 KB of flash memory.

  • No, the PIC16LF18345 is a low-voltage device and operates at a maximum voltage of 3.6V.

  • No, the PIC16LF18345 does not have built-in USB support. However, it can be used with external USB controllers.

  • The current consumption of the PIC16LF18345 in sleep mode is typically around 20 nA.
