PIC16LF18345-I/SS by: Microchip Technology Inc

14KB Flash, 256B EEPROM, 1KB RAM, 18 I/O, 10-bit PWMs, CCP, CWG

Part Details for PIC16LF18345-I/SS by Microchip Technology Inc

Results Overview of PIC16LF18345-I/SS by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

PIC16LF18345-I/SS Information

PIC16LF18345-I/SS by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC16LF18345-I/SS

Part # Distributor Description Stock Price Buy
DISTI # 41Y5703
Newark Mcu, 8Bit, 32Mhz, Ssop-20, Product Range:Pic16 Family Pic16Lf183Xx Series Microcontrollers, Device Core:Pic16, Operating Frequency Max:32Mhz, Program Memory Size:14Kb, No. Of Pins:20Pins, Ic Case/Package:Ssop, No. Of I/O S:17I/O S Rohs Compliant: Yes |Microchip PIC16LF18345-I/SS RoHS: Compliant Min Qty: 670 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 100 $1.1000
$1.1000 Buy Now
DISTI # PIC16LF18345-I/SS
Avnet Americas MCU 8-Bit PIC16 PIC RISC 14KB Flash 3.3V 20-Pin SSOP Tube - Rail/Tube (Alt: PIC16LF18345-I/SS) COO: Thailand RoHS: Compliant Min Qty: 603 Package Multiple: 67 Lead time: 4 Weeks, 0 Days Container: Tube 0
  • 603 $1.2857
  • 1,206 $1.2162
  • 2,412 $1.1842
  • 4,824 $1.1539
  • 9,648 $1.1250
$1.1250 / $1.2857 Buy Now
DISTI # PIC16LF18345-I/SS
Microchip Technology Inc 14KB Flash, 256B EEPROM, 1KB RAM, 18 I/O, 10-bit PWMs, CCP, CWG, SSOP, Projected EOL: 2040-07-27 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Tube In Stock: 28126 and Alternates Available
  • 1 $1.2800
  • 25 $1.1800
  • 100 $1.0600
  • 1,000 $0.9800
  • 5,000 $0.9300
$0.9300 / $1.2800 Buy Now
DISTI # PIC16LF18345-I/SS
TME IC: PIC microcontroller, 14kB, 32MHz, MSSP (SPI / I2C),UART, SMD Min Qty: 1 0
  • 1 $1.3600
  • 5 $1.3000
  • 25 $1.2200
$1.2200 / $1.3600 RFQ
DISTI # PIC16LF18345-I/SS
IBS Electronics PIC16 8-BIT MCU 14KB 1KB RAM 256B EEPROM 10B ADC IN A 20 PIN SSOP PKG Min Qty: 67 Package Multiple: 1 1273
  • 67 $1.3454
  • 268 $1.3174
  • 536 $1.2978
  • 1,005 $1.2782
  • 2,546 $1.2558
  • 5,025 $1.2362
$1.2362 / $1.3454 Buy Now
NAC 14KB, 1KB RAM, 256B EEPROM, 10b ADC, Comparator, 5b DAC, 10b PWM, CCP, CLC, NCO, CWG, PPS, EUSART, SPI, I2C. Package: 20 SSOP .209in TUBE - LOW PINCONT FLASH EMR DEVICES Product Line RoHS: Compliant Min Qty: 335 Package Multiple: 67 Container: Tube 0
  • 1 $1.3800
  • 100 $1.2500
  • 500 $1.1500
  • 1,000 $1.1300
$1.1300 / $1.3800 Buy Now
DISTI # PIC16LF18345-I/SS
Avnet Silica MCU 8Bit PIC16 PIC RISC 14KB Flash 33V 20Pin SSOP Tube (Alt: PIC16LF18345-I/SS) RoHS: Compliant Min Qty: 603 Package Multiple: 67 Lead time: 6 Weeks, 0 Days Silica - 0
Buy Now
DISTI # PIC16LF18345-I/SS
EBV Elektronik MCU 8Bit PIC16 PIC RISC 14KB Flash 33V 20Pin SSOP Tube (Alt: PIC16LF18345-I/SS) RoHS: Compliant Min Qty: 603 Package Multiple: 67 Lead time: 5 Weeks, 0 Days EBV - 0
Buy Now

US Tariff Estimator: PIC16LF18345-I/SS by Microchip Technology Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

PIC16LF18345-I/SS
Microchip Technology Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for PIC16LF18345-I/SS

PIC16LF18345-I/SS CAD Models

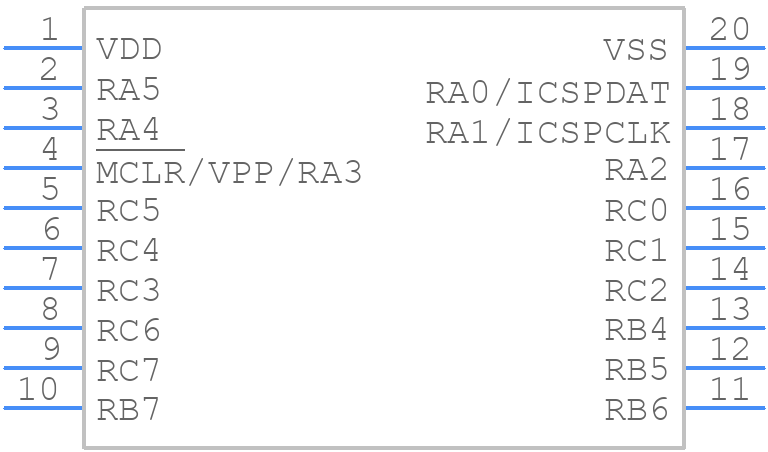

  • Part Symbol

    schematic symbol

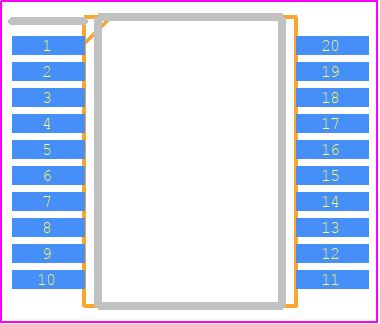

  • Footprint

    pcb footprint

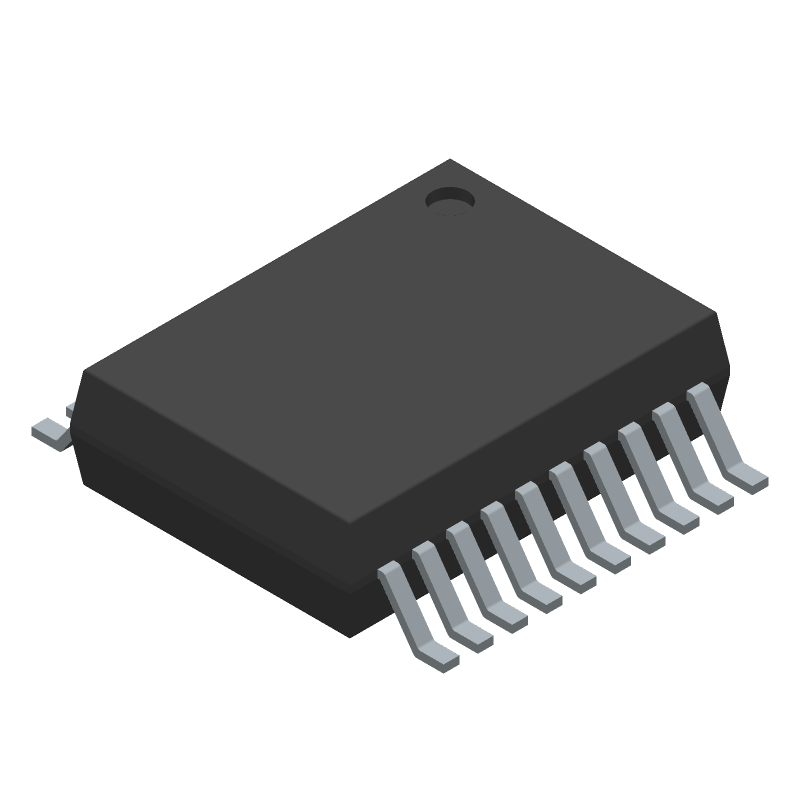

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC16LF18345-I/SS Part Data Attributes

Parametric Data
PIC16LF18345-I/SS Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC16LF18345-I/SS Microchip Technology Inc 14KB Flash, 256B EEPROM, 1KB RAM, 18 I/O, 10-bit PWMs, CCP, CWG
Rohs Code Yes
Part Life Cycle Code Active
Package Description Ssop, Ssop20,.3
Pin Count 20
Manufacturer Package Code SSOP-20
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Factory Lead Time 6 Weeks
Has ADC Yes
Additional Feature Operates At 1.8v Min @ 16 Mhz
Bit Size 8
Boundary Scan No
CPU Family Pic16
Clock Frequency-Max 32 Mhz
DAC Channels Yes
DMA Channels No
Format Fixed Point
Integrated Cache No
JESD-30 Code R-PDSO-G20
JESD-609 Code e3
Length 7.2 Mm
Low Power Mode Yes
Number of External Interrupts 1
Number of I/O Lines 18
Number of Serial I/Os 1
Number of Terminals 20
Number of Timers 9
On Chip Data RAM Width 8
On Chip Program ROM Width 14
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels Yes
Package Body Material Plastic/Epoxy
Package Code SSOP
Package Equivalence Code SSOP20,.3
Package Shape Rectangular
Package Style Small Outline, Shrink Pitch
Qualification Status Not Qualified
RAM (bytes) 1024
ROM (words) 8192
ROM Programmability Flash
Seated Height-Max 2 Mm
Speed 32 Mhz
Supply Current-Max 3 Ma
Supply Voltage-Max 3.6 V
Supply Voltage-Min 2.5 V
Supply Voltage-Nom 3 V
Surface Mount Yes
Technology Cmos
Temperature Grade Industrial
Terminal Finish Matte Tin (Sn)
Terminal Form Gull Wing
Terminal Pitch 0.65 Mm
Terminal Position Dual
Width 5.3 Mm
uPs/uCs/Peripheral ICs Type Microcontroller, Risc

Alternate Parts for PIC16LF18345-I/SS

This table gives cross-reference parts and alternative options found for PIC16LF18345-I/SS. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC16LF18345-I/SS, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
PIC16LF18345T-E/SSVAO Microchip Technology Inc Check for Price 14KB Flash, 256B EEPROM, 1KB RAM, 18 I/O, 10-bit PWMs, CCP, CWG PIC16LF18345-I/SS vs PIC16LF18345T-E/SSVAO
PIC16LF18345-E/SSVAO Microchip Technology Inc Check for Price 14KB Flash, 256B EEPROM, 1KB RAM, 18 I/O, 10-bit PWMs, CCP, CWG PIC16LF18345-I/SS vs PIC16LF18345-E/SSVAO
PIC16LF18345T-I/SSVAO Microchip Technology Inc Check for Price 14KB Flash, 256B EEPROM, 1KB RAM, 18 I/O, 10-bit PWMs, CCP, CWG PIC16LF18345-I/SS vs PIC16LF18345T-I/SSVAO
Part Number Manufacturer Composite Price Description Compare
PIC16F18345-E/GZ Microchip Technology Inc $1.4252 14KB Flash, 256 EEPROM, 1KB RAM, 12/18 I/O, 10-bit PWMs, CCP, CWG, CLC, NCO, PPS PIC16LF18345-I/SS vs PIC16F18345-E/GZ
PIC16F18345-I/SO Microchip Technology Inc $1.4688 14KB Flash, 256B EEPROM, 1KB RAM, 18 I/O, 10-bit PWMs, CCP, CWG PIC16LF18345-I/SS vs PIC16F18345-I/SO
PIC16F18345-E/SO Microchip Technology Inc $1.5389 14KB Flash, 256B EEPROM, 1KB RAM, 18 I/O, 10-bit PWMs, CCP, CWG PIC16LF18345-I/SS vs PIC16F18345-E/SO
PIC16LF18345-E/SO Microchip Technology Inc $1.5488 14KB Flash, 256B EEPROM, 1KB RAM, 18 I/O, 10-bit PWMs, CCP, CWG PIC16LF18345-I/SS vs PIC16LF18345-E/SO
PIC16LF18345-I/P Microchip Technology Inc $1.7952 14KB Flash, 256B EEPROM, 1KB RAM, 18 I/O, 10-bit PWMs, CCP, CWG PIC16LF18345-I/SS vs PIC16LF18345-I/P
PIC16F18345-I/P Microchip Technology Inc $1.8285 14KB Flash, 256B EEPROM, 1KB RAM, 18 I/O, 10-bit PWMs, CCP, CWG PIC16LF18345-I/SS vs PIC16F18345-I/P
PIC16LF18345-E/P Microchip Technology Inc $2.0382 14KB Flash, 256B EEPROM, 1KB RAM, 18 I/O, 10-bit PWMs, CCP, CWG PIC16LF18345-I/SS vs PIC16LF18345-E/P
PIC16F18345T-E/6NVAO Microchip Technology Inc Check for Price 14KB Flash, 256 EEPROM, 1KB RAM, 12/18 I/O, 10-bit PWMs, CCP, CWG, CLC, NCO, PPS PIC16LF18345-I/SS vs PIC16F18345T-E/6NVAO
PIC16F18345-E/6NVAO Microchip Technology Inc Check for Price 14KB Flash, 256 EEPROM, 1KB RAM, 12/18 I/O, 10-bit PWMs, CCP, CWG, CLC, NCO, PPS PIC16LF18345-I/SS vs PIC16F18345-E/6NVAO
PIC16F18345T-H/SSVAO Microchip Technology Inc Check for Price 14KB Flash, 256B EEPROM, 1KB RAM, 18 I/O, 10-bit PWMs, CCP, CWG PIC16LF18345-I/SS vs PIC16F18345T-H/SSVAO
equivalents icon

PIC16LF18345-I/SS Frequently Asked Questions (FAQ)

  • The maximum operating frequency of the PIC16LF18345-I/SS is 32 MHz.

  • The PIC16LF18345-I/SS has 14 KB of flash memory.

  • No, the PIC16LF18345-I/SS is a low-voltage device and operates at a maximum voltage of 3.6V.

  • Yes, the PIC16LF18345-I/SS has 256 bytes of built-in EEPROM.

  • The current consumption of the PIC16LF18345-I/SS in sleep mode is typically around 20 nA.
