PIC16LF628A-I/SS by: Microchip Technology Inc

N/A

Part Details for PIC16LF628A-I/SS by Microchip Technology Inc

Results Overview of PIC16LF628A-I/SS by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Agriculture Technology Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Automotive Consumer Electronics Education and Research Computing and Data Storage Healthcare Electronic Manufacturing Communication and Networking Robotics and Drones

PIC16LF628A-I/SS Information

PIC16LF628A-I/SS by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC16LF628A-I/SS

Part # Distributor Description Stock Price Buy
DISTI # 24M5916
Newark 8 Bit Microcontroller, Flash, Pic16Lf6Xx, 20 Mhz, 3.5 Kb, 224 Byte, 20, Ssop Rohs Compliant: Yes |Microchip PIC16LF628A-I/SS RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 78
  • 1 $2.7500
$2.7500 Buy Now
DISTI # PIC16LF628A-I/SS
Avnet Americas MCU 8-bit PIC16 PIC RISC 3.5KB Flash 2.5V/3.3V/5V 20-Pin SSOP Tube - Rail/Tube (Alt: PIC16LF628A-I/SS) COO: Thailand RoHS: Compliant Min Qty: 201 Package Multiple: 67 Lead time: 4 Weeks, 0 Days Container: Tube 0
  • 201 $3.6143
  • 335 $3.4189
  • 536 $3.3289
  • 1,005 $3.2436
  • 2,010 $3.1625
$3.1625 / $3.6143 Buy Now
DISTI # 24M5916
Avnet Americas MCU 8-bit PIC16 PIC RISC 3.5KB Flash 2.5V/3.3V/5V 20-Pin SSOP Tube (Alt: 24M5916) RoHS: Compliant Min Qty: 1 Package Multiple: 1 0
  • 1 $3.1600
$3.1600 Buy Now
DISTI # PIC16LF628A-I/SS
Microchip Technology Inc N/A, SSOP, Projected EOL: 2034-03-05 COO: Philippines, Thailand ECCN: EAR99 RoHS: Compliant Lead time: 5 Weeks, 0 Days Container: Tube In Stock: 9598 and Alternates Available
  • 1 $2.7700
  • 25 $2.6700
  • 100 $2.5700
  • 1,000 $2.4300
  • 5,000 $2.3300
$2.3300 / $2.7700 Buy Now
DISTI # 70047094
RS 20-PIN, 3.5 KB FLASH, 224 RAM, 16 I/O, SSOP Min Qty: 201 Package Multiple: 1 Lead time: 27 Weeks, 0 Days Container: Bulk 0
  • 201 $3.8000
$3.8000 RFQ
Bristol Electronics   Min Qty: 1 47
  • 1 $5.1520
  • 6 $3.3488
  • 16 $2.5760
$2.5760 / $5.1520 Buy Now
Bristol Electronics   4
RFQ
NAC 3.5 KB Flash, 224 RAM, 16 I/O. Package: 20 SSOP .209in TUBE - LOW PINCOUT FLASH MR & BL DVCS Product Line RoHS: Compliant Min Qty: 134 Package Multiple: 67 Container: Tube 0
  • 1 $3.7200
  • 100 $3.3700
  • 500 $3.1600
  • 1,000 $3.0900
$3.0900 / $3.7200 Buy Now
DISTI # PIC16LF628A-I/SS
Avnet Silica MCU 8bit PIC16 PIC RISC 35KB Flash 25V33V5V 20Pin SSOP Tube (Alt: PIC16LF628A-I/SS) RoHS: Compliant Min Qty: 201 Package Multiple: 67 Lead time: 6 Weeks, 0 Days Silica - 0
Buy Now
Chip Stock MCU8-bitPIC16PICRISC3.5KBFlash2.5V/3.3V/5V20-PinSSOPTube-Rail/Tube 15100
RFQ
DISTI # PIC16LF628A-I/SS
EBV Elektronik MCU 8bit PIC16 PIC RISC 35KB Flash 25V33V5V 20Pin SSOP Tube (Alt: PIC16LF628A-I/SS) RoHS: Compliant Min Qty: 201 Package Multiple: 67 Lead time: 5 Weeks, 0 Days EBV - 0
Buy Now
LCSC PIC 20MHz 16 SSOP-20-208mil Microcontrollers RoHS 25
  • 1 $7.3131
  • 10 $7.1261
  • 30 $7.0018
  • 100 $6.8761
$6.8761 / $7.3131 Buy Now
Win Source Electronics IC MCU 8BIT 3.5KB FLASH 20SSOP 11600
  • 8 $8.1612
  • 18 $6.6967
  • 27 $6.4865
  • 37 $6.2774
  • 48 $6.0684
  • 64 $5.4412
$5.4412 / $8.1612 Buy Now

US Tariff Estimator: PIC16LF628A-I/SS by Microchip Technology Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

PIC16LF628A-I/SS
Microchip Technology Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for PIC16LF628A-I/SS

PIC16LF628A-I/SS CAD Models

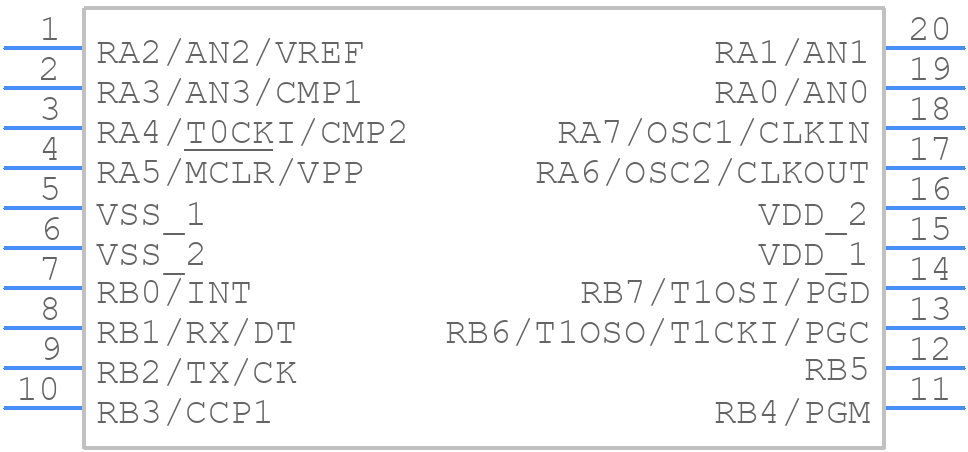

  • Part Symbol

    schematic symbol

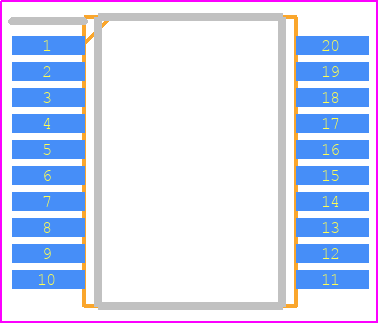

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC16LF628A-I/SS Part Data Attributes

Parametric Data
PIC16LF628A-I/SS Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC16LF628A-I/SS Microchip Technology Inc N/A
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Part Package Code SSOP
Package Description SSOP, SSOP20,.3
Pin Count 20
Manufacturer Package Code SSOP-20
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Factory Lead Time 5 Weeks
Samacsys Manufacturer Microchip
Has ADC NO
Address Bus Width
Bit Size 8
Boundary Scan NO
CPU Family PIC16
Clock Frequency-Max 20 MHz
DAC Channels NO
DMA Channels NO
External Data Bus Width
Format FIXED POINT
Integrated Cache NO
JESD-30 Code R-PDSO-G20
JESD-609 Code e3
Length 7.2 mm
Low Power Mode YES
Moisture Sensitivity Level 1
Number of External Interrupts 1
Number of I/O Lines 16
Number of Terminals 20
Number of Timers 3
On Chip Program ROM Width 14
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code SSOP
Package Equivalence Code SSOP20,.3
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 224
ROM (words) 2048
ROM Programmability FLASH
Screening Level TS 16949
Seated Height-Max 2 mm
Speed 20 MHz
Supply Current-Max 3.5 mA
Supply Voltage-Max 5.5 V
Supply Voltage-Min 2 V
Supply Voltage-Nom 5 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 40
Width 5.3 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for PIC16LF628A-I/SS

This table gives cross-reference parts and alternative options found for PIC16LF628A-I/SS. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC16LF628A-I/SS, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
PIC16LF628A-I/SO Microchip Technology Inc $0.8616 N/A PIC16LF628A-I/SS vs PIC16LF628A-I/SO
PIC16LF628AT-I/SS Microchip Technology Inc $1.5214 N/A PIC16LF628A-I/SS vs PIC16LF628AT-I/SS
PIC16LF628A-I/ML Microchip Technology Inc $3.5750 N/A PIC16LF628A-I/SS vs PIC16LF628A-I/ML
PIC16LF628A-I/SOG Microchip Technology Inc Check for Price N/A PIC16LF628A-I/SS vs PIC16LF628A-I/SOG
PIC16LF628AT-I/SO Microchip Technology Inc Check for Price N/A PIC16LF628A-I/SS vs PIC16LF628AT-I/SO
equivalents icon

PIC16LF628A-I/SS Related Parts

PIC16LF628A-I/SS Frequently Asked Questions (FAQ)

  • The maximum clock frequency for the PIC16LF628A is 20 MHz.

  • The PIC16LF628A consumes approximately 100 nA in sleep mode.

  • No, the PIC16LF628A is a low-voltage device and should be operated between 2.0V and 4.0V.

  • The PIC16LF628A has 18 I/O pins.

  • Yes, the PIC16LF628A has 128 bytes of built-in EEPROM.
