Microcontrollers and Processors / Microcontrollers / PIC18F25J11-I/SS
Datasheets
packagee
PIC18F25J11-I/SS by:
Microchip Technology Inc

32KB Flash, 4KB RAM, 12 MIPS, nanowatt XLP

Part Details for PIC18F25J11-I/SS by Microchip Technology Inc

Results Overview of PIC18F25J11-I/SS by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Automotive Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Entertainment and Gaming

PIC18F25J11-I/SS Information

PIC18F25J11-I/SS by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC18F25J11-I/SS

Part # Distributor Description Stock Price Buy
DISTI # 98M1782
Newark Microcontroller Mcu, 8 Bit, Pic18, 48Mhz, Ssop-28, Product Range:Pic18 Family Pic18Fj1X Series Microcontrollers, Device Core:Pic18, Operating Frequency Max:48Mhz, Program Memory Size:32Kb, No. Of Pins:28Pins, Ic Case/Package:Ssop Rohs Compliant: Yes |Microchip PIC18F25J11-I/SS RoHS: Compliant Min Qty: 235 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 141 $2.9000
$2.9000 Buy Now
DISTI # PIC18F25J11-I/SS
Avnet Americas MCU 8-bit PIC18 PIC RISC 32KB Flash 2.5V/3.3V 28-Pin SSOP Tube - Rail/Tube (Alt: PIC18F25J11-I/SS) COO: China RoHS: Compliant Min Qty: 235 Package Multiple: 47 Lead time: 4 Weeks, 0 Days Container: Tube 0
  • 235 $3.5286
  • 329 $3.3378
  • 564 $3.2500
  • 1,175 $3.1667
  • 2,350 $3.0875
$3.0875 / $3.5286 Buy Now
DISTI # PIC18F25J11-I/SS
Microchip Technology Inc 32KB Flash, 4KB RAM, 12 MIPS, nanowatt XLP, SSOP, Projected EOL: 2034-02-16 COO: Philippines, Thailand ECCN: EAR99 RoHS: Compliant Lead time: 12 Weeks, 0 Days Container: Tube In Stock: 36906 and Alternates Available
  • 1 $3.4900
  • 25 $3.2000
  • 100 $2.9000
  • 1,000 $2.6600
  • 5,000 $2.5300
$2.5300 / $3.4900 Buy Now
DISTI # 70414129
RS MICROCHIP PIC18F25J11-I/SS,8BIT PIC MICROCONTROLLER,48MHZ,32KB FLASH,28-PIN SSOP Min Qty: 235 Package Multiple: 1 Lead time: 28 Weeks, 0 Days Container: Bulk 0
  • 235 $3.3400
$3.3400 RFQ
DISTI # PIC18F25J11-ISS
TME IC: PIC microcontroller, 32kB, 48MHz, A/E/USART,MSSP (SPI / I2C) Min Qty: 1 0
  • 1 $3.4400
  • 5 $3.3700
  • 25 $3.2000
  • 47 $3.0100
$3.0100 / $3.4400 RFQ
NAC 32KB Flash, 4KB RAM, 12 MIPS, nanowatt XLP. Package: 28 SSOP .209in TUBE - PIC18 3V Product Line RoHS: Compliant Min Qty: 141 Package Multiple: 47 Container: Tube 0
  • 1 $3.6300
  • 100 $3.2900
  • 500 $3.0900
  • 1,000 $3.0100
$3.0100 / $3.6300 Buy Now
DISTI # PIC18F25J11-I/SS
Avnet Silica MCU 8bit PIC18 PIC RISC 32KB Flash 25V33V 28Pin SSOP Tube (Alt: PIC18F25J11-I/SS) RoHS: Compliant Min Qty: 235 Package Multiple: 47 Lead time: 6 Weeks, 0 Days Silica - 0
Buy Now
DISTI # PIC18F25J11-I/SS
EBV Elektronik MCU 8bit PIC18 PIC RISC 32KB Flash 25V33V 28Pin SSOP Tube (Alt: PIC18F25J11-I/SS) RoHS: Compliant Min Qty: 235 Package Multiple: 47 Lead time: 5 Weeks, 0 Days EBV - 0
Buy Now

US Tariff Estimator: PIC18F25J11-I/SS by Microchip Technology Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

PIC18F25J11-I/SS
Microchip Technology Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for PIC18F25J11-I/SS

PIC18F25J11-I/SS CAD Models

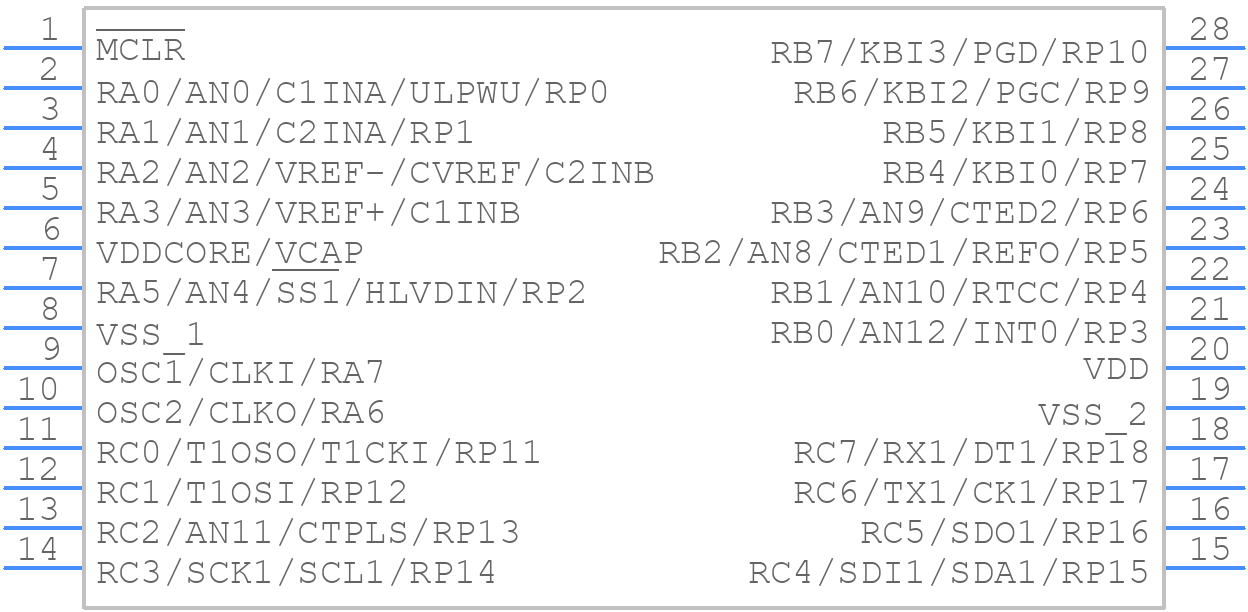

  • Part Symbol

    schematic symbol

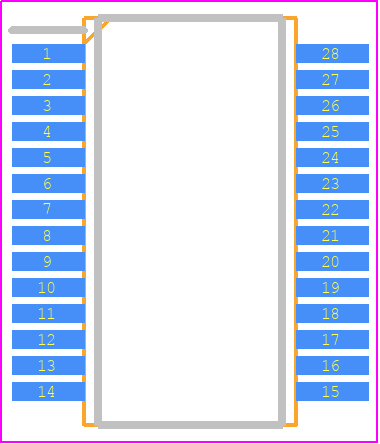

  • Footprint

    pcb footprint

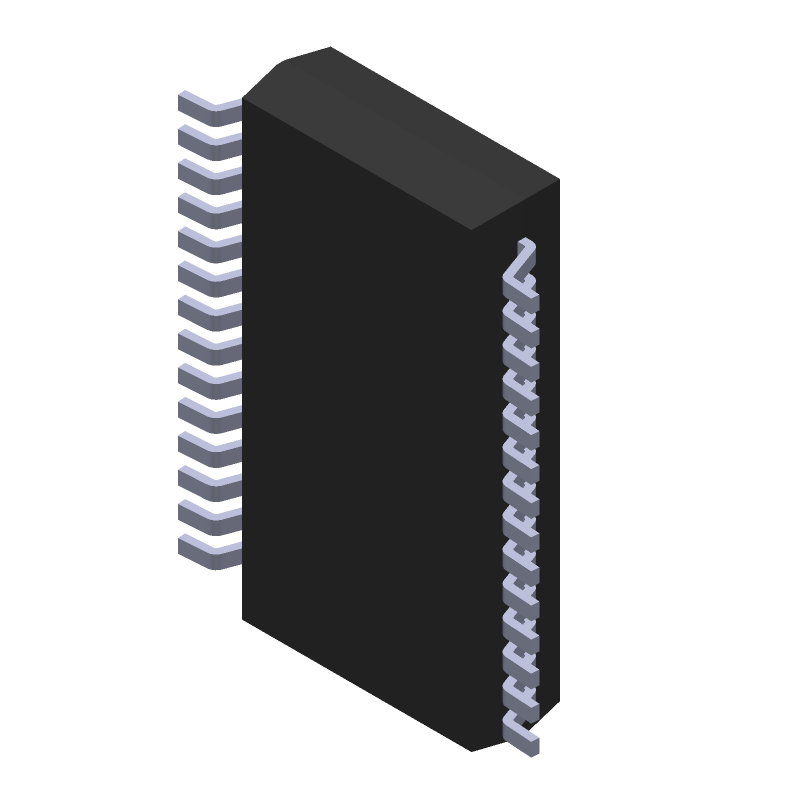

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC18F25J11-I/SS Part Data Attributes

Parametric Data
PIC18F25J11-I/SS Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC18F25J11-I/SS Microchip Technology Inc 32KB Flash, 4KB RAM, 12 MIPS, nanowatt XLP
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Part Package Code SSOP
Package Description Ssop, Ssop28,.3
Pin Count 28
Manufacturer Package Code SSOP-28
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Factory Lead Time 12 Weeks
Has ADC Yes
Address Bus Width
Bit Size 8
Boundary Scan No
CPU Family Pic18
Clock Frequency-Max 48 Mhz
DAC Channels No
DMA Channels No
External Data Bus Width
Format Fixed Point
Integrated Cache No
JESD-30 Code R-PDSO-G28
JESD-609 Code e3
Length 10.2 Mm
Low Power Mode Yes
Moisture Sensitivity Level 1
Number of External Interrupts 4
Number of I/O Lines 23
Number of Serial I/Os 1
Number of Terminals 28
Number of Timers 5
On Chip Data RAM Width 8
On Chip Program ROM Width 16
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels Yes
Package Body Material Plastic/Epoxy
Package Code SSOP
Package Equivalence Code SSOP28,.3
Package Shape Rectangular
Package Style Small Outline, Shrink Pitch
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 3776
ROM (words) 16384
ROM Programmability Flash
Screening Level Ts 16949
Seated Height-Max 2 Mm
Speed 48 Mhz
Supply Current-Max 24.1 Ma
Supply Voltage-Max 3.6 V
Supply Voltage-Min 2.15 V
Supply Voltage-Nom 3 V
Surface Mount Yes
Technology Cmos
Temperature Grade Industrial
Terminal Finish Matte Tin (Sn)
Terminal Form Gull Wing
Terminal Pitch 0.65 Mm
Terminal Position Dual
Width 5.3 Mm
uPs/uCs/Peripheral ICs Type Microcontroller, Risc

Alternate Parts for PIC18F25J11-I/SS

This table gives cross-reference parts and alternative options found for PIC18F25J11-I/SS. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC18F25J11-I/SS, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
PIC18F25J11-I/SO Microchip Technology Inc $3.3136 32KB Flash, 4KB RAM, 12 MIPS, nanowatt XLP PIC18F25J11-I/SS vs PIC18F25J11-I/SO
PIC18F25J11-I/SP Microchip Technology Inc $3.6257 32KB Flash, 4KB RAM, 12 MIPS, nanowatt XLP PIC18F25J11-I/SS vs PIC18F25J11-I/SP
PIC18F25J11T-I/SS Microchip Technology Inc Check for Price 32KB Flash, 4KB RAM, 12 MIPS, nanowatt XLP PIC18F25J11-I/SS vs PIC18F25J11T-I/SS
PIC18F25J11-I/ML Microchip Technology Inc Check for Price 28 PIN, TSMC 0.25 um General PIC18 PIC18F25J11-I/SS vs PIC18F25J11-I/ML
equivalents icon

PIC18F25J11-I/SS Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the PIC18F25J11-I/SS is 48 MHz.

  • The PIC18F25J11-I/SS has 16 KB of flash memory.

  • Yes, the PIC18F25J11-I/SS can operate at 5V, but it is recommended to operate it at 3.3V for optimal performance and power consumption.

  • No, the PIC18F25J11-I/SS does not have built-in USB support. However, it can be used with external USB controllers or modules.

  • The PIC18F25J11-I/SS has 11 ADC channels.
